SAIL-M12WM12W-S-1.5P

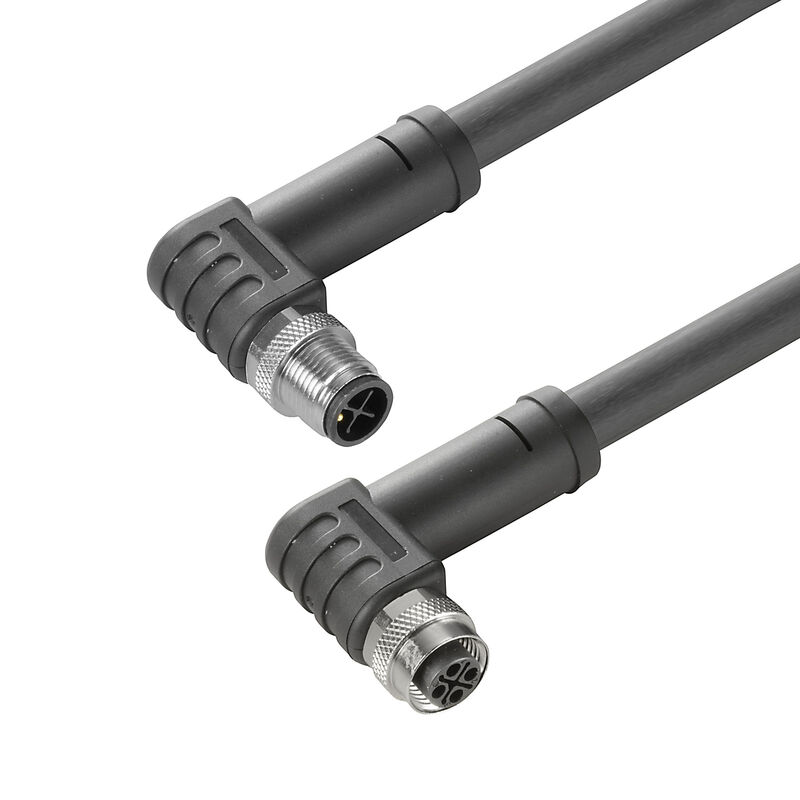

Power cable, Connecting line, M12 / M12, Number of poles : 4 (3 + PE), 1.5 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 2050470150
Lataa tietosivu
Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable Allmänna tekniska data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cULus)
E310075

General ordering data

Ausfuehrung
Power cable, Connecting line, M12 / M12, Number of poles : 4 (3 + PE), 1.5 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
2050470150
Art
SAIL-M12WM12W-S-1.5P
GTIN (EAN)
4050118441802
Qty.
1 items

Dimensions and weights

Net weight
100 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x cable diameter
Bending radius, min., stationary
4 x cable diameter
Cable length
1,5 m
Colour coding
grey
black
brown
Green/yellow
Configurable cable length
No
Core cross-section
1,5 mm²
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Number of poles
4 (3 + PE)
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
9.6 mm ± 0.3 mm
PE function
Yes
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-40...80 °C
Temperature range, stationary
-50...80 °C
Welding spark resistance
No

Allmänna tekniska data

IP67
when screwed in
AF size
13 mm
Coding
S-coded
Connection thread
M12 / M12
LED
No
Material capotas
PUR
Plugging cycles
≥ 100
Superficie de contacto
Gold-plated
Szigetelési ellenállás
108 Ω
Tensione nominale
600 V
Változat
pin, 90° - socket 90°
Диапазон температур корпуса
-40 … +85 ° C
Момент затяжки
M12: 1.0 Nm
Степень загрязнения
3
정격 전류
12 A

Electrical properties

Jmenovité napětí
600 V
Odpor izolace
108 Ω

General standards

Certificate no. (cULus)
E310075
Connector standard
IEC 61076-2-111

Standards

Connector standard
IEC 61076-2-111

Plug, left

Штекер левый
M12, S-coded, IP67, male contact, angled 90°, Plastic, unshielded

Plug, right

Штекер правый
M12, S-coded, IP67, female contact, angled 90°, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
