SAIL-M23GM23G-MM19-7.0U
SAIL-M23GM23G-MM19-7.0U
Dimensioned drawing
Straight socket
SAIL-M23GM23G-MM19-7.0U

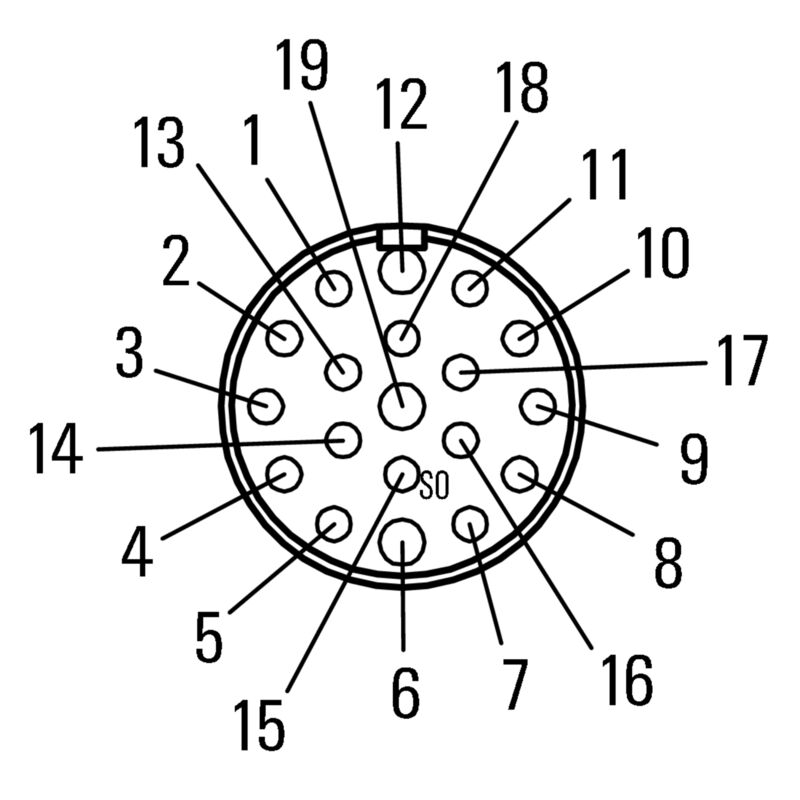

Pole scheme
Male
SAIL-M23GM23G-MM19-7.0U
Pole scheme
Socket
SAIL-M23GM23G-MM19-7.0U

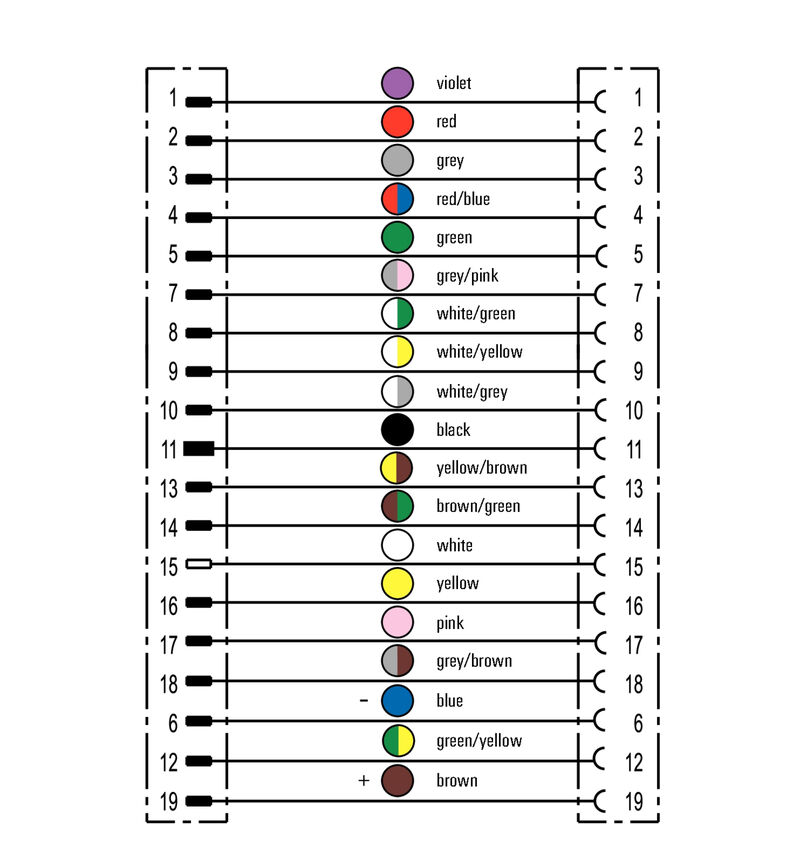

Wiring diagram
SAIL-M23GM23G-MM19-7.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M23GM23G-MM19-7.0U

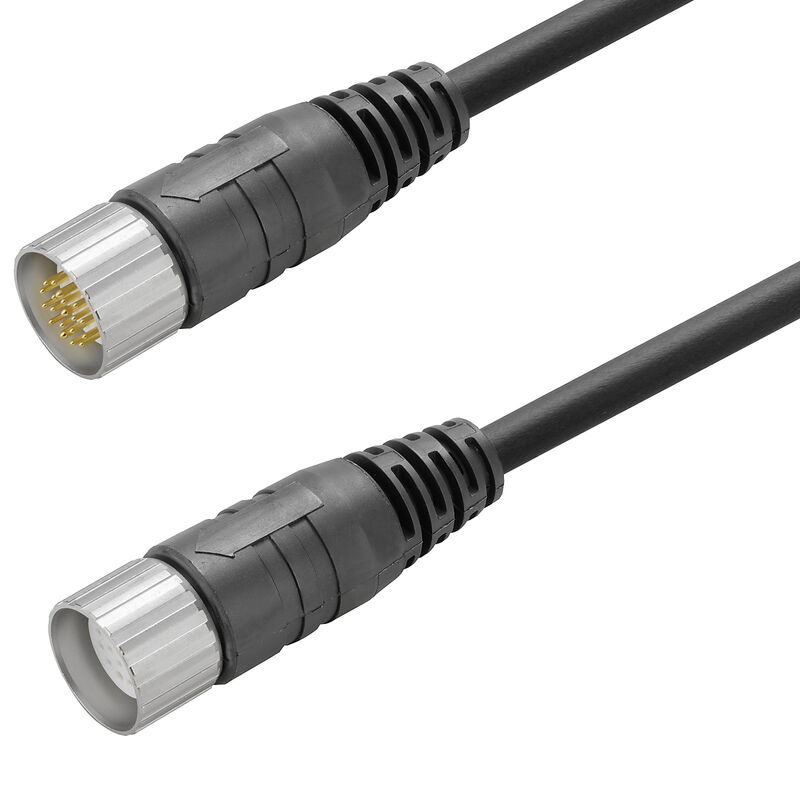

Sensor/actuator line, Connecting line, M23 / M23, Number of poles: 19, 7 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1935510700
Gegevensblad downloaden Product Downloads Engineering Support
Toebehoren 2 Verwante producten 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E486077

General ordering data

Version
Sensor/actuator line, Connecting line, M23 / M23, Number of poles: 19, 7 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1935510700
Type
SAIL-M23GM23G-MM19-7.0U
GTIN (EAN)
4032248603220
Qty.
1 items

Dimensions and weights

Net weight
856,24 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Bending cycles
2 Mio
Bending radius, min., moving
10 x cable diameter
Cable length
7 m
Colour coding
violet
red
black
Green/yellow
Yellow / brown
brown / green
white
yellow
pink
grey / brown
brown
grey
red / blue
green
blue
grey / pink
white / green
white / yellow
white / grey
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Insulation
TPM
Irradiation crosslinked
No
Number of poles
19
Outer cladding in accordance with UL AWM style
21198 (80 °C / 300 V)
Outside diameter
9.1 mm ± 0.3 mm
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No
Wire cross section (Print/Online)
3 x 0.75 mm² + 16 x 0.34 mm²

General technical data

Connection side version
  • Connection side:
    1
  • Connection thread:
    M23
  • Type of contact:
    Pin
  • Type of thread:
    Inner thread
  • Outlet direction:
    straight
  • Connection side:
    2
  • Connection thread:
    M23
  • Type of contact:
    Socket
  • Type of thread:
    External thread
  • Outlet direction:
    straight
Connection side version 1
M23, Pin, Inner thread, straight
Contact surface
Gold-plated
Courant nominal
8 A
Cycles d'enfichage
≥ 50
Degré de pollution
2
Degré de protection
IP67
LED
No
Material capotas
PUR
Materiale anello filettato
Diecast zinc
Nominal voltage
120 V
Resistencia del aislamiento
1012 Ω
Rosca de conexión
M23 / M23
Versión
pin, straight - socket, straight
áthidalt
No
Момент затяжки
M23: 2.5 Nm
결선측 버전 2
M23, Socket, External thread, straight
하우징의 온도 범위
-25…+80 °C

Electrical properties

Insulation resistance
1012 Ω
Nominal voltage
120 V

General standards

Certificate No. (cURus)
E486077

Plug, left

Plug left
M23, IP67, male contact, straight, Plastic, unshielded

Plug, right

Stickkontakt höger
IP67, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
