SAISWS-P-3A-3.5/5-M8
SAISWS-P-3A-3.5/5-M8
Pole scheme
M8 = none

SAISWS-P-3A-3.5/5-M8

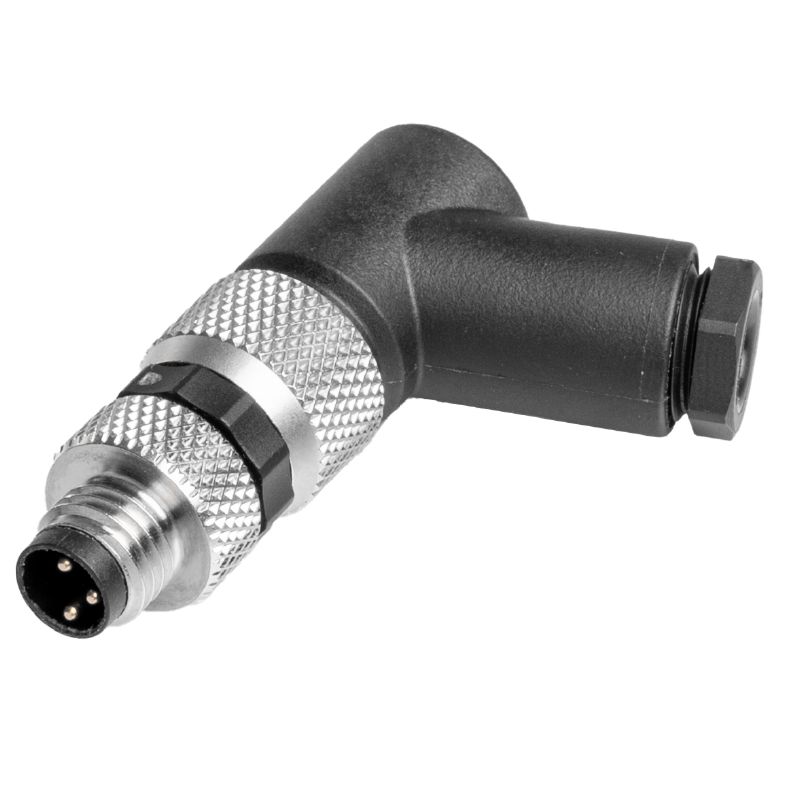

Field attachable connector, M8

Item No. 1416720000
Download data sheet Engineering Support Product Downloads
Related products 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E307231

General ordering data

Version
Field attachable connector, M8
Art.nr.
1416720000
Тип
SAISWS-P-3A-3.5/5-M8
GTIN (EAN)
4050118219944
Qty.
1 items

Dimensions and weights

Net weight
13 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical data customisable plug-in connectors

Cable diameter, max.
5 mm
Cable diameter, min.
3.5 mm
Coding
none
Conexión de apantallamiento
No
Contact surface
Gold-plated
Csatlakozási keresztmetszet, max.
0.5 mm²
Housing main material
CuZn
Insulation resistance
108 Ω
Kontaktausführung
Male
Material del anillo roscado
Diecast zinc
Nominal current
4 A
Nominal voltage
60 V
Number of poles
3
Schutzart
IP67
Sezione di collegamento, min.
0.14 mm²
Steckzyklen
≥ 100
Temperature range of housing
-40 … +85 ° C
Type of connection
Screw connection
Verschmutzungsgrad
3

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
