SCHS4 K
SCHS4 K

SCHS4 K

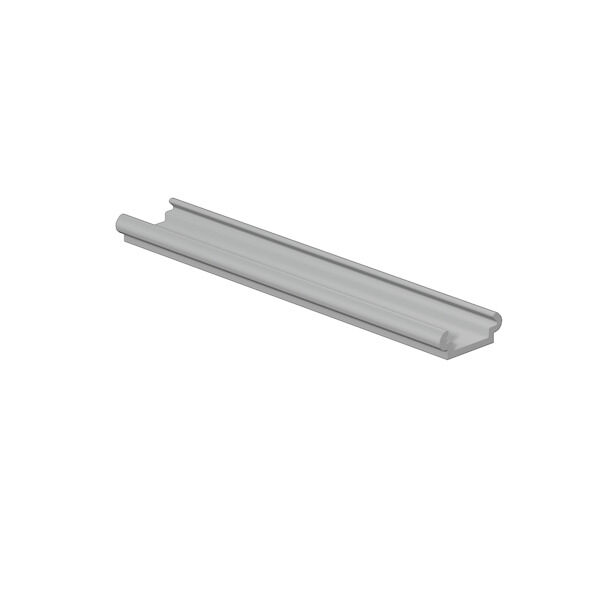

Device markers, Accessories x 10 mm, PVC, Colour: grey, Self-adhesive

Produkt ID 1753460000
Download datablad Product Downloads Engineering Support
Tilbehør 4 Er tilbehør til 4 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Allgemeine Angaben Készülékjelölők Classifications

Approvals

ROHS
Conform

General ordering data

Version
Device markers, Accessories x 10 mm, PVC, Colour: grey, Self-adhesive
Order No.
1753460000
Type
SCHS4 K
GTIN (EAN)
4032248014323
Qty.
50 Styk

Dimensions and weights

Depth
6 mm
Depth (inches)
0,236 inch
Height
1.000 mm
Height (inches)
39,37 inch
Width
10 mm
Breite (inch)
0,394 inch
Net weight
19 g

Temperatures

Einsatztemperaturbereich
-20...80 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Allgemeine Angaben

Adhesive
Cinta adhesiva por ambos lados
Applikation / Hersteller
Autoadhésif
Basic material
PVC
Colour
szürke
Halogen
Nem
Material colour according to resistance code
8
Number of markers per combination
1 MultiCard = Accessori
Number of markers per packaging unit
  • 공급 형태:
    MultiCard
Operating temperature range
-20...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
-20 °C
UL 94 flammability rating
V-0
Version
Self-adhesive
Width
10 mm

Készülékjelölők

Halogen
Nem

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
