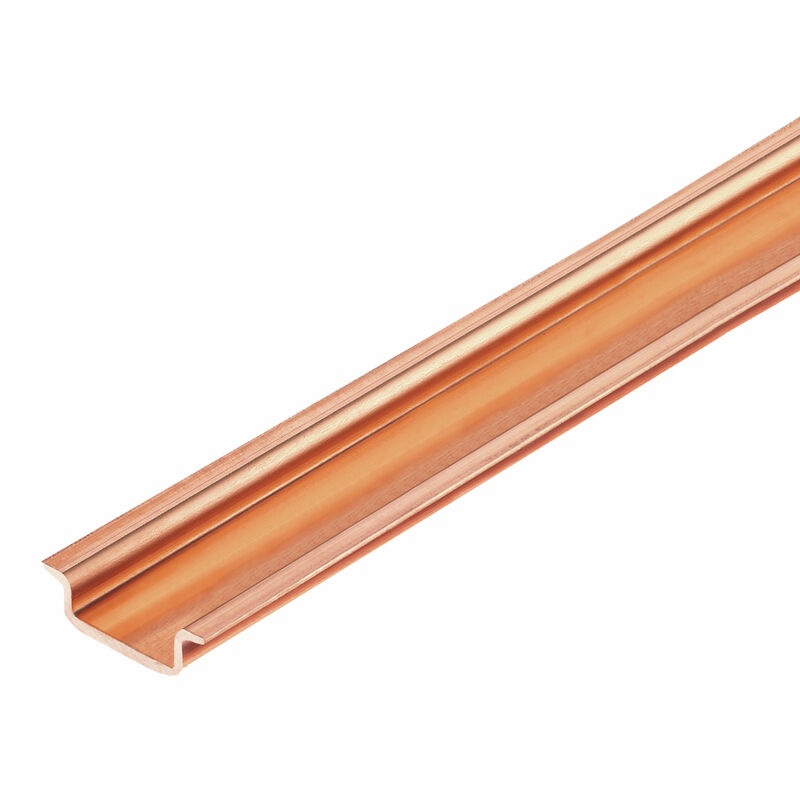

Product image
Similar to illustration

TS 35X7.5/1.0 2M/CU/BK

Terminal rail, Accessories, Copper, untreated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm

Item No. 2731380000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Related products 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Montageskena Classifications

Approvals

ROHS
Conform

General ordering data

Versión
Terminal rail, Accessories, Copper, untreated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm
Référence
2731380000
Typ
TS 35X7.5/1.0 2M/CU/BK
GTIN (EAN)
4050118810882
Qty.
40

Dimensions and weights

Profundidad
7.5 mm
Depth (inches)
0.295 inch
Height
35 mm
Height (inches)
1.378 inch
Larghezza
2,000 mm
Width (inches)
78.74 inch
Net weight
400.463 g

Environmental Product Compliance

RoHS 対応状況
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Montageskena

Basic material
Copper
Length of the terminal rail
  • min.:
    0 mm
  • nominal:
    2,000 mm
  • max.:
    2,000 mm
Mezera mezi štěrbinami
  • min.:
    5 mm
  • nominal:
    11 mm
  • max.:
    2,000 mm
Permitted thermal current for PEN function, max.
150 A
Pre-punched mounting rail
No
Short circuit strength corresponds to E-Cu wire
50 mm²
Short-time withstand current per second according to IEC 60947-7-2
6 kA
Slit length
  • min.:
    2.3 mm
  • nominal:
    25 mm
  • max.:
    40 mm
Slit width
  • min.:
    2.3 mm
  • nominal:
    5.2 mm
  • max.:
    12 mm
Spacing of holes, centre-to-centre
0 mm
Standards
DIN EN 60715
Surface finish
untreated
Thickness
1 mm

Classifications

ETIM 8.0
EC001285
ETIM 9.0
EC001285
ETIM 10.0
EC001285
ECLASS 14.0
27-40-06-02
ECLASS 15.0
27-40-06-02
