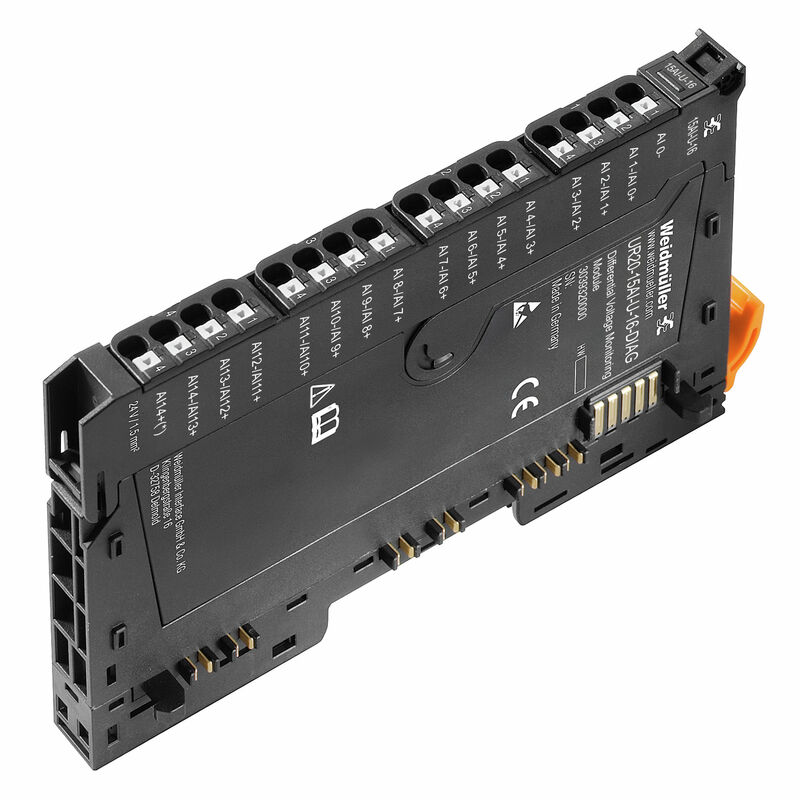

UR20-15AI-U-16-DIAG

Dit product is nog niet beschikbaar.

Product ID 3039320000
Gegevensblad downloaden Product Downloads
Verwante producten 15
General ordering data Dimensions and weights analogue inputs Connection data General data Power supply System data Classifications

General ordering data

Order No.
3039320000
Type
UR20-15AI-U-16-DIAG
GTIN (EAN)
4099987008020
Qty.
1 items

Dimensions and weights

Depth
76 mm
Depth (inches)
2,992 inch
Height
120 mm
Height (inches)
4,724 inch
Width
11,5 mm
Width (inches)
0,453 inch
Net weight
88 g

analogue inputs

Individual channel diagnosis
Yes
Input resistance
≥ 200 kΩ
Measurement range
±3 V / ±5 V / ±10 V / ±30 V / 0...3 V / 0...5 V / 0...10 V / 0…30 V
Module diagnosis
Yes
Number analogue inputs
15
Resolution
16 Bit
Reverse polarity protection
No
Sensor connection
1-wire Connection, for daisy chained battery cell stack; configurable
Sensor supply
No

Connection data

Type of connection
PUSH IN

General data

Mounting rail
TS 35

Power supply

Reverse polarity protection
No
Supply voltage
24 V DC

System data

Connection type
PUSH IN
Galvanic isolation
field to system bus: 800V permanently (PD:2; OV:2; RI)
Module type
Analogue input module
Transmission speed of system bus, max.
48 Mbit

Classifications

ETIM 6.0
EC001596
ETIM 7.0
EC001596
ETIM 8.0
EC001596
ETIM 9.0
EC001596
ETIM 10.0
EC001596
ECLASS 9.0
27-24-26-01
ECLASS 9.1
27-24-26-01
ECLASS 10.0
27-24-26-01
ECLASS 11.0
27-24-26-01
ECLASS 12.0
27-24-26-01
ECLASS 13.0
27-24-26-01
ECLASS 14.0
27-24-26-01
ECLASS 15.0
