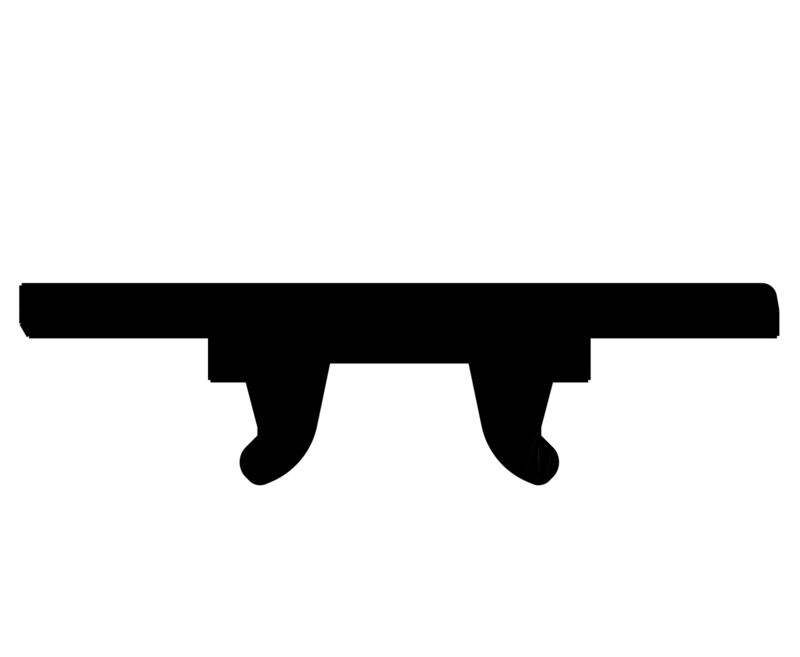

Drawing

WS 12/6 MC NE RT

WS, Klemmenmarkierung, 12 x 6 mm, Raster in mm (P): 6.00 Weidmueller, Allen-Bradley, rot

Ürün No. 1773551686
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 89 İlgili ürünler 8
Tanúsítványok Allgemeine Bestelldaten Dimensions and weights 온도 Umweltanforderungen General data Connector markers Classifications

Tanúsítványok

ROHS
Conforme

Allgemeine Bestelldaten

Version
WS, Klemmenmarkierung, 12 x 6 mm, Raster in mm (P): 6.00 Weidmueller, Allen-Bradley, rot
Order No.
1773551686
Type
WS 12/6 MC NE RT
GTIN (EAN)
4032248141920
Кол.
600 Штука

Dimensions and weights

Height
12 mm
Altura (pulgadas)
0,472 inch
Width
6 mm
폭 (인치)
0,236 inch
Net weight
0,215 g

온도

Operating temperature range
-40...100 °C

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
Nincs 0,1 tömeg% feletti SVHC
Ślad węglowy produktu
  • Kołyska do bramy:
    0.001 kg CO2eq.

General data

Application/manufacturer
Weidmueller
Allen-Bradley
Basic material
Polyamide 66
Colour
red
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Material colour according to resistance code
2
Number of markers per combination
1 MultiCard = Terminal marker
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Printed characters
neutral
UL 94 flammability rating
V-2
Width
6 mm

Connector markers

Pitch in mm (P)
6 mm

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
