Özellikler
| Version | Frequency signal converter, including rail bus supply, Input : Frequency, Output : 0(4)-20 mA, 0(2)-10 V |
| Order No. | 2825020000 |
| Type | ACT20M-FRQ-AO-S |
| GTIN (EAN) | 4064675360834 |
| Qty. | 1 adet |
| Depth | 114,3 mm |
| Depth (inches) | 4,5 inch |
| Height | 112,5 mm |
| Height (inches) | 4,429 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 80 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity | 0...95 % (no condensation) |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2f6dd957-421a-46db-a0c2-cf1609156924 |
| Input frequency |
adjustable
0…100kHz |
| Number of inputs | 1 |

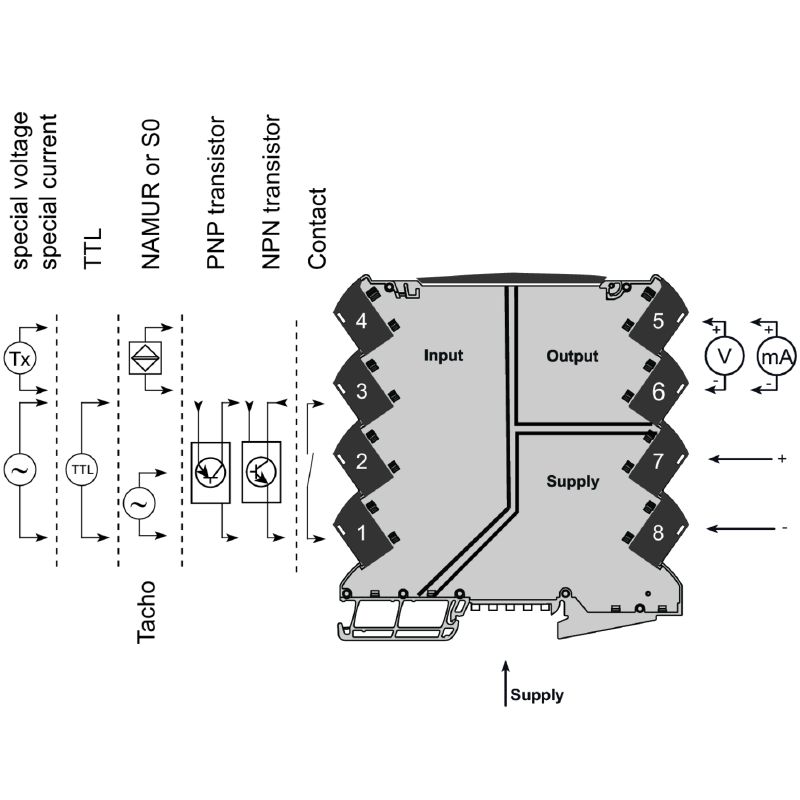

| Sensor |
NAMUR sensor, according to EN60947-5-6
NPN / PNP transistor (trig-level low: ≤4 V high: ≥7 V ) TTL (trig-level low: ≤0.8 V high: ≥2.0 V) Tacho (trig-level low: ≤-50 mV high: ≥+50 mV) Special current (trig-level: user-defined) Special voltage (trig-level: user-defined) S0 (trig-level low: ≤2.2 mA high: ≥9.0 mA ) |
| Sensor supply | 5…17 V |
| Load impedance current | ≤ 600 Ω |
| load impedance voltage | ≥ 10 kΩ |
| Number of outputs | 1 |
| Output current |
0...20 mA
4...20 mA in case of sensor error downscale (3,5 mA) upscale (23 mA) |
| Output signal limit | <28 mA |
| Output voltage, note |
0(2)...10 V
0(1)...5 V 0(0,2)…1 V |
| Type |
active
connected control must be passive |
| Accuracy | Basic accuracy: 0.0002 Hz |
| Configuration |
DIP switch
With FDT/DTM software |
| Galvanic isolation | 3-way isolator |
| Power consumption, max. | 1,2 W |
| Power consumption, typ. | 0,65 W |
| Protection degree | IP20 |
| Rail | TS 35 |
| Step response time |
≤ 30 ms
(0…90% / 100…10% of input level) |
| Temperature coefficient | ≤0,01% of measurement range⁄°C |
| Voltage supply | 24 V DC ±30 % at terminal or via CH20M rail bus |
| EMC standards | IEC 61326-1 |
| Galvanic isolation | 3-way isolator |
| Insulation voltage | 2.5 kVeff /1 min. |
| Pollution severity | 2 |
| Rated voltage |
250 V
300 V |
| Surge voltage category | II |
| Type of connection | Screw connection |
| Tightening torque, min. | 0,4 Nm |
| Tightening torque, max. | 0,6 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section AWG, max. | AWG 14 |
| EMC standards | IEC 61326-1 |
| Standards | IEC 61010-1 |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_307397) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_305022) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2825020000) |
| Software |
[WI-Manager, DTM-Library for online installation](https://mdcop.weidmueller.com/mediadelivery/asset/900_35364)
[Release notes for Weidmueller FDT-DTM Software version](https://mdcop.weidmueller.com/mediadelivery/asset/900_248446) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_307393) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002918 |
| ETIM 7.0 | EC002918 |
| ETIM 8.0 | EC002918 |
| ETIM 9.0 | EC002918 |
| ECLASS 9.0 | 27-21-01-28 |
| ECLASS 9.1 | 27-21-01-28 |
| ECLASS 10.0 | 27-21-01-28 |
| ECLASS 11.0 | 27-21-01-28 |
| ECLASS 12.0 | 27-21-01-28 |
| ECLASS 13.0 | 27-21-01-28 |
| ECLASS 14.0 | 27-21-01-28 |
| ROHS | Conform |
