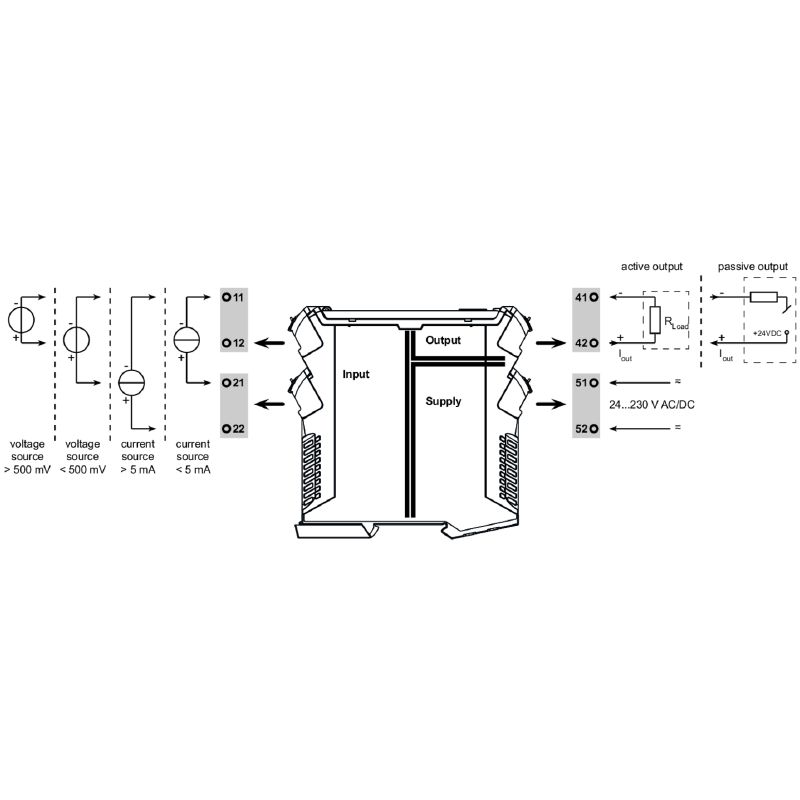

Wiring
ACT20P-PRO DCDC II-P
ACT20P-PRO DCDC II-P
ACT20P-PRO DCDC II-P
Dimensioned drawing
ACT20P-PRO DCDC II-P
ACT20P-PRO DCDC II-P
ACT20P-PRO DCDC II-P
ACT20P-PRO DCDC II-P

ACT20P-PRO DCDC II-P

Analogue isolating amplifier, 24…230 V AC/DC power supply, Input : I/U universal, Output : I/U universal

Produkt ID 1481960000
Åbn i konfiguratoren
Download datablad Engineering Support Software Support Product Downloads
Tilbehør 2 Enkeltdele 1 Anvendte produkter 8
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Input Output Display Общие данные Insulation coordination Dati per applicazioni Ex (ATEX) Connection data Part description Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
Approvals
CULUS;GERMLLOYD;
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E314307
Certificate no. (cULusEX)
E345958

General ordering data

Version
Analogue isolating amplifier, 24…230 V AC/DC power supply, Input : I/U universal, Output : I/U universal
Order No.
1481960000
Type
ACT20P-PRO DCDC II-P
GTIN (EAN)
4050118291025
Qty.
1 Styk

Dimensions and weights

Depth
113,7 mm
Глубина (дюймов)
4,476 inch
Height
127,1 mm
Height (inches)
5,004 inch
Width
12,5 mm
Width (inches)
0,492 inch
Net weight
130 g

Temperatures

Operating temperature
-20 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)

Probability of failure

SIL in compliance with IEC 61508
None
MTBF
76 a

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Input current
configurable
± 0.1mA...± 100 mA
Measuring range min. 200 µA
Input resistance, current
<5 mA: approx. 100 Ω; >5 mA: approx. 5 Ω
Input resistance, voltage
≥ 1 MΩ
Input signal
Current or voltage input is selectable
Input voltage
configurable
±40 mV…±300 V
Measuring range. min 40 mV
(Example: 0...+40 mV or -40...0 mV or -20....+20 mV or….)
Measuring range, max: 300 V
Number inputs
1
Sensor
4-vodičový senzor (s vlastním napájením)

Output

Cut-off frequency (-3 dB)
> 10 kHz/ <10 Hz
Load impedance current
≤ 600 Ω
load impedance voltage
≥ 1 kΩ
Offset current
20 µA
Offset voltage
<10 mV
Output current
configurable
0...±20 mA
Output voltage, note
Adjustable
0...±10 V
Type
active (as current source) or passive (as current sink)
connected control can be active / passive

Display

Display value
current measured value
Configuration data
Type
Affichage par matrice de points avec téléscripteur, vert

Общие данные

Accuracy
<0.05 % of measuring range
Coeficiente de temperatura
≤0.01% of the output measurement range ⁄ °C
Configuration
DIP switch
or via display and push-buttons
Nominal power consumption
2 VA
Power consumption
≤2.3 W
Protection degree
IP20
Supply voltage
24…230 V DC ±20 %
24…230 V AC ±10 % @ 48…62 Hz
Tragschiene
TS 35
Üzemi magasság
≤ 2000 m
Čas odezvy
≤50 µs

Insulation coordination

EMC standards
EN 61326-1
Galvanic isolation
3-way isolator
between input ⁄ output ⁄ supply
Impulse withstand voltage
5 kV (1.2/50 µs)
Insulation voltage
4 kVeff
input / output / power supply
Pollution severity
2
Rated voltage
600 V
Surge voltage category
II

Dati per applicazioni Ex (ATEX)

마킹
II 3 G Ex nA IIC T4 Gc

Connection data

Type of connection
PUSH IN
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²

Part description

Descrizione del prodotto
The universally configurable DC isolating amplifier ACT20P-PRO DCDC II isolates and converts analogue signals. An analogue input signal (current or voltage) is linearly converted into an analogue output signal (current or voltage) and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation).

Properties
  • universal wide-range voltage supply
  • universally configurable via DIP switch or via the LED display using control buttons
  • Active or passive signal output
  • Operating status display on a front panel LED
  • Galvanic 3-way isolation between input, output and supply.


Classifications

ETIM 8.0
EC002653
ETIM 9.0
EC002653
ETIM 10.0
EC002653
ECLASS 14.0
27-21-01-20
ECLASS 15.0
27-21-01-20
