CABTITE EP A 24/26 GY
CABTITE EP A 24/26 GY

CABTITE EP A 24/26 GY

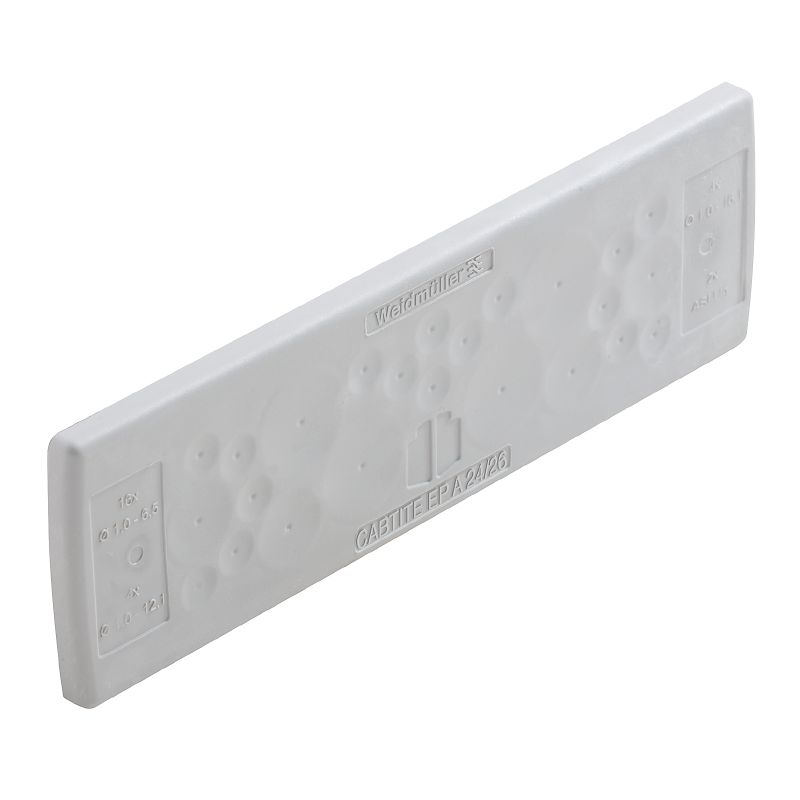

Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 44 mm, Width: 142 mm, Depth: 12 mm, -40 °C…90 °C, IP54

Tuotteen tunnus 2743590000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 1 Samankaltaiset tuotteet 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Number of connectable cables Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 44 mm, Width: 142 mm, Depth: 12 mm, -40 °C…90 °C, IP54
Order No.
2743590000
Type
CABTITE EP A 24/26 GY
GTIN (EAN)
4064675123309
Qty.
10 items

Dimensions and weights

Profondeur
12 mm
Depth (inches)
0,472 inch
Magasság
44 mm
Height (inches)
1,732 inch
Szélesség
142 mm
Width (inches)
5,591 inch
Wall thickness, min.
1,5 mm
Wall thickness, max.
2,5 mm
Net weight
42,4 g

Temperatures

Üzemi hőmérséklet
-40 °C...90 °C

Environmental Product Compliance

Состояние соответствия RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Basic material
TPE
Protection class (UL)
Type 1
Type 12
Protection degree
IP54
Silicone
No
UL 94 flammability rating
V-0

Number of connectable cables

Type of mounting
Snap-on
Number of connectable cables
26
Cable entries
  • Number:
    16
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    6,5 mm
  • Cable type:
    Round cable
  • Number:
    4
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    12,1 mm
  • Cable type:
    Round cable
  • Number:
    4
  • Cable diameter, min.:
    1 mm
  • Cable diameter, max.:
    16,1 mm
  • Cable type:
    Round cable
  • Number:
    2
  • Cable type:
    ASI

Classifications

ETIM 8.0
EC002624
ETIM 9.0
EC002624
ETIM 10.0
EC002624
ECLASS 14.0
27-18-28-15
ECLASS 15.0
27-18-28-15
