Özellikler

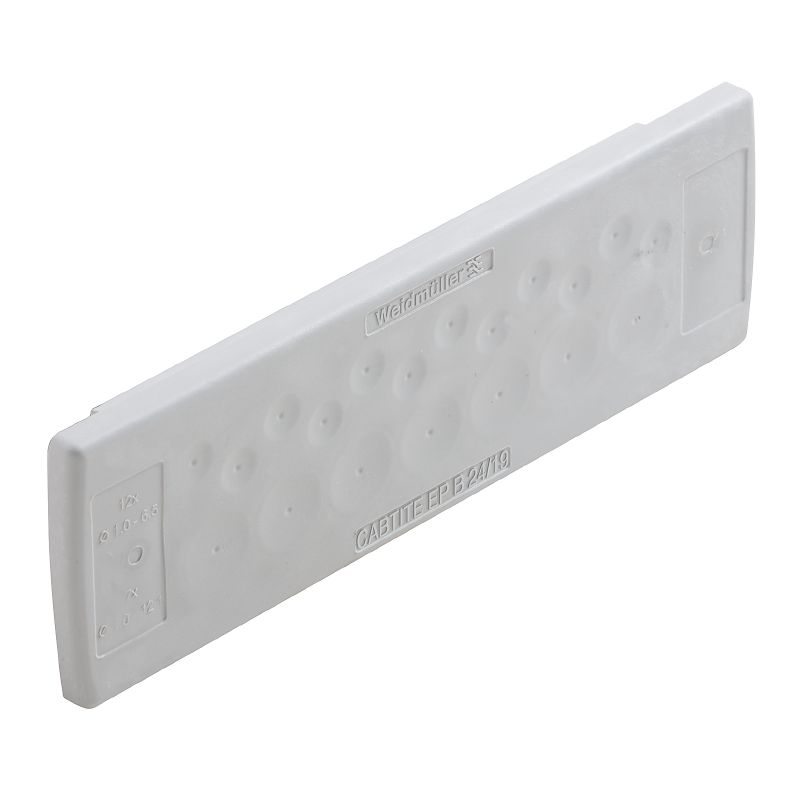

| Version | Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 44 mm, Width: 142 mm, Depth: 12 mm, -40 °C…90 °C, IP54 |
| Order No. | 2743670000 |
| Type | CABTITE EP B 24/19 GY |
| GTIN (EAN) | 4064675123385 |
| Qty. | 10 adet |

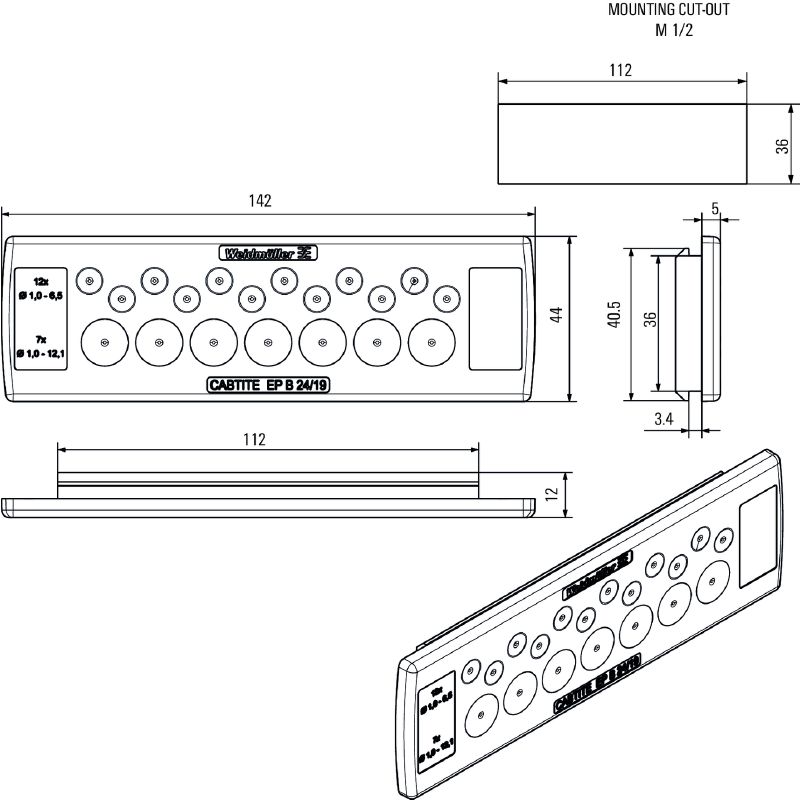

| Depth | 12 mm |
| Depth (inches) | 0,472 inch |
| Height | 44 mm |
| Height (inches) | 1,732 inch |
| Width | 142 mm |
| Width (inches) | 5,591 inch |
| Wall thickness, min. | 2,5 mm |
| Wall thickness, max. | 4 mm |
| Net weight | 49,2 g |
| Operating temperature | -40 °C...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | TPE |
| Protection class (UL) |
Type 1
Type 12 |
| Protection degree | IP54 |
| Silicone | No |
| UL 94 flammability rating | V-0 |
| Type of mounting | Snap-on |
| Number of connectable cables | 19 |
| Cable entries |
|
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Cabtite EP - DoC DE PS2483](https://mdcop.weidmueller.com/mediadelivery/asset/900_198864) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_199658) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2743670000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2743670000) |
| User Documentation | [INSTR CABTITE EP DE/EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_200399) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002624 |
| ETIM 7.0 | EC002624 |
| ETIM 8.0 | EC002624 |
| ETIM 9.0 | EC002624 |
| ECLASS 9.0 | 27-18-28-15 |
| ECLASS 9.1 | 27-18-92-65 |
| ECLASS 10.0 | 27-18-28-15 |
| ECLASS 11.0 | 27-18-28-15 |
| ECLASS 12.0 | 27-18-28-15 |
| ECLASS 13.0 | 27-18-28-15 |
| ECLASS 14.0 | 27-18-28-15 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223801 |
