Eigenschappen

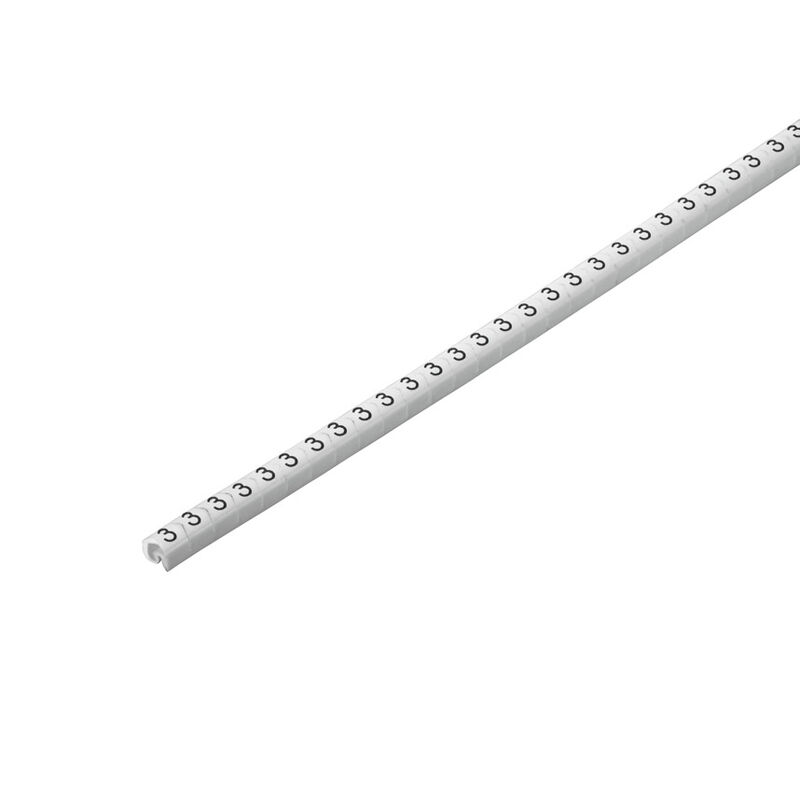

| Version | CableLine, Conductor and cable markers, 1.3 - 3 mm, 30 x 3.4 mm, To customer specification |
| Order No. | 1912580000 |
| Type | CLI C 02-30 SDR SG |
| GTIN (EAN) | 4032248542420 |
| Qty. | 100 items |
| Depth | 3,5 mm |
| Depth (inches) | 0,138 inch |
| Height | 30 mm |
| Height (inches) | 1,181 inch |
| Width | 3,4 mm |
| Width (inches) | 0,134 inch |
| Net weight | 1,59 g |
| Operating temperature range | 80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | To customer specification |
| Colour of printing | black |
| Halogen | Yes |
| Material | PVC, soft, without Cadmium |
| Operating temperature range | 80 °C |
| Operating temperature range, max. | 80 °C |
| Orientation of print | horizontal |
| Printed characters | To customer specification |
| Printing | Custom printing |
| Printing method | Ink jet technology |
| Type of printing | To customer specification |
| UL 94 flammability rating | V-0 |
| Version | Loop |
| Width | 3,4 mm |
| Conductor cross-section, max. | 1,5 mm² |
| Conductor cross-section, min. | 0,2 mm² |
| Conductor O.D. | 1.3 - 3 mm |
| Conductor O.D., max. | 3 mm |
| Conductor O.D., min. | 1,3 mm |
| Cross-section for connected wire | 0.2 - 1.5 mm² |
| Halogen | Yes |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1912580000) |
| Product Change Notification |
[PCN CableLine_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_49687)
[PCN CableLine_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_49688) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
