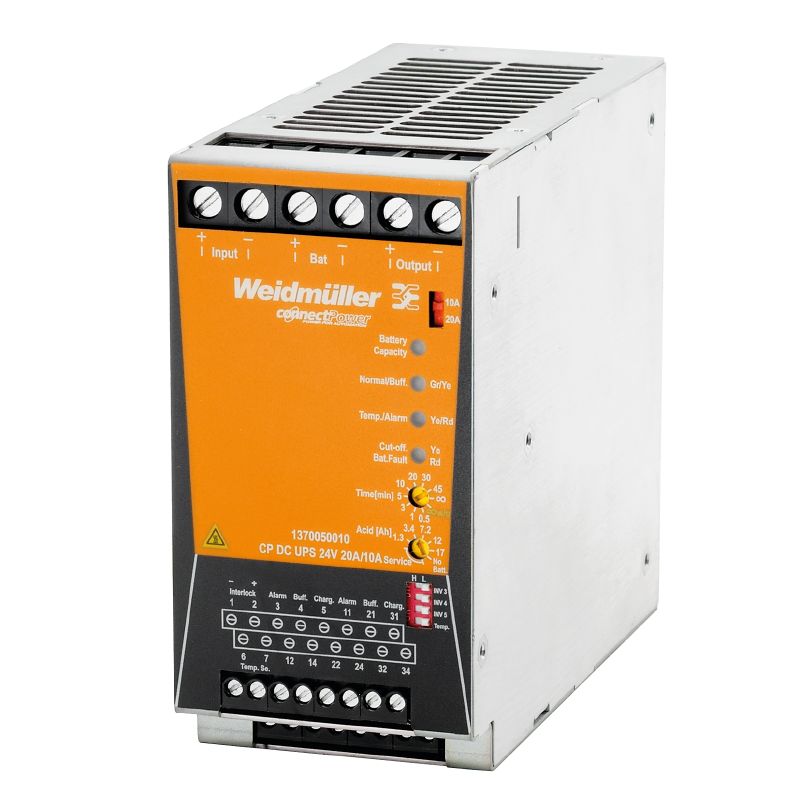

CP DC UPS 24V 20A/10A

CP DC UPS 24V 20A/10A

Veri sayfasını indir İlgili ürünler

CP DC UPS 24V 20A/10A

UPS control unit

Ürün No. 1370050010

Özellikler

General ordering data

Version	UPS control unit
Order No.	1370050010
Type	CP DC UPS 24V 20A/10A
GTIN (EAN)	4050118202335
Qty.	1 adet

Dimensions and weights

Depth	150 mm
Depth (inches)	5,905 inch
Height	130 mm
Height (inches)	5,118 inch
Width	66 mm
Width (inches)	2,598 inch
Net weight	1.139 g

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...70 °C
Humidity	5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7a, 7cI
REACH SVHC	Lead 7439-92-1
SCIP	d6c68c9e-3e33-4fa9-920e-331473bf0422

Parallel connection option	yes, max. 2
Rated voltage	24 V
Storage medium	1.3 Ah 3.4 Ah 7.2 Ah 12 Ah 17 Ah Selectable with rotary switch

Integrated battery charger

Battery availability test	every minute
Charging current	0,15 cA
Charging feature	IU characteristic curve
Charging voltage (temperature compensated)	27, 48 V @ 20°C
Temperature coefficient	- 48 mV / °C

Operating interfaces and control inputs

Function DIP switch	Inversion of transistor outputs Operation without temperature probe
Output current selector switch	20 A 10 A
Remote disconnection (Interlock)	Yes
Selector switch battery	1.3 Ah 3.4 Ah 7.2 Ah 12 Ah 17 Ah No Battery Service
Selector switch buffer times	0.5 min 1 min 3 min 5 min 10 min 20 min 30 min 45 min ∞ ∞ w/0
Temperature probe	NTC 100 kΩ

DC current consumption	max. 200 mA (without battery) max. 0.5 A (with fully charged battery)
DC input voltage range	20...30 V DC
Input current	≤ 13A (for 10A) ≤ 23A (for 20A)
Input fuse (internal)	Yes
Max. approved input current	28 A
Rated input voltage	24 V DC
Wire connection method	Screw connection

Continuous output current @ U_Nominal	24 A @ 45 °C 20 A @ 60 °C 15 A @ 70 °C
Nominal output current for U_nom	20 A @ 60 °C
Output current, max.	24 A
Output voltage, note	Vo = Vin - 0.2 V normal operation (Imax) Vo = Vin - 0.3 V battery supply (I max)
Overload protection	Yes
Parallel connection option	yes, max. 2 Yes, with diode module
Protection against inverse voltage	Yes
Rated output voltage	24 V DC ± 1 %
Residual ripple, breaking spikes	< 50 mV_PP @ 24 V DC, I_N
Temperature coefficient	- 48 mV / °C
Temperature probe	NTC 100 kΩ
Wire connection method	Screw connection

Buffer times	Depending on the connected battery
Clip-in foot	metal
Current limiting	> 120% I_N
Degree of efficiency	≥ 96% normal mode, battery is being charged ≥ 98% normal mode, battery is charged ≥ 98% buffer mode
Housing version	Metal, corrosion resistant
Humidity	5...95 %, no condensation
Mounting position, installation notice	Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
MTBF	According to Standard: SN 29500 Operating time (hours), min.: 1.860.000 h Ambient temperature: 25 °C Input voltage: 24 V Output power: 240 W Duty cycle: 100 % According to Standard: SN 29500 Operating time (hours), min.: 906.400 h Ambient temperature: 40 °C Input voltage: 24 V Output power: 240 W Duty cycle: 100 %
Power loss	< 10 W
Protection against reverse voltages from the load	32…34 V DC
Protection degree	IP20
Short-circuit protection	Yes
Storage medium	1.3 Ah 3.4 Ah 7.2 Ah 12 Ah 17 Ah Selectable with rotary switch
Surge voltage category	III

EMC / shock / vibration

Interference immunity test acc. to	EN 61000-4-2 (ESD)\|EN 61000-4-3 and EN 61000-4-8 (fields)\|EN 61000-4-4 (burst)\|EN 61000-4-5 (surge)\|EN 61000-4-6 (conducted)\|EN 61000-4-11 (dips)
Noise emission in accordance with EN55032	Class B
Shock resistance IEC 60068-2-27	30 g in all directions
Vibration resistance IEC 60068-2-6	2.3 g

Insulation coordination

electrical isolation, input-earth	1 kV
electrical isolation, output-earth	1 kV
Insulation voltage	1 kV DC
Pollution severity	2
Protection class	III, with no ground connection, for SELV
Surge voltage category	III

Electrical safety (applied standards)

Electrical machine equipment	Acc. to EN60204
For use with electronic equipment	Acc. to EN50178 / VDE0160
Protection against dangerous shock currents	Acc. to VDE0106-101
Protective separation / protection against electrical shock	VDE0100-410 / acc. to DIN57100-410
Safety transformers for switch-mode power supplies	According to EN 61558-2-16

Connection data (input)

Conductor cross-section, AWG/kcmil , max.	6
Conductor cross-section, AWG/kcmil , min.	26
Conductor cross-section, flexible , min.	0,5 mm²
Conductor cross-section, rigid , max.	16 mm²
Conductor cross-section, rigid , min.	0,5 mm²
Reverse polarity protection	Yes
Tightening torque, max.	1,5 Nm
Tightening torque, min.	1,2 Nm
Wire connection cross section, flexible (input), max.	16 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.	6
Conductor cross-section, AWG/kcmil , min.	26
Conductor cross-section, flexible , max.	16 mm²
Conductor cross-section, flexible , min.	0,5 mm²
Conductor cross-section, rigid , max.	16 mm²
Conductor cross-section, rigid , min.	0,6 mm²
Reverse polarity protection	Yes
Tightening torque, max.	1,5 Nm
Tightening torque, min.	1,2 Nm

Connection data (signal)

Wire connection cross-section, flexible (signal), max.	1,5 mm²
Wire connection cross-section, flexible (signal), min.	0,2 mm²
Wire connection method	Screw connection
Wire cross-section, AWG/kcmil , max.	15
Wire cross-section, AWG/kcmil , min.	30
Wire cross-section, solid , max.	1,5 mm²
Wire cross-section, solid , min.	0,2 mm²

Floating contact	Yes
Status indicator	Three-colour LED: Battery capacity >85% green, >40% yellow, >20% red, <20% red (Flashing) Green/yellow LED: normal / buffering Yellow/red LED: temperature alarm / alarm Yellow/red LED: switch-off / battery fault
Status relay (max. load)	Fault (alarm) (30 V AC/DC 0.1 A) Battery operation (buff.) (30 V AC/DC 0.1 A) Laden (Charg.) (30V AC/DC 0,1A)
Transistor outputs (24&...27 V DC max. load 150 mA)	Battery operation (buff.) Charging Fault (alarm)

Approval/Certificate/Document of Conformity	[UL 508 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306195) [UL 60950 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306196) [DNV Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306198) [BV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_308050) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37676)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204433) [Quick start guide -- QSG0009 PS-Selection Guide AC Backup Guide for AC backup for power supplies](https://mdcop.weidmueller.com/mediadelivery/asset/900_246228)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1370050010)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1370050010)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1370050010&norm=0)
User Documentation	[Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_68801)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002850
ETIM 7.0	EC002850
ETIM 8.0	EC002850
ETIM 9.0	EC002850
ECLASS 9.0	27-04-06-92
ECLASS 9.1	27-04-92-01
ECLASS 10.0	27-04-06-92
ECLASS 11.0	27-04-06-92
ECLASS 12.0	27-04-06-92
ECLASS 13.0	27-04-06-92
ECLASS 14.0	27-04-06-92

Approvals	![BURVER](/picture/BURVER.gif) ![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![TUEV](/picture/TUEV.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E258476
