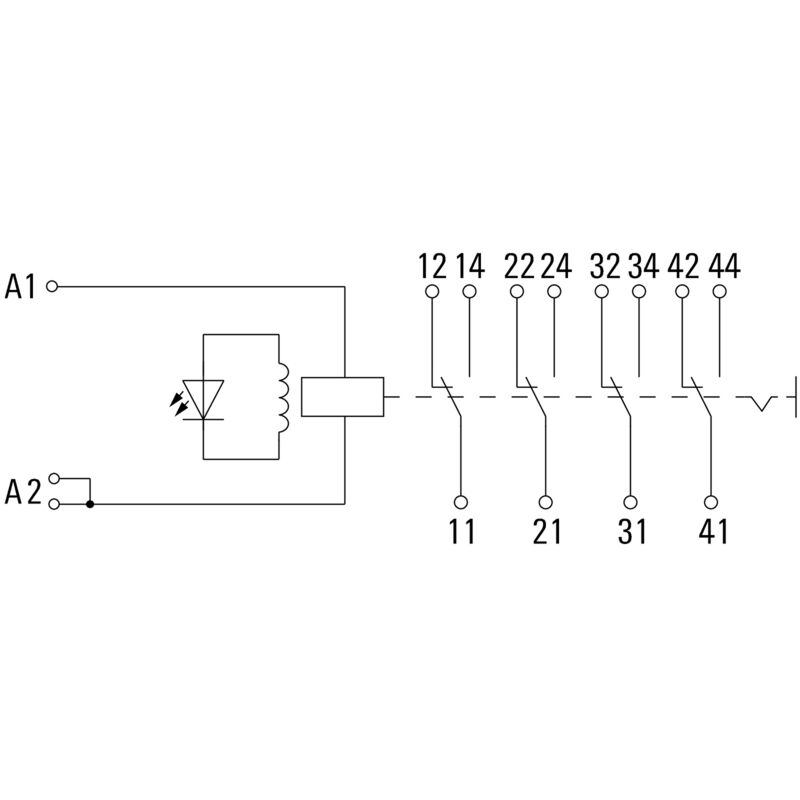

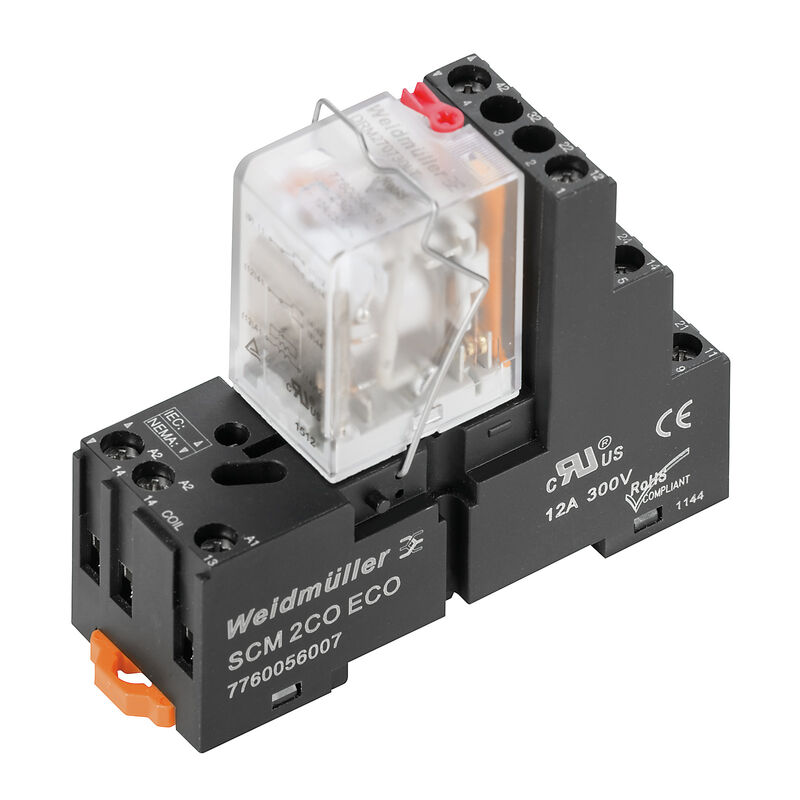

DRMKIT 230VAC 4CO LD/PB
D-SERIES DRM, Relay module, Number of contacts: 4, CO contact AgNi flash gold-plated, Rated control voltage: 230 V AC, Continuous current: 5 A, Screw connection, Test button available: Yes
Ürün No.
1542540000
Özellikler
| Version | D-SERIES DRM, Relay module, Number of contacts: 4, CO contact AgNi flash gold-plated, Rated control voltage: 230 V AC, Continuous current: 5 A, Screw connection, Test button available: Yes |
| Order No. | 1542540000 |
| Type | DRMKIT 230VAC 4CO LD/PB |
| GTIN (EAN) | 4050118347142 |
| Qty. | 10 adet |
| Depth | 66,8 mm |
| Depth (inches) | 2,63 inch |
| Height | 79,9 mm |
| Height (inches) | 3,146 inch |
| Width | 27,2 mm |
| Width (inches) | 1,071 inch |
| Net weight | 93,35 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...55 °C |
| REACH SVHC | / |
| Rated control voltage | 230 V AC |
| Rated current AC |
6.1 mA (50 Hz)
5.2 mA (60 Hz) |
| Power rating | 1.0...1.2VA (60HZ) |
| Coil resistance | 15000 Ω ± 10 % |
| Coil tolerance | 10 % |
| Status indicator | red LED |
| Rated switching voltage | 250 V AC |
| Continuous current | 5 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Min. switching power |
10 mA @ 12 V
100 mA @ 5 V |
| Inrush current | 10 A / 50 ms |
| AC switching capacity (resistive), max. | 1250 VA |
| DC switching capacity (resistive), max. | 120 W @ 24 V |
| Switch-on delay | <20 ms |
| Switch-off delay | <20 ms |
| Contact type | 4 CO contact (AgNi flash gold-plated) |
| Mechanical service life | 20 x 106 switching cycles |
| Rail | TS 35 |
| Test button available | Yes |
| Version of test button |
Lockable test button
Momentary test button |
| Mechanical switch position indicator | Yes |
| Colour | black |
| UL94 flammability rating component |
|
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Insulating material group | C |
| Clearance and creepage distances for control side - load side | ≥ 5.5 mm |
| Dielectric strength for control side - load side | 1.8 kVeff /1 min. |
| Dielectric strength of neighbouring contacts | 1 kVeff / 1 min |
| Dielectric strength of open contact | 1 kVeff / 1 min |
| Impulse withstand voltage | 4.8 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate no. (cURus) relay | E312083 |
| Certificate no. (cURus) base | E312083 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 7 mm |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,7 Nm |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0,5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1 mm² |
| Blade size | size PH1 |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35466) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54339) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1542540000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1542540000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1542540000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| Approvals |   |
| ROHS | Conform |
