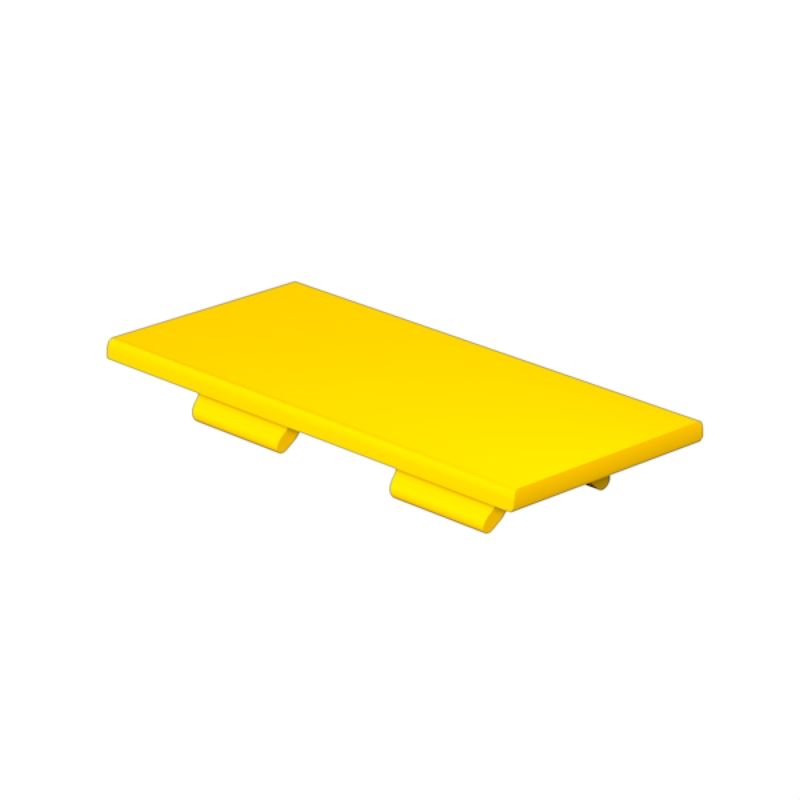

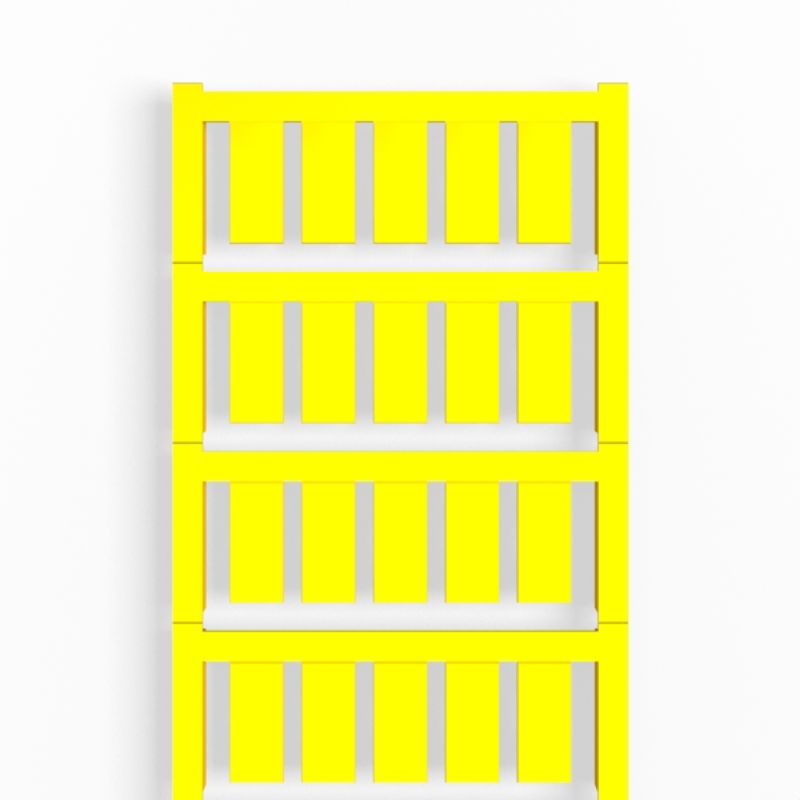

ESG, Device markers x 20 mm, PA 66, Colour: yellow, pluggable

Ürün No. 1010860000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
ESG, Device markers x 20 mm, PA 66, Colour: yellow, pluggable
Order No.
1010860000
Tipo
ESG 9/20 L MC NE GE
GTIN (EAN)
4032248715961
Qty.
200 adet

Dimensions and weights

Profundidad
0.8 mm
Depth (inches)
0.031 inch
Altura
9 mm
Height (inches)
0.354 inch
Anchura
20 mm
Width (inches)
0.787 inch
Net weight
0.54 g

Temperatures

plage de température d'utilisation
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.004 kg CO2 eq.

General data

Antal märkningar per förpackningsenhet
  • Form of supply:
    MultiCard
Application/manufacturer
Lumberg
Colore materiale secondo codice internazionale delle resistenze
4
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Grundläggande material
PA 66
Number of markers per combination
1 MultiCard = Device markers
Operating temperature range, max.
100 °C
Skrivna tecken
without
Temperaturområde för användning
-40...100 °C
UL 94 가연성 등급
V-2
zakres temperatur roboczych, min.
-40 °C
Галогены
No
Цветовой код
yellow
너비
20 mm
버전
pluggable

Device markers

할로겐
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
