Özellikler

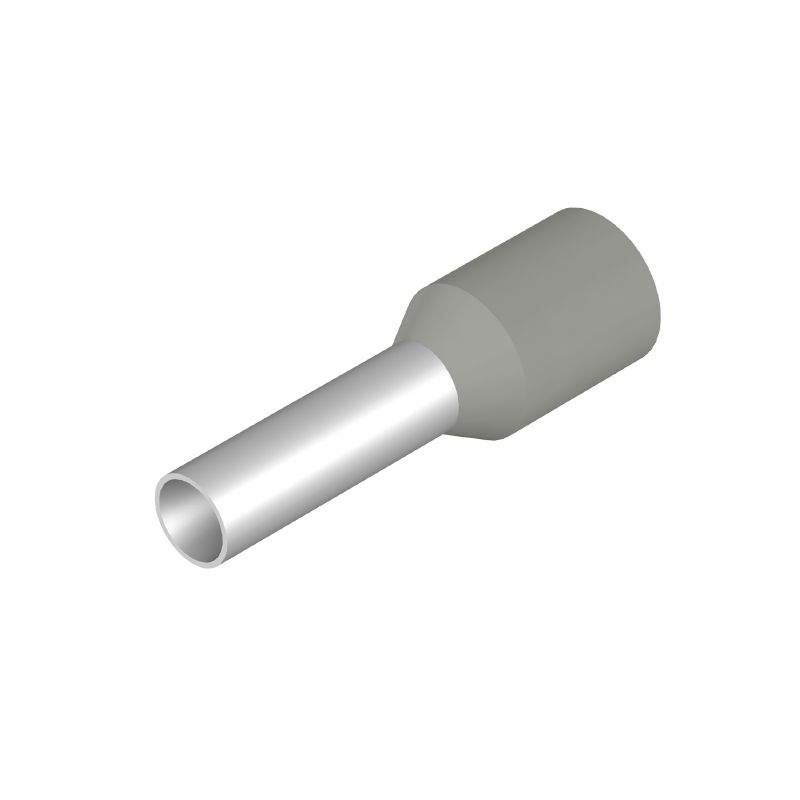

| Version | Wire-end ferrule, Standard, 12 mm, 10 mm, grey |
| Order No. | 9026010000 |
| Type | H4,0/18 GR SV |
| GTIN (EAN) | 4008190117382 |
| Qty. | 250 adet |
| Packaging | Multipack bag |
| Net weight | 0,29 g |
| Description of article | Wire end ferrule with plastic collar, grey |
| Version | Standard |
| Collar diameter (D2) | 4,8 mm |
| Colour code | Weidmueller |
| Conductor cross-section | 4 mm² |
| Contact surface diameter (D1) | 2,8 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 18 mm |
| Metal sleeve thickness (S1) | 0,2 mm |
| Military designation | T 20A 019 A |
| Plastic collar thickness (S2) | 0,3 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 12 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55444) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9026010000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9026010000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9026010000&norm=0) |
| User Documentation |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E499744 |
aksesuarıdır
-
Ürün No.:9011460000Ambalaj birimi:1 adet
Pressing tool, Crimping tool for wire-end ferrules, 0.25mm², 6mm², Trapezoidal indentation crimp
-
Ürün No.:9012500000Ambalaj birimi:1 adet
Pressing tool, Crimping tool for wire-end ferrules, 0.5mm², 4mm², Trapezoidal crimp
-
Ürün No.:0567300000Ambalaj birimi:1 adet
Pressing tool, Crimping tool for wire-end ferrules, 0.5mm², 6mm², Square crimp
-
Ürün No.:1444050000Ambalaj birimi:1 adet
Pressing tool, Crimping tool for wire-end ferrules, 0.14mm², 6mm², Trapezoidal crimp
-
Ürün No.:9014350000Ambalaj birimi:1 adet
Pressing tool, Crimping tool for wire-end ferrules, 0.14mm², 6mm², Trapezoidal crimp
-
Ürün No.:1470940000Ambalaj birimi:1 adet
Assortment crimping tool, Crimping tool: PZ 6 Roto L, Crimping range, min.: 0.5, Colour code: Weidmüller
-
Ürün No.:9017900000Ambalaj birimi:1 adet
Crimping tool for wire-end ferrules, 0.25mm², 6mm², Trapezoidal indentation crimp
-
Ürün No.:9017300000Ambalaj birimi:1 adet
Crimping tool for wire-end ferrules, 0.5mm², 4mm², Trapezoidal crimp
-
Ürün No.:1527230000Ambalaj birimi:1 adet
Pressing tool, Crimping tool for wire-end ferrules, 0.14mm², 6mm², Trapezoidal crimp
-
Ürün No.:9017360000Ambalaj birimi:1 adet
Crimping tool for wire-end ferrules, 0.5mm², 6mm², Square crimp
-
Ürün No.:9017440000Ambalaj birimi:1 adet
Crimping tool for wire-end ferrules, 0.14mm², 6mm², Trapezoidal crimp
Münferit parçaları
-
Ürün No.:1470940000Ambalaj birimi:1 adet
Assortment crimping tool, Crimping tool: PZ 6 Roto L, Crimping range, min.: 0.5, Colour code: Weidmüller
