Özellikler
| Version | Frame |
| Order No. | 1428960000 |

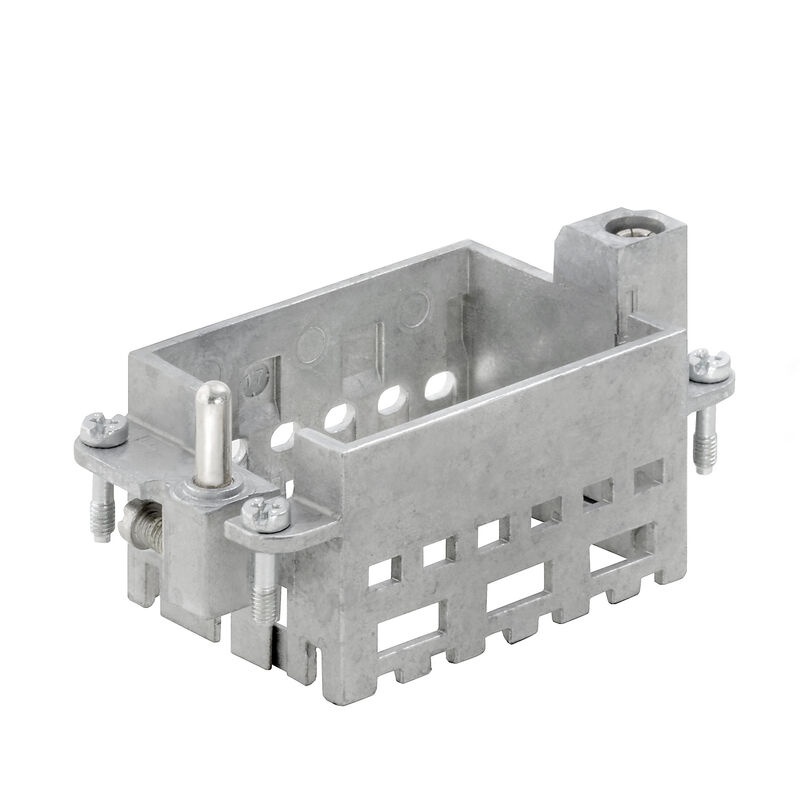

| Type | HDC MF 10B AC |
| GTIN (EAN) | 4050118233223 |
| Qty. | 1 adet |

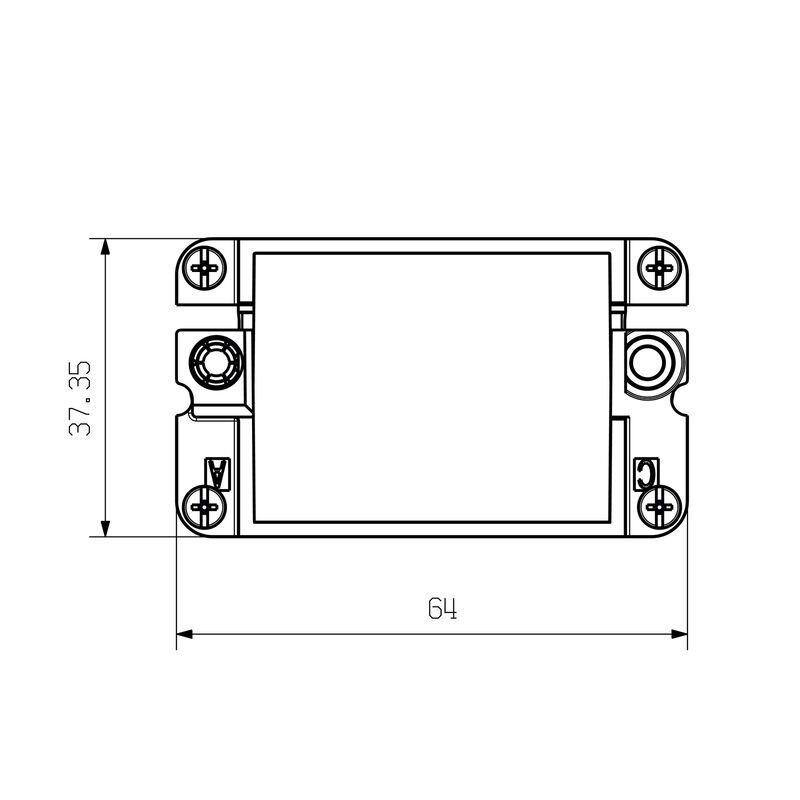

| Depth | 34,4 mm |
| Depth (inches) | 1,354 inch |

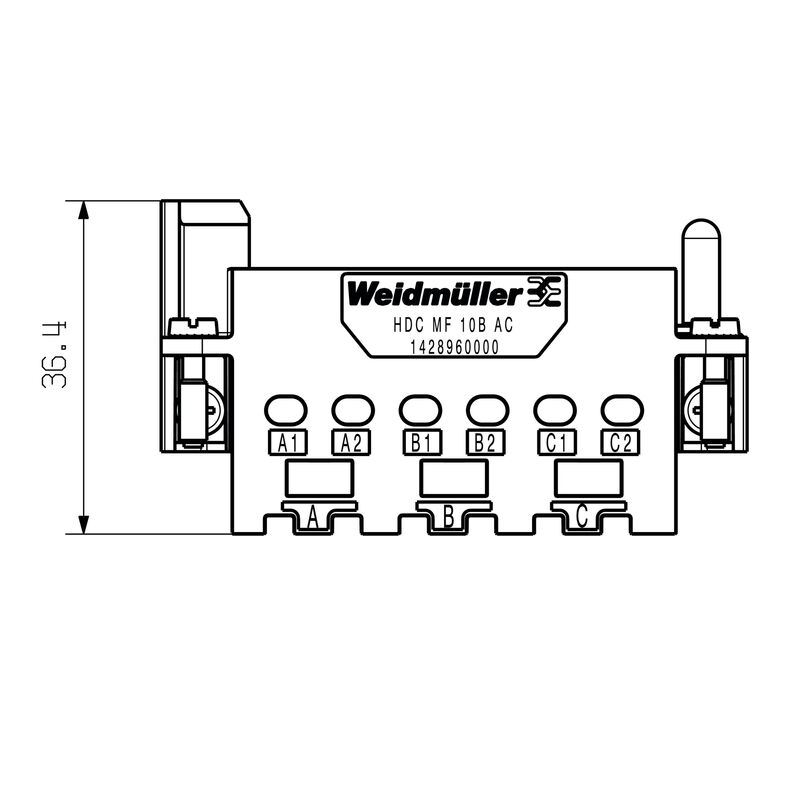

| Height | 36,4 mm |
| Height (inches) | 1,433 inch |
| Width | 64 mm |
| Width (inches) | 2,52 inch |
| Net weight | 67,541 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d447edfa-0214-4f34-b5ba-82eae491b46a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| Material | Diecast zinc |
| Number of slots | 3 |
| Plugging cycles | ≥ 500 |
| Series | ModuPlug |
| Size | 4 |
| Conductor cross-section, max. | 10 mm² |
| Conductor cross-section, min. | 0,5 mm² |
| Connection type PE | Screw connection |
| Tightening torque, max. PE connection | 1,2 Nm |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61735) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1428960000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1428960000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC002312 |
| ETIM 9.0 | EC002312 |
| ECLASS 9.0 | 27-44-02-06 |
| ECLASS 9.1 | 27-44-02-06 |
| ECLASS 10.0 | 27-44-02-06 |
| ECLASS 11.0 | 27-44-02-06 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
