Özellikler

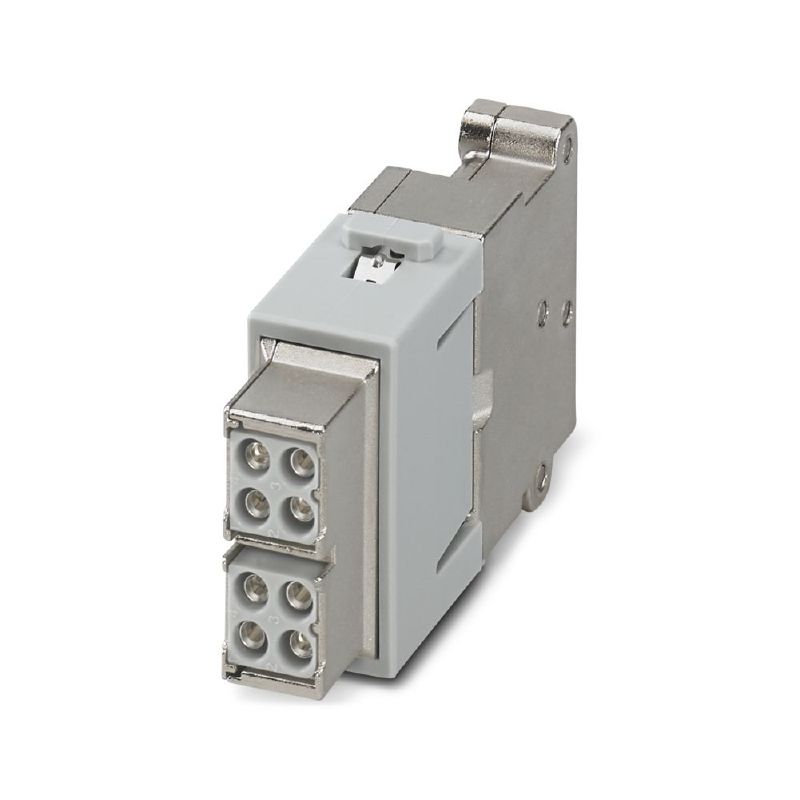

| Version | Data module, 48 V, 10 A, Number of poles: 8, Crimp connection, Female, Required plug-in slots: |
| Order No. | 3092850000 |
| Type | HDC MMBIT 8 FC M2 SH |
| GTIN (EAN) | 4099987109895 |
| Qty. | 1 adet |
| Height | 56,7 mm |
| Height (inches) | 2,232 inch |
| Width | 33,8 mm |
| Width (inches) | 1,331 inch |
| Length | 14,6 mm |
| Length (inches) | 0,575 inch |
| Net weight | 30,4 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polycarbonate |
| Number of poles | 8 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 10 A |
| Rated impulse voltage (DIN EN 61984) | 0,8 kV |
| Rated voltage (DIN EN 61984) | 48 V |
| Series | ModuPlug |
| Surge voltage category | III |
| Type | Female |
| UL 94 flammability rating | V-0 |
| Type of connection | Crimp connection |
| Wire connection cross section AWG, max. | AWG 26 |
| Wire connection cross section AWG, min. | AWG 16 |
| Tightening torque, max. according to the conductor cross-section |
|
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_321802) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
