Özellikler

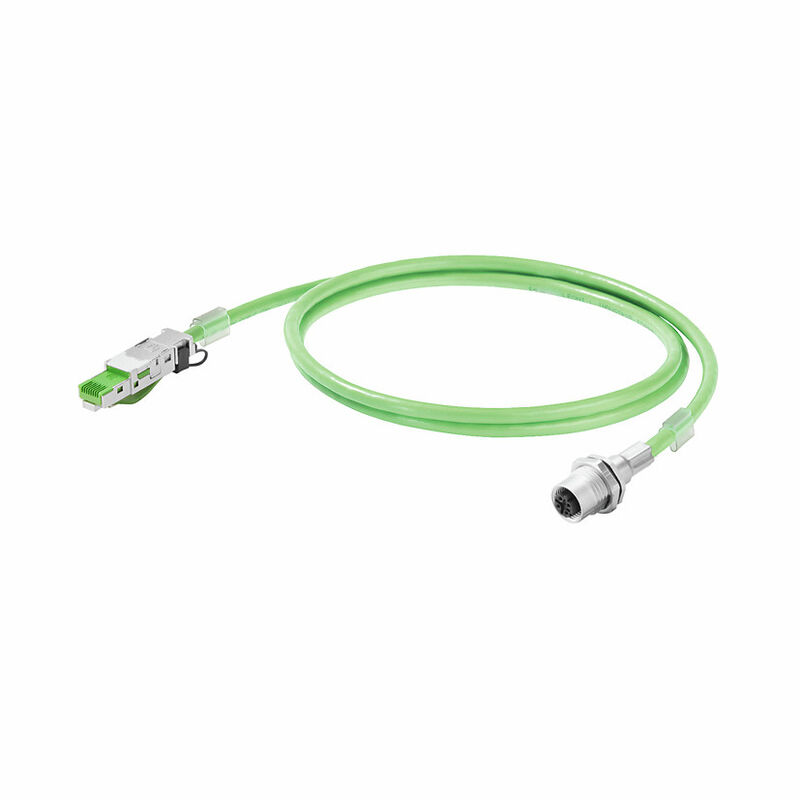

| Version | System cable, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), 0.2 mm |
| Order No. | 1234750002 |
| Type | IE-C5DS4UG0002MBSA70-E |
| GTIN (EAN) | 4050118703528 |
| Qty. | 1 adet |
| Length | 0,2 mm |
| Length (inches) | 0,008 inch |
| Net weight | 52,8 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Cross-section | 4*AWG 22/7 - 0.32 mm² |
| Sheathing colour | green (RAL 6018) |
| Shielding | 360° shield contact |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Halogen | halogen-free, according to IEC 60754-2 |
| Resistance to spread of flame | Yes |

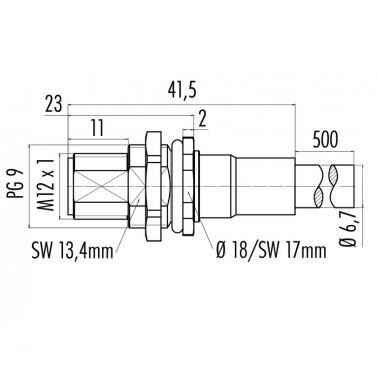

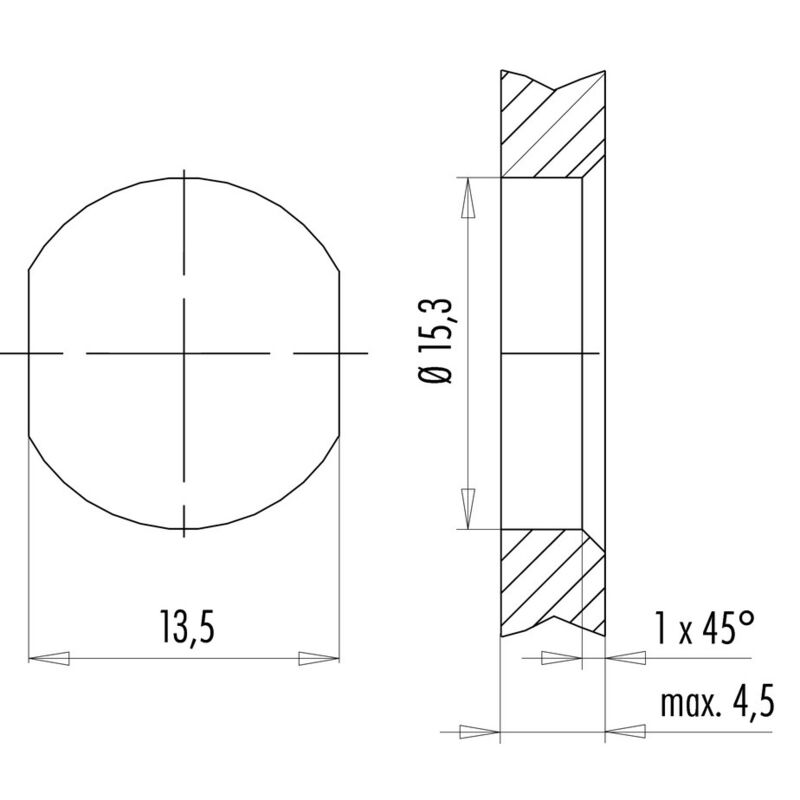

| Plug left | M12, D-coded, IP67, female contact, straight, flange, Plastic, shielded |
| Plug right | RJ45, IP20, male contact, straight, plug, Plastic, shielded |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204274) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1234750002) |
| Product Change Notification |
[PCN-PB47-20230322-A-EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_296362)
[PCN-PB47-20230322-A-DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_296363) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| ROHS | Conform |
