Özellikler

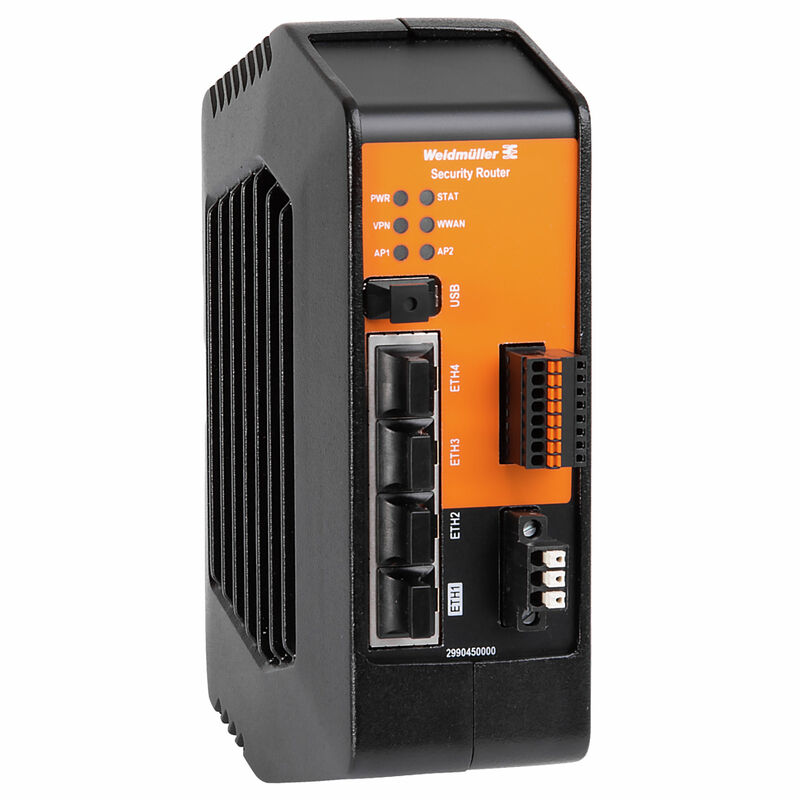

| Version | Security/NAT/VPN/U-link Router, Gigabit Ethernet, 4x RJ45 10/100/1000BaseT(X), DNV, IP20, -25 °C...70 °C |
| Order No. | 2990450000 |
| Type | IE-SR-4GT-M |
| GTIN (EAN) | 4099986863521 |
| Qty. | 1 adet |
| Depth | 115 mm |
| Depth (inches) | 4,528 inch |
| Height | 150 mm |
| Height (inches) | 5,905 inch |
| Width | 55 mm |
| Width (inches) | 2,165 inch |
| Net weight | 560 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity | 5 - 90 %, no condensation |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6aI, 7a, 7cI, 7cII |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9229992a-00b9-4096-8962-200a7f33e289 |
| EMC standards |
EN 61000-6-4
EN 61000-6-2 |
| Ship use | DNV |
| Shock | according to IEC 60068-2-27 |
| Vibration | according to IEC 60068-2-6 |
| Humidity | 5 - 90 %, no condensation |
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| Storage temperature, max. | 85 °C |
| Storage temperature, min. | -40 °C |
| Time interval | 3 years |
| Digital inputs |
VPN-initiate: establishes a pre-configured VPN connection (24 V in)
Cut: physically disconnects (Link Down) the WAN port (24 V in) Trigger pre-configured packet filter rules (24 V in) galvanically isolated |
| Digital outputs |
VPN-active: indicates an active VPN connection (24 V out)
Alarm: indicates a configurable network state or fault (24 V out) |
| Function reset button | Restoration of factory settings |
| LED indicator |
Power: indicates power supply status, boot-up process, firmware update process
Status: indicates system status VPN: indicates VPN tunnel status Port LED: Link/ACT, Speed (RJ45 port) |
| Number of ports | 4x RJ45 10/100/1000BaseT(X) |
| Number of SCM-Card slots | 1 |
| RJ45 ports |
10/100/1000BaseT(X)
auto negotiation Full-/half-duplex mode Auto MDI/MDI-X port |
| SCM-Card slot type |
Smart Card (ID-000 format)
Save and restore the configuration using smart card (memory chip) |
| Serial port |
1x RS-485
2-wire galvanically isolated 1 removable 3-pin terminal block |
| USB port | USB 2.0 interface for firmware update or restoration of the device configuration via USB flash drive |
| Device configuration |
Webbrowser (HTTP/HTTPS)
SNMP v1/v2c/v3 Windows tool |
| Monitoring function |
SNMP v1/v2c/v3
Syslog Event based warning via E-Mail Event based warning via relay |
| IP-address management |
Static
DHCP-Client DHCP-Server (pool-based) DNS-Relay |
| Time synchronization management |
NTP server
NTP client |
| Connection type | 1 removable 3-pin terminal block |
| Current consumption |
|
| Overload current protection | Yes |
| Reverse polarity protection | Yes |
| Voltage supply |
Galvanically isolated
24 V DC |
| Voltage supply range |
|
| Firewall functions |
Stateful Packet Inspection Firewall (Layer-3)
Transparent bridge mode (4-port switch with additional Layer-2 filter) |
| NAT functions | Source / Destination NAT (Port / Host / Network) |
| Routing functions |
IPv4 routing
IPv4 routing extended (each interface (LAN, WAN, optional cellular) can be configured as separate IP network) Static and dynamic IP Routing RIPv2 / OSPF |
| VPN functions |
u-link client
OpenVPN (Server or Client) IPSec (Initiator or Responder) |
| Housing main material | Aluminium |
| Protection degree | IP20 |
| Speed | Gigabit Ethernet |
| Type of mounting | DIN rail |
| Standard |
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX IEEE 802.3ab for 1000BASE-T |
| Product information | For the SCM card usage please check the compatibility list for suitable router models and hardware revisions found at the SCM card IE-EBR-SMARTCARD-SR 2909820000. |
| Approval/Certificate/Document of Conformity |
[DNV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_321875)
[UK Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_291187) [EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_291190) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_317114) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2990450000) |
| Product Change Notification | [Firmware Release Notes](https://mdcop.weidmueller.com/mediadelivery/asset/900_298609) |
| Software |
[Software -- u-link VPN-Client](https://mdcop.weidmueller.com/mediadelivery/asset/900_35627)
[Device description -- SNMP MIB file](https://mdcop.weidmueller.com/mediadelivery/asset/900_35901) [Current Firmware](https://mdcop.weidmueller.com/mediadelivery/asset/900_290974) |
| User Documentation |
[u-link EULA V3 EN (28.5.2018)](https://mdcop.weidmueller.com/mediadelivery/asset/900_157684)
[Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_293617) [u-link EULA V4 EN (20.9.2023)](https://mdcop.weidmueller.com/mediadelivery/asset/900_307879) [Mandatory connection parameters for u-link VPN clients](https://mdcop.weidmueller.com/mediadelivery/asset/900_317647) [Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_320047) [Application notes -- Industrial Product Security Guideline](https://mdcop.weidmueller.com/mediadelivery/asset/900_322935) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001478 |
| ETIM 7.0 | EC001478 |
| ETIM 8.0 | EC001478 |
| ETIM 9.0 | EC001478 |
| ECLASS 9.0 | 19-17-01-03 |
| ECLASS 9.1 | 19-17-01-03 |
| ECLASS 10.0 | 19-17-04-05 |
| ECLASS 11.0 | 19-17-04-05 |
| ECLASS 12.0 | 19-17-04-05 |
| ECLASS 13.0 | 19-17-04-05 |
| ECLASS 14.0 | 19-17-04-05 |
| Approvals |    |
| ROHS | Conform |
