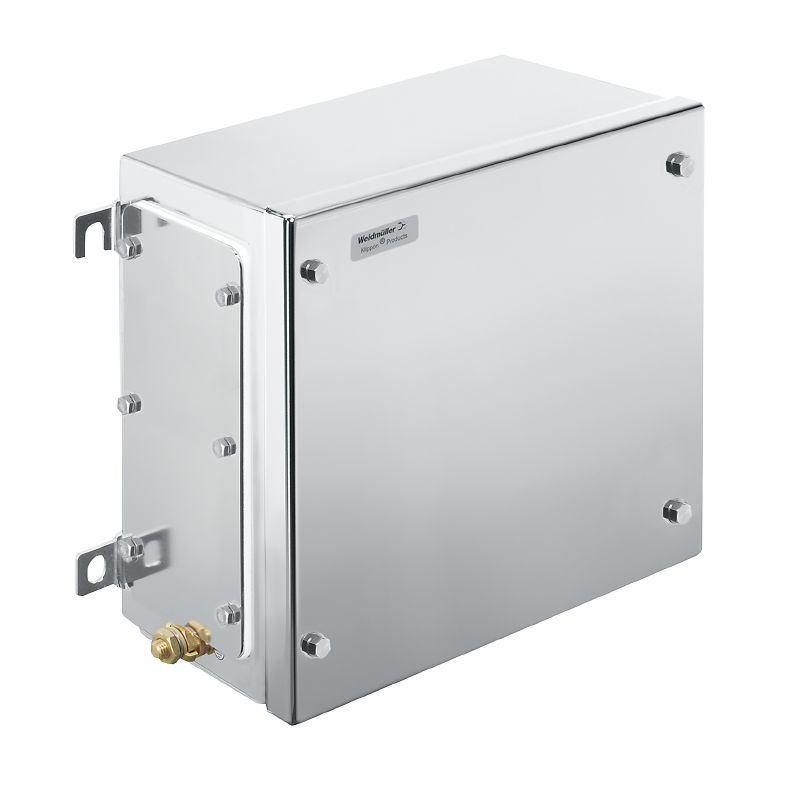

KTB FS 262620 S4E1
Klippon TB FS (Terminal Box - Fixing Screw), Empty enclosure, stainless steel enclosure, Height: 260 mm, Width: 260 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4404 (316L), electropolished, silver
Ürün No.
1195760000
Özellikler
| Version | Klippon TB FS (Terminal Box - Fixing Screw), Empty enclosure, stainless steel enclosure, Height: 260 mm, Width: 260 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4404 (316L), electropolished, silver |
| Order No. | 1195760000 |
| Type | KTB FS 262620 S4E1 |
| GTIN (EAN) | 4032248978847 |
| Qty. | 1 adet |
| Available until | 24.11.2015 |
| Depth | 200 mm |
| Depth (inches) | 7,874 inch |
| Height | 260 mm |
| Height (inches) | 10,236 inch |
| Width | 260 mm |
| Width (inches) | 10,236 inch |
| Mounting dimension - height | 170 mm |
| Mounting dimension - width | 286 mm |
| Net weight | 4.950 g |
| Operating temperature | -60 °C...135 °C |
| Note: room temperature (service) | Limited to IP66 protection when used in temperatures greater than 105 °C. |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 8d5fcdfe-c58e-44e1-a6b4-74d2bbccc9dd |
| M12 | 25 |
| M16 | 16 |
| M20 | 11 |
| M25 | 9 |
| M32 | 4 |
| M40 | 4 |
| M50 | 2 |
| M63 | 1 |
| M75 | 1 |
| M12 | 25 |
| M16 | 16 |
| M20 | 11 |
| M25 | 9 |
| M32 | 4 |
| M40 | 4 |
| M50 | 2 |
| M63 | 1 |
| M75 | 1 |
| M12 | 33 |
| M16 | 22 |
| M20 | 14 |
| M25 | 12 |
| M32 | 6 |
| M40 | 5 |
| M50 | 2 |
| M63 | 2 |
| M75 | 1 |
| Approval conditions |
ATEX
CCoE cULus DNV IECEX INMETRO KC NEPSI CCC UL AEx Class Div. UL AEx Class Zone |
| Attestation of Conformatiy No. (AoC) | DE PS261X 160309 001ISS03 |
| Certificate No. (ATEX) | KEMA10ATEX0046U |
| Certificate no. (cULus) | E256877 |
| Certificate No. (DNV) | TAE000013S |
| Certificate No. (IECEX) | IECEXKEM10.0015U |
| Certificate no. (INMETRO) | IEX17.0021 |
| Certificate No. Electronic Box (NEPSI) | 2020322303003289 |
| Certificate no. empty enclosure (ATEX) | IBExU14ATEX1028 U |
| Certificate no. empty enclosure (ECAS) | 21-09-25241/E21-09-053807 |
| Certificate no. empty enclosure (IECEx) | IECEx IBE 14.0004U |
| Certificate no. empty enclosure (INMETRO) | LMP 21.0016U |
| Certificate no. Terminal Box (AEx) | E223792 |
| Certificate no. Terminal Box (ATEX) | IBExU14ATEX1050 |
| Certificate no. Terminal Box (IECEx) | IECEXIBE14.0013 |
| Certificate no. Terminal Box (INMETRO) | LMP 21.0017 |
| Certificate no. Terminal Box (KOSHA) | 16-AV4BO-0245X |
| Certificate No. UL 508A | E223801 |
| Certificate No. UL Haz.Loc. | E223792 |
| Certificate No. UL Ord.Loc. | E243298 |
| Certificate No. UL Terminal Box | E223792 |
| Declaration of Conformatiy No. (DoC LVD) | DE PS261X 160412 001ISS02 |
| Access opening: height | 230 mm |
| Access opening: width | 230 mm |
| AF size | 10 mm |
| Areas of use |
Explosive risk zone
Process industry Oil and gas industry Chemical industry Offshore Onshore |
| Dimension of box | 320x455x290 |
| Enclosure attachment | 4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet) |
| Flange plate | Yes |
| Flange plate mounting | M6 hexagonal head screws 10 SW |
| Gland plates | Bottom |
| Impact resistance |
7 J ATEX version
10 J version standard |
| Integral fixing | 4, 6 or 9 stud bolts M6 inner (female) thread |
| Lid attachment | M6 hex-head slotted screws SW10 |
| Material | Stainless steel 1.4404 (316L) |
| Material thickness of cover | 1,5 mm |
| Material thickness of enclosure | 1,5 mm |
| Material thickness of flange | 3 mm |
| Max. payload | 27 kg |
| Note: protection class | If used in temperature ranges above 105 °C, IP protection is limited to IP 66. |
| Number of lid screws | 4 |
| Operating temperature, max. | 135 °C |
| Operating temperature, min. | -60 °C |

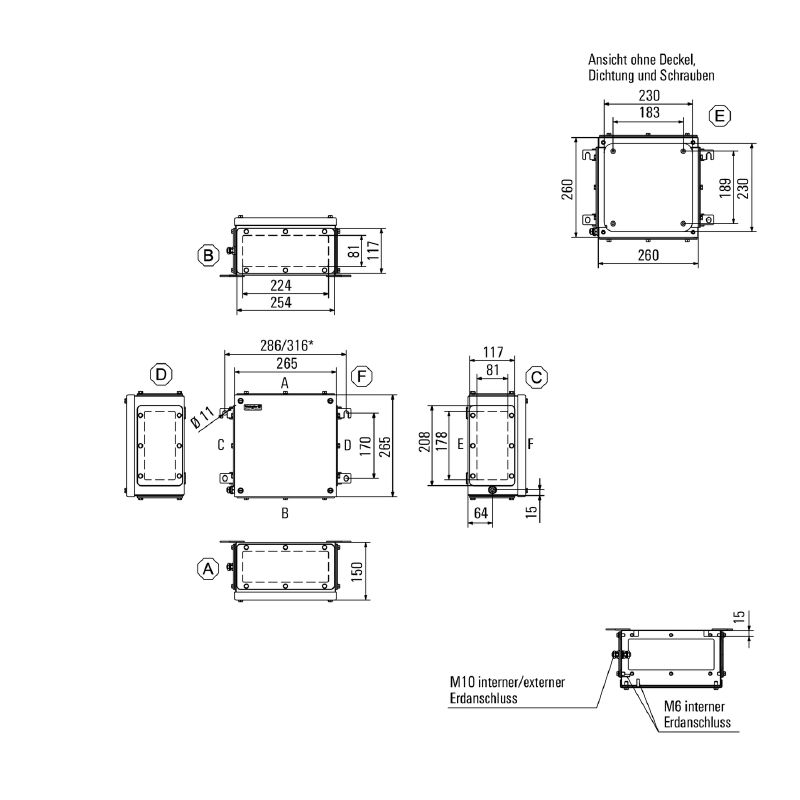

| Overall dimensions | 271 x 311 x 208.5 |
| Position PE bolts | Enclosure side C |
| Protection class (UL) |
Type 3
Type 4X Type 12 |
| Protection degree |
IP66
IP67 |
| Seal material | Silicone |
| Standards |
DIN EN 62208 - Empty enclosure standard
DIN EN 15085-2 EN 60079-0 EN 60079-7 EN 60079-31 IEC 60079-0 IEC 60079-7 IEC 60079-31 |
| Surface finish | electropolished |
| Torque for lid screws | 2,5 Nm |
| WDU 10 / ZDU 10 | 1x17 |
| WDU 16 / ZDU 16 | 1x14 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 2x34 |
| WDU 35 / ZDU 35 | 1x10 |
| WDU 4 / ZDU 4 | 1x29 |
| WDU 6 / ZDU 6 | 1x22 |
| Earth, enclosure, internal |
Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Continuous M10 earth stud in body enclosure |
| WDU 10 / ZDU 10 | 1x18 |
| WDU 16 / ZDU 16 | 1x15 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 2x35 |
| WDU 35 / ZDU 35 | 1x10 |
| WDU 4 / ZDU 4 | 1x30 |
| WDU 6 / ZDU 6 | 1x22 |
| Approval/Certificate/Document of Conformity |
[CCC 2020322303002358 KTB Assembly Enclosure](https://mdcop.weidmueller.com/mediadelivery/asset/900_177321)
[CCC 2020322303002357 KTB Empty Enclosure](https://mdcop.weidmueller.com/mediadelivery/asset/900_177322) [PTB11ATEX2019](https://mdcop.weidmueller.com/mediadelivery/asset/900_157711) [16-AV4BO-245X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157712) [P4610581_1](https://mdcop.weidmueller.com/mediadelivery/asset/900_157714) [24-01-100099/E24-01-102546/NB10](https://mdcop.weidmueller.com/mediadelivery/asset/900_246668) [LMP 21.0017 - CAIXA DE JUNÇÃO KLIPPON TB - KTB MH QL FS](https://mdcop.weidmueller.com/mediadelivery/asset/900_252967) [CERTIFICADO - LMP 21.0016U KLIPPON TB](https://mdcop.weidmueller.com/mediadelivery/asset/900_268378) [CERTIFICADO LMP 21.0017 KLIPPON TB](https://mdcop.weidmueller.com/mediadelivery/asset/900_307810) [EU Declaration of Conformity - Klippon TB Empty Enclosures - DoC DE PS261X 160412 001ISS03](https://mdcop.weidmueller.com/mediadelivery/asset/900_40362) [DoM Railway applications - Fire protection on railway vehicles](https://mdcop.weidmueller.com/mediadelivery/asset/900_207564) [Attestation of Conformity - Klippon TB Empty Enclosures - AoC DE PS261X 160309 001ISS06](https://mdcop.weidmueller.com/mediadelivery/asset/900_40358) [IBEXU14ATEX1028U](https://mdcop.weidmueller.com/mediadelivery/asset/900_157700) [IBEXU14ATEX1050](https://mdcop.weidmueller.com/mediadelivery/asset/900_157701) [IECEXIBE14.0004U](https://mdcop.weidmueller.com/mediadelivery/asset/900_157702) [IECEXIBE14.0013](https://mdcop.weidmueller.com/mediadelivery/asset/900_157703) [TAE000013S](https://mdcop.weidmueller.com/mediadelivery/asset/900_157704) [GYJ14.1310X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157707) [IECEXPTB11.0071](https://mdcop.weidmueller.com/mediadelivery/asset/900_157710) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_85744) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1195760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1195760000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1195760000&norm=0) |
| Tender specification |
[Klippon TB FS 262620 S4E1_1195760000_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_56734)
[Klippon TB FS 262620 S4E1_1195760000_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_56749) [Klippon TB FS 262620 S4E1_1195760000_NL](https://mdcop.weidmueller.com/mediadelivery/asset/900_56799) |
| User Documentation | [Assembly guidelines - empty enclosures](https://mdcop.weidmueller.com/mediadelivery/asset/900_40379) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB OVERV. PROCESS WD DE](http://download.weidmueller.com/asset/download/file/40063)
[MB KLIPPON ENCL.TECN EN](http://download.weidmueller.com/asset/download/file/39472) [MB PROCESS EN](http://download.weidmueller.com/asset/download/file/38262) [FL WIND 2012 EN](http://download.weidmueller.com/asset/download/file/38289) [FL APPL PROCESS EN](http://download.weidmueller.com/asset/download/file/38303) [FL SHIPBUILDING 2016 EN](http://download.weidmueller.com/asset/download/file/38172) [FL RAILWAY 2014 EN](http://download.weidmueller.com/asset/download/file/38215) [PI KLIPPON TB MH QL EN](http://download.weidmueller.com/asset/download/file/38134) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-02 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| Approvals |             |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E256877 |
