LM MT300 202/12 GE
LM MT300 202/12 GE

LM MT300 202/12 GE

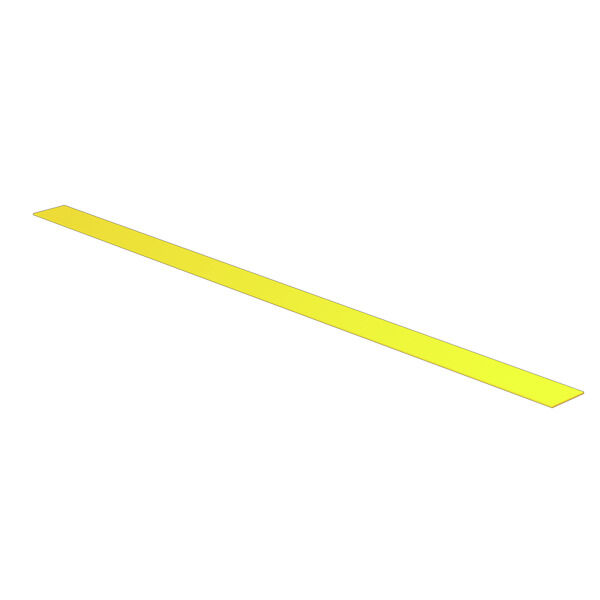

LaserMark, Repérage d’équipements et appareillages, 12 x 202 mm, jaune

Produkt ID 1915320000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 1
Omologazioni Informations générales de commande Dimensiones y pesos Температуры Environmental Product Compliance General data Device markers Classificazioni

Omologazioni

ROHS
준수

Informations générales de commande

Version
LaserMark, Repérage d’équipements et appareillages, 12 x 202 mm, jaune
Order No.
1915320000
Type
LM MT300 202/12 GE
GTIN (EAN)
4032248547968
Qty.
10 items

Dimensiones y pesos

Depth
0,08 mm
Profondeur (pouces)
0,003 inch
Height
12 mm
Altezza (pollici)
0,472 inch
Width
202 mm
Width (inches)
7,953 inch
Net weight
12,8 g

Температуры

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
No SVHC superiori a 0,1 wt%

General data

Adhesive
Acrylate adhesive
Approval acc. to UL 969
Yes
Basic material
Polyester, PVC-free
Colour
yellow
Halogen
No
Material colour according to resistance code
4
Number of markers per combination
1 Label sheet = 22 Device markers
Number of markers per packaging unit
220
Number of markers per packaging unit
  • Form of supply:
    Label sheet
  • Number of combinations per packaging unit:
    10
  • Number of markers per combination:
    22
Number per sheet
22
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
Printed characters
ohne
Printing method
Laserdruck
UL 94 flammability rating
HB
Version
selbstklebend
Width
202 mm

Device markers

Halogen
No

Classificazioni

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
