MOPL K1 N FE

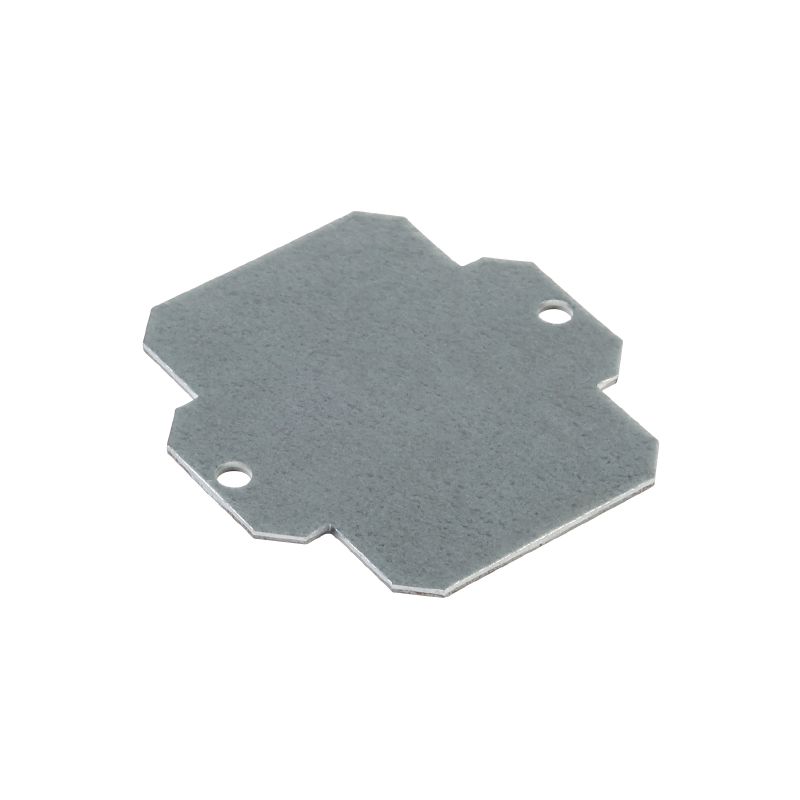

Similar to illustration
Abbildung ähnlich

MOPL K1 N FE

Klippon K (aluminium empty enclosure), Mounting plate, Mounting plate, Height: 52 mm, Width: 61 mm, Depth: 3 mm, Basic material: Sheet steel, galvanized, galvanized, silver

商品编号 1905280000
下载技术数据页 Engineeringondersteuning Productdownloads
Toebehoren 1 Is accessoire van 6 Verwante producten 17
Approvals General ordering data Dimensions and weights Environmental Product Compliance General information General information on accessories Classifications

Approvals

ROHS
Conform

General ordering data

Version
Klippon K (aluminium empty enclosure), Mounting plate, Mounting plate, Height: 52 mm, Width: 61 mm, Depth: 3 mm, Basic material: Sheet steel, galvanized, galvanized, silver
Order No.
1905280000
Type
MOPL K1 N FE
GTIN (EAN)
4032248524426
Qty.
1 items

Dimensions and weights

Profondeur
3 mm
Depth (inches)
0,118 inch
Hauteur
52 mm
Height (inches)
2,047 inch
Largeur
61 mm
Width (inches)
2,402 inch
Cote de fixation hauteur
26 mm
Mounting dimension - width
52 mm
Net weight
27 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Basic material
Sheet steel, galvanized
Material thickness
2 mm
Surface finish
galvanized

General information on accessories

Wymiar mocowania wysokość
26 mm
기본 재질
Sheet steel, galvanized
마운팅 치수 - 너비
52 mm
재질 두께
2 mm
표면 마감
galvanized

Classifications

ETIM 8.0
EC000213
ETIM 9.0
EC000213
ETIM 10.0
EC000213
ECLASS 14.0
27-40-06-39
ECLASS 15.0
27-40-06-39
