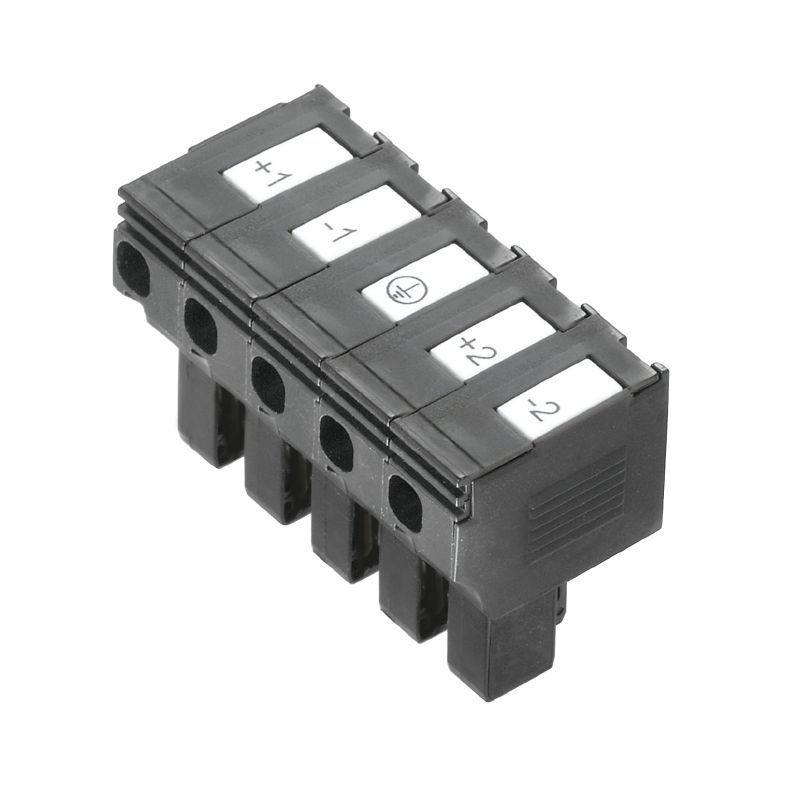

PTS 4 DC

Field Power® plug-in connector, DC, IP20, Polyamide, PUSH IN, Number of poles : 5

Ürün No. 1131730000

Özellikler

General ordering data

Version	Field Power® plug-in connector, DC, IP20, Polyamide, PUSH IN, Number of poles : 5
Order No.	1131730000
Type	PTS 4 DC
GTIN (EAN)	4032248912117
Qty.	10 adet

Dimensions and weights

Depth	36,15 mm
Depth (inches)	1,423 inch
Height	27,3 mm
Height (inches)	1,075 inch
Width	55,45 mm
Width (inches)	2,183 inch
Net weight	34,71 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Approbations

Certificate No. (cURus)	E60693
Institute (cURus)	CURUS

Clamping capacity, PUSH IN connection

Blade size, PUSH IN connection	3.0 x 0.5 mm
Clamping range, max. PUSH IN connection	4 mm²
Clamping range, min. PUSH IN connection	0,5 mm²
Cross-section for connected wire PUSH IN connection, solid, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, flexible, PUSH IN connection, max.	4 mm²
Cross-section for connected wire, flexible, PUSH IN connection, min.	0,5 mm²
Cross-section for connected wire, PUSH IN connection, solid, max.	4 mm²
Finely-stranded flexible, max. PUSH IN connection	4 mm²
Finely-stranded flexible, min. PUSH IN connection	0,5 mm²
Stripping length, PUSH IN connection	12 mm
Wire connection cross section, stranded, PUSH IN connection, max.	4 mm²
Wire connection cross section, stranded, PUSH IN connection, min.	0,5 mm²

Clamping capacity

Connection data - plug-in connector

Wire connection method:

PUSH IN
Blade size of operating tool:

3.0 x 0.5 mm
Stripping length:

12 mm
Number of poles:

5
Conductor connection cross-section, solid, max.:

4 mm²
Conductor connection cross-section, solid, min.:

0,5 mm²
Conductor connection cross-section, stranded, max.:

4 mm²
Conductor connection cross-section, stranded, min.:

0,5 mm²
Conductor connection cross-section, finely stranded, max.:

4 mm²
Conductor connection cross-section, finely stranded, min.:

0,5 mm²
Conductor connection cross-section, finest stranded, max.:

4 mm²
Conductor connection cross-section, finest stranded, min.:

0,5 mm²
Conductor connection cross-section with wire end ferrule:
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  12 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/1
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  8 mm with plastic collar
- Standard:

  DIN 46228/4
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²
- Type of wire end ferrule:

  Twin wire-end ferrules
- Cross-section, min.:

  0,5 mm²
- Cross-section, max.:

  4 mm²

General data

Insulating material	Polyamide
Silicone	No
Colour	black
Protection degree	IP20
UL 94 flammability rating	V-0
Type of mounting	Plugged
Can be coded	Yes Coded on PE
Test point	2 mm
Voltage type	DC
Number of poles	5
Number of connections / pole	1
Wire connection method	PUSH IN
Conductor outlet direction	90°

Rated data acc. to IEC

Rated data acc. to IEC for plug-in connector

Voltage type:

DC
Standard:

IEC 60947-7-1, IEC 60947-7-2, IEC 61984
Rated voltage:

690 V
Rated impulse withstand voltage:

8 kV
Rated current (3 loaded poles):

32 A
Rated current (4 loaded poles):

25 A

Rated data acc. to UL

Rated data acc. to UL for plug-in connector

Standard:

UL 1059
Note:

for use with UL-listed TC-ER cables
Conductor connection cross-section, AWG, max.:

AWG 12
Conductor connection cross-section, AWG, min.:

AWG 16
Rated voltage:

600 V
Rated current:

20 A

Downloads

Approval/Certificate/Document of Conformity	[UL Certificate FieldPower® terminals and plug-in connectors](https://mdcop.weidmueller.com/mediadelivery/asset/900_252845) [Manufacturer's Declaration FieldPower® plug-in connectors and HQ adapters](https://mdcop.weidmueller.com/mediadelivery/asset/900_42269)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79412)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1131730000)
User Documentation	[Manual FieldPower® PTS 4 and PTDS 4](https://mdcop.weidmueller.com/mediadelivery/asset/900_252970)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002943
ETIM 7.0	EC002943
ETIM 8.0	EC002943
ETIM 9.0	EC002943
ECLASS 9.0	27-44-02-92
ECLASS 9.1	27-44-03-90
ECLASS 10.0	27-44-02-92
ECLASS 11.0	27-44-02-92
ECLASS 12.0	27-44-02-92
ECLASS 13.0	27-44-02-92
ECLASS 14.0	27-44-02-92

Approvals

Approvals	![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E60693
