Özellikler

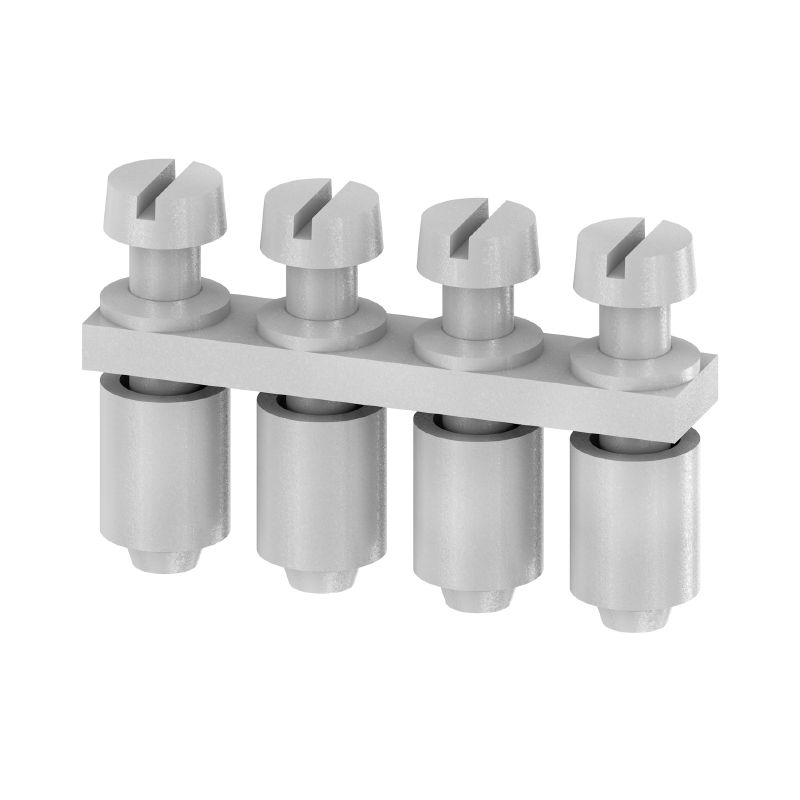

Version | Cross-connector (terminal), when screwed in, grey, 24 A, Number of poles: 4, Pitch in mm (P): 5.10, Insulated: No, Width: 19.3 mm |
Order No. | 0368400000 |
Type | Q 4 AKZ1.5 |
GTIN (EAN) | 4008190153892 |
Qty. | 50 adet |
Depth | 11 mm |
Depth (inches) | 0,433 inch |
Height | 4 mm |
Height (inches) | 0,157 inch |
Width | 19,3 mm |
Width (inches) | 0,76 inch |
Net weight | 3,36 g |
Storage temperature | -25 °C...55 °C |
RoHS Compliance Status | Compliant without exemption |
REACH SVHC | No SVHC above 0.1 wt% |
Material | CuSn |
Colour | grey |
Version | for cross-connection link |
Explosion-tested version | No |
Installation advice | Direct mounting |
Type of fixing | when screwed in |
Number of cross-connected terminals | 4 |
Rated current, multi-pole | 24 A |
Type | Cross-connector |
Pitch in mm (P) | 5,1 mm |
Installation advice | Direct mounting |
Number of poles | 4 |
Rated current | 24 A |
