Özellikler
| Version | PCB plug-in connector, RJ45 jacks, Cat. 5 , THT solder connection, 90°, Latch option: top, Shield tabs: 6 tabs, 30...80 µ" Ni / ≥ 30 µ" Au , LED: No, Number of poles: 8, Tray (manual assembly) |
| Order No. | 2562920000 |
| Type | RJ45C5 T1U 2.8E4N TY |
| GTIN (EAN) | 4050118571943 |
| Qty. | 140 adet |
| Packaging | Tray (manual assembly) |
| Depth | 15,71 mm |
| Depth (inches) | 0,619 inch |
| Height | 15,86 mm |
| Height (inches) | 0,624 inch |
| Height of lowest version | 13,11 mm |
| Width | 16,41 mm |
| Width (inches) | 0,646 inch |
| Net weight | 2,379 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Category | Cat. 5 |
| Latch option | top |
| LED | No |
| Mounting onto the PCB | THT solder connection |
| Number of poles | 8 |
| Number of solder pins per pole | 1 |
| Outgoing elbow | 90° |
| Performance-Category | Cat. 5 |
| Pitch in inches (P) | 0,05 " |
| Pitch in mm (P) | 1,27 mm |
| Plugging cycles | 750 |
| Product family | OMNIMATE Data - RJ45 modular jack |
| Protection degree | IP20 |
| Shield surface | nickel-plated |
| Shield tabs | 6 tabs |
| Shielding | Yes |
| Shielding material | Brass |

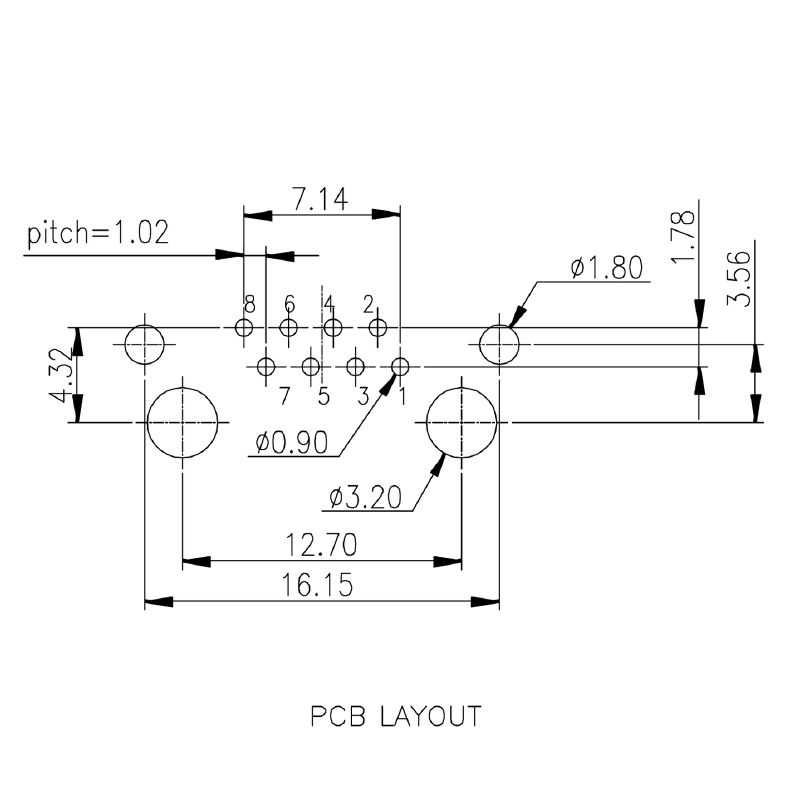

| Solder eyelet hole diameter (D) | 0,9 mm |
| Solder eyelet hole diameter tolerance (D) | ± 0.1 mm |
| Solder pin dimensions | Octagonal |
| Solder pin length (l) | 2,75 mm |
| Solder pin length tolerance |
|
| Solder pin length tolerance | +0.2 / -0.2 mm |
| Soldering process |
Manual soldering
Wave soldering |
| Tolerance of solder pin position | ± 0.1 mm |
| Type of connection | Solder connection |
| Wiring | 8-core |
| Dielectric strength, contact / contact | 1000 V DC |
| Dielectric strength, contact / shield | 1500 V DC |
| Insulation strength | ≥ 500 MΩ |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Rated current | 1.5 A |
| Rated voltage | 125 V |
| Connector standard | IEC 60603-7-51 |
| Insulating material | PA 66 |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | II |
| Comparative Tracking Index (CTI) | ≥ 500 |
| Insulation strength | ≥ 500 MΩ |
| UL 94 flammability rating | V-0 |
| Contact base material | Phosphorus bronze |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Layer structure of plug contact | 30...80 µ" Ni / ≥ 30 µ" Au |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| Packaging | Tray (manual assembly) |
| VPE length | 316 mm |
| VPE width | 190 mm |
| VPE height | 67 mm |
| Approval/Certificate/Document of Conformity | [Certificate of Compliance](https://mdcop.weidmueller.com/mediadelivery/asset/900_217537) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212094) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2562920000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
