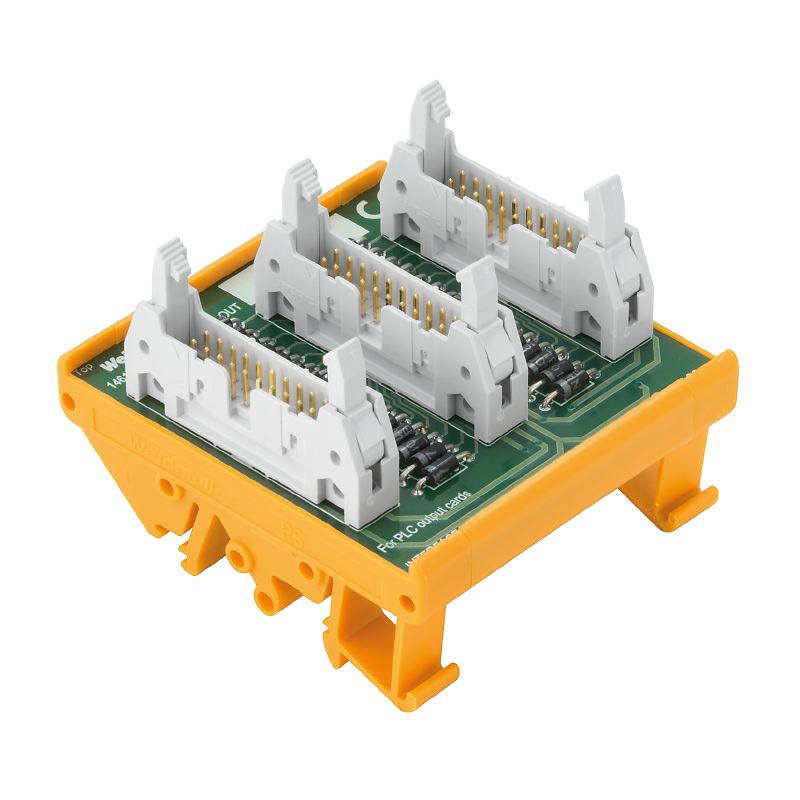

RS F20 X3 OUT

RS F20 X3 OUT

Bu ürün yakında mevcut olmayacak.

Ürün No. 1461220000
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
İlgili ürünler 2
Approvals 일반 주문 데이터 Dimensions and weights Températures Conformité environnementale du produit Connection Data Rating data Isolationskoordinaten (EN50178) Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

일반 주문 데이터

Order No.
1461220000
Type
RS F20 X3 OUT
GTIN (EAN)
4050118266955
Qty.
1 adet
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1770678000000)/

Dimensions and weights

Depth
50 mm
Mélység (coll)
1,968 inch
Height
70 mm
Height (inches)
2,756 inch
Width
40 mm
Width (inches)
1,575 inch
Net weight
75 g

Températures

Storage temperature
-40...60 °C
Operating temperature
-25...50 °C

Conformité environnementale du produit

RoHS Compliance Status
Conforme avec exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
7b5ffb72-271d-4c73-8b09-bd0aaee3697a

Connection Data

Connection on control side
3 x plug-in connectors in acc. with IEC60603-13 / DIN41651
Earthing
No
Number of poles (control side)
20 Pole

Rating data

Rated voltage
50 V AC / 70 V DC
Rated current per connection
0,5 A
Total operating current
3 A

Isolationskoordinaten (EN50178)

According to
DIN EN 50178
Rated insulation voltage
50 V AC / 70 V DC
Surge voltage category
II
Pollution severity level
2
Insulation test voltage AC
0,35 kV

Classifications

ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
ECLASS 14.0
27-33-02-92
ECLASS 15.0
27-33-02-92
