Özellikler

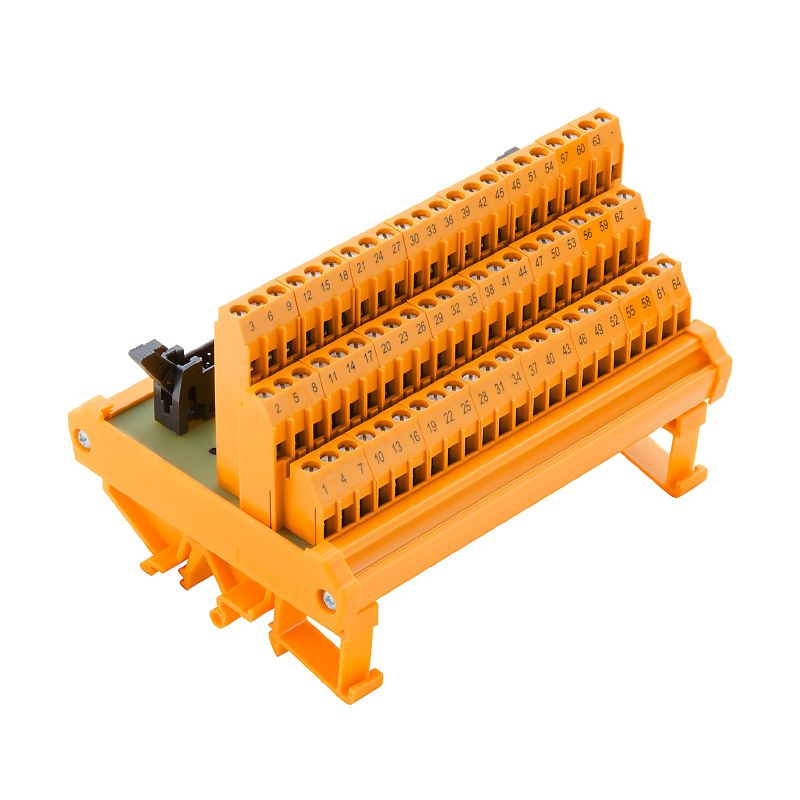

| Version | Interface, RSF, Plug-in connector in acc. with IEC60603-13 / DIN41651, 64-pole, Screw connection |
| Order No. | 8012970000 |
| Type | RS F64 LP3R 3/66 |
| GTIN (EAN) | 4008190154615 |
| Qty. | 1 adet |
| Depth | 76 mm |
| Depth (inches) | 2,992 inch |
| Height | 87 mm |
| Height (inches) | 3,425 inch |
| Width | 120 mm |
| Width (inches) | 4,724 inch |
| Net weight | 259,6 g |
| Storage temperature | -40...70 °C |
| Operating temperature | 0...55 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 7b5ffb72-271d-4c73-8b09-bd0aaee3697a |
| Operating temperature UL, max. | 25 °C |
| Operating temperature UL, min. | 0 °C |
| Rated current IN | 1 A |
| Rated current Imax | 1 A |
| Rated voltage UN | ≤ 60 V AC / 75 V DC |
| Connection (field side) | LL3R 5.08 mm |
| Connection on control side | Plug-in connector in acc. with IEC60603-13 / DIN41651 |
| Earthing | Yes |
| Number of poles (control side) | 64-pole |
| Protective earth connection | Flat-blade contact |
| Rated voltage | 60 V AC / 75 V DC |
| Rated current per connection | 1 A |
| According to | DIN EN 50178 |
| Rated insulation voltage | 100 V |
| Surge voltage category | II |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 0,8 kV |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0,5 mm² |
| Flexible with sleeve, max. | 2,5 mm² |
| Flexible with sleeve, min. | 0,5 mm² |
| Flexible, max. H05(07) V-K | 4 mm² |
| Flexible, min. H05(07) V-K | 0,5 mm² |
| Max. wire cross-section, AWG | AWG 12 |
| Min. wire cross-section, AWG | AWG 26 |
| Sleeve with plastic collar, max. | 2,5 mm² |
| Solid, max. H05(07) V-U | 6 mm² |
| Solid, min. H05(07) V-U | 0,5 mm² |
| Stripping length | 6 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,5 Nm |
| Type of connection | Screw connection |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_153582) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212412) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8012970000) |
| Product Change Notification | [20201111 Technical change to RSF S Compact family](https://mdcop.weidmueller.com/mediadelivery/asset/900_178418) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E141197 |
