Özellikler
| Version | Fixed cable version, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP, 15 m |
| Order No. | 1784510000 |
| Type | SAI-8-F 5P 15M 0.5/1.0U |
| GTIN (EAN) | 4032248190706 |
| Qty. | 1 adet |
| Height | 25 mm |
| Height (inches) | 0,984 inch |
| Net weight | 2.548 g |
| Operating temperature | -20 - 80 |
| Sheathing stripping length | 100 mm |
| Distributor outlet | Fixed cable version |
| Rated voltage, min. | 10 V |
| Rated voltage, max. | 30 V |
| Test voltage | 1 kV |
| Max. current-carrying capacity per slot | 4 A |
| Total current | 9 A |
| Current per signal | 2 A |
| Electrical isolation available | No |
| Insulation strength | 109 Ω |
| Plug-in station coding | A-coded |
| Protection degree | IP68 |
| Number of poles | 5 |
| Number of contact sockets | 8 |
| Connection thread | M12 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| Plugging cycles | ≤ 50 |
| LED | Yes |
| LED initiator | Yes |
| LED colour for indicating operation | green |
| LED colour for I/O function | yellow |
| Housing main material | Pocan |
| Material of distributor | Plastic |
| Housing colour | grey, RAL 7032 |
| Hood sealing material | Viton |
| Screw socket | Nickel-plated CuZn |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |

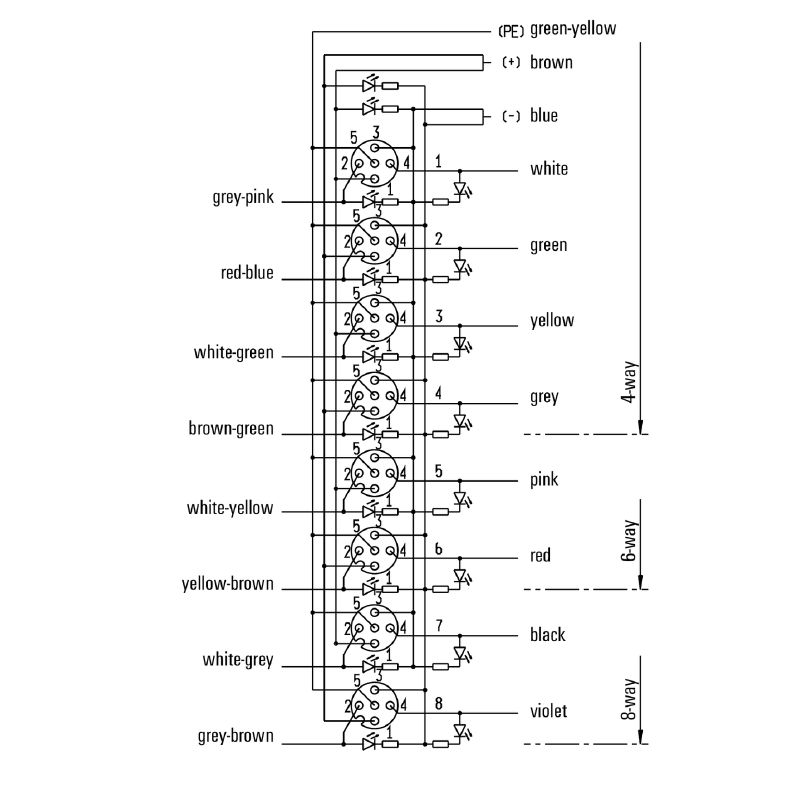

| Colour coding |
blue
brown violet grey / pink red / blue white / green brown / green white / yellow Yellow / brown grey / brown Green/yellow yellow grey green white pink red black |
| Number of poles | 5 |
| O.D. | 12,3 mm |
| Sheathing colour | Deep black |
| Wire cross section (Print/Online) | 16 x 0.5 mm² + 3 x 1.0 mm² |
| Cable length | 15 m |
| Suitable for cable carriers | Yes |
| Armoured line | 16 x 0,5 mm² + 3 x 1 mm² |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_151450) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1784510000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1784510000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| ETIM 9.0 | EC002585 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-08 |
| ECLASS 11.0 | 27-44-01-08 |
| ECLASS 12.0 | 27-44-01-08 |
| ECLASS 13.0 | 27-44-01-08 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E141197 |
