Özellikler
| Version | Y-plug, M12 / M8 |
| Order No. | 1783420000 |
| Type | SAI-Y-4-4/2-4 M12/8 |
| GTIN (EAN) | 4032248183357 |
| Qty. | 1 adet |
| Net weight | 17 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |

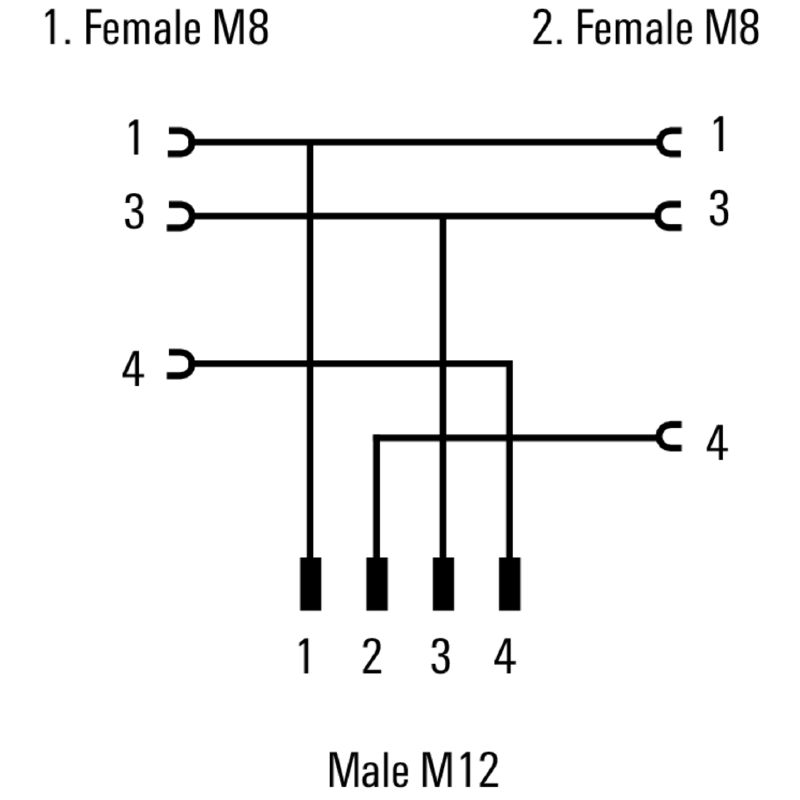

| Group outlet - plug-in connector | M12 pin |
| Single outlet 1 - plug-in connector | M8 socket |
| Single outlet 2 - plug-in connector | M8 socket |
| Tightening torque |
M8: 0.5 - 0.6 Nm
M12: 0.8 - 1.2 Nm |
| Coding | M12 = A-coded, M8 = none |
| Contact surface | Au (Gold) |
| Housing main material | PBT |
| Number of poles | 4 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 24 V |
| Shield connection | No |
| Temperature range of housing | -25…+90 °C |
| Connector standard |
IEC 61076-2-101
IEC 61076-2-104 |
| Coding | M12 = A-coded, M8 = none |
| Conductor O.D. | - |
| Connection thread | M12 / M8 |
| Contact material, pin | CuZn |
| Contact material, socket | CuZn |
| Contact surface | Au (Gold) |
| Housing main material | PBT |
| Number of poles | 4 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 24 V |
| Shield connection | No |
| Temperature range of housing | -25…+90 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_177467) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1783420000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1783420000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002925 |
| ETIM 7.0 | EC002925 |
| ETIM 8.0 | EC002925 |
| ETIM 9.0 | EC002925 |
| ECLASS 9.0 | 27-44-01-06 |
| ECLASS 9.1 | 27-44-01-06 |
| ECLASS 10.0 | 27-44-01-06 |
| ECLASS 11.0 | 27-44-01-06 |
| ECLASS 12.0 | 27-44-01-06 |
| ECLASS 13.0 | 27-44-01-06 |
| ECLASS 14.0 | 27-44-01-06 |
| Approvals |   |
| ROHS | Conform |
