SAIL-M8GM8GR-3-10V
SAIL-M8GM8GR-3-10V
Dimensioned drawing
Male, straight
SAIL-M8GM8GR-3-10V
Dimensioned drawing
Straight socket
SAIL-M8GM8GR-3-10V
Pole scheme
Male
SAIL-M8GM8GR-3-10V
Pole scheme
Socket
SAIL-M8GM8GR-3-10V
Wiring diagram
Schaltbild

SAIL-M8GM8GR-3-10V

Dette produkt er snart ikke længere tilgængeligt.

Last order date: /Date(1790719200000)/

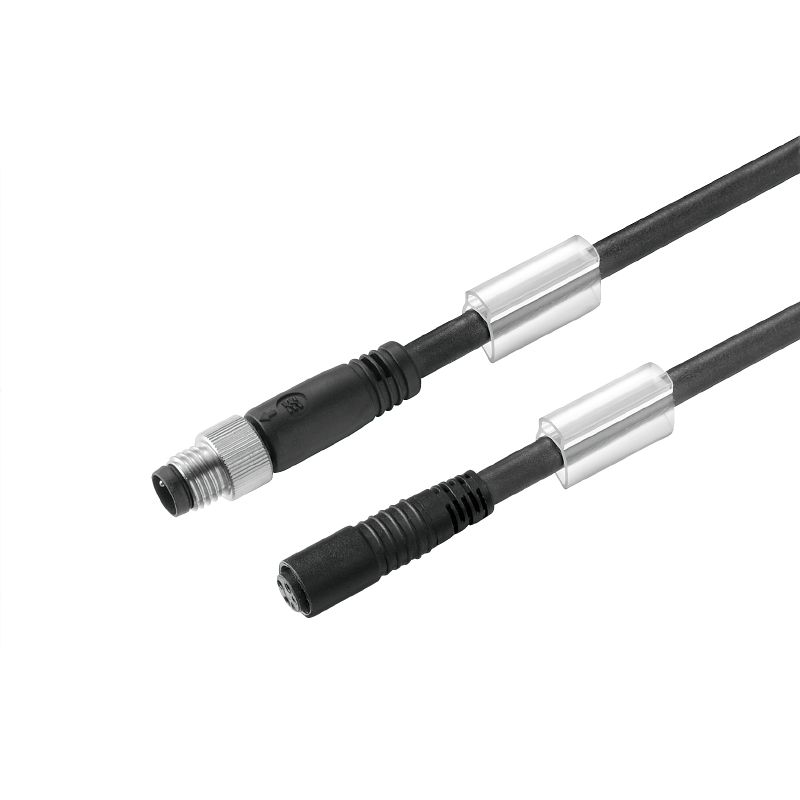

Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Produkt ID 1948651000
Download datablad Produktdownloads Engineering-support
Tilbehør 6 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Conector izquierdo Conector derecho Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1948651000
Type
SAIL-M8GM8GR-3-10V
GTIN (EAN)
4032248625741
Qty.
1 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1790719200000)/

Dimensions and weights

Net weight
276 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Cable length
10 m
Configurable cable length
No
Core cross-section
0,25 mm²
Halogen
Ano
Insulation
PVC
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Resistant to welding beads
いいえ
Resistenza alla torsione
0 °/m
Reticulado por radiación
Nie
Sheath material
PVC
Sheathing colour
black
Shielded
No
Suitable for cable carriers
No
Színkód gyűrű
brown
blue
black
Welding spark resistance
No
Ytterdiameter
4.5 mm ± 0.2 mm
Zakres temperatur, zmienny, min. / maks.
-5...80 °C
Количество контактов
3
온도 범위, 고정
-30...80 °C

General technical data

Coding
A-coded
Connection thread
M8 / M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
becsavart állapotban
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
Version
pin, straight - socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Certificate no. (cULus)
E307231
Steckverbinder Norm
IEC 61076-2-104

Standards

Standardní konektor
IEC 61076-2-104

Conector izquierdo

Plug left
M8, IP69, contacto macho, recto, Plástico, no apantallado

Conector derecho

Plug right
M8, IP69, contacto hembra, recto, Plástico, no apantallado

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
