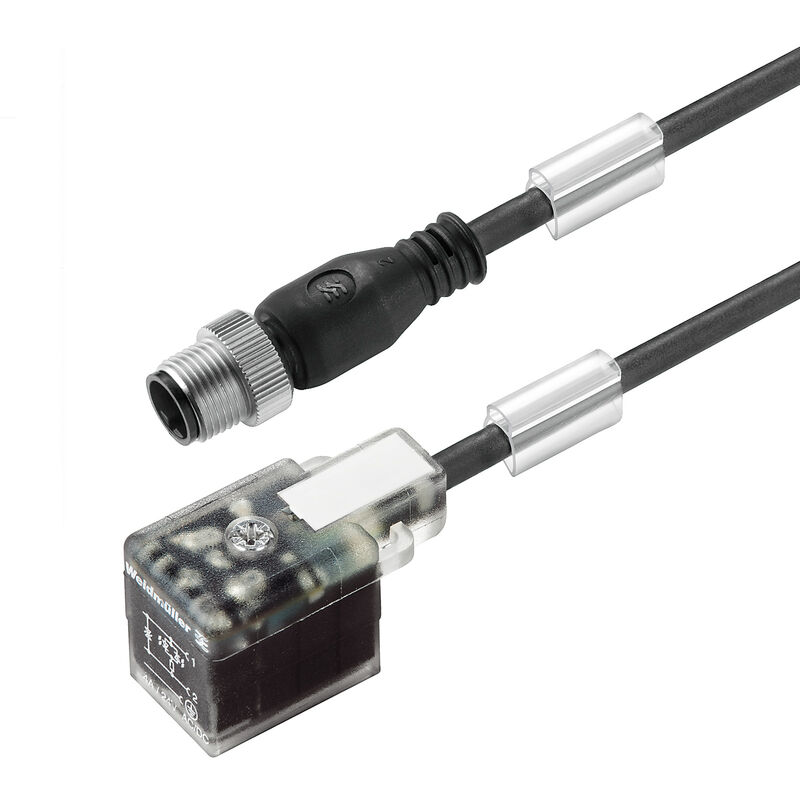

SAIL-VSBD-M12G-1.5U

Valve cable (assembled), Straight plug - valve plug, DIN design B (10 mm), M12 = A-coded, Cable length: 1.5 m, PUR, black

Product ID 9457780150

Version	Valve cable (assembled), Straight plug - valve plug, DIN design B (10 mm), M12 = A-coded, Cable length: 1.5 m, PUR, black
Order No.	9457780150
Type	SAIL-VSBD-M12G-1.5U
GTIN (EAN)	4032248227396
Qty.	1 items

Net weight

112 g

RoHS Compliance Status	Compliant
REACH SVHC	Lead 7439-92-1

Acceleration	5 m/s²
Bending cycles	2 Mio
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	1,5 m
Colour coding	brown blue Green/yellow
Core cross-section	0,5 mm²
Halogen	No
Insulation	PP
Number of poles	3
Outside diameter	4.6 mm ± 0.2 mm
Resistant to welding beads	No
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	200 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-50...80 °C
Torsion resistance	0 °/m
Welding spark resistance	No

All valve plugs are fitted with protective circuits	Zener diode
Coding	DIN design B (10 mm) M12 = A-coded
Connection thread	Miscellaneous
Contact material	CuZn
Contact surface	tinned
LED	Yes
Protection degree	IP67 when screwed in
Rated current	4 A
Rated voltage	24 V
Temperature range of housing	-25…+80 °C
Tightening torque	Mounting screw M3: 0.4 Nm M12: 0.8 - 1.2 Nm
Version	Straight plug - valve plug

Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Approvals	![CE](/picture/CE.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
