Özellikler
| Version | D-SERIES DRI, Retaining clip |
| Order No. | 7760056389 |
| Type | SDI CLIP P |
| GTIN (EAN) | 6944169787539 |
| Qty. | 10 adet |

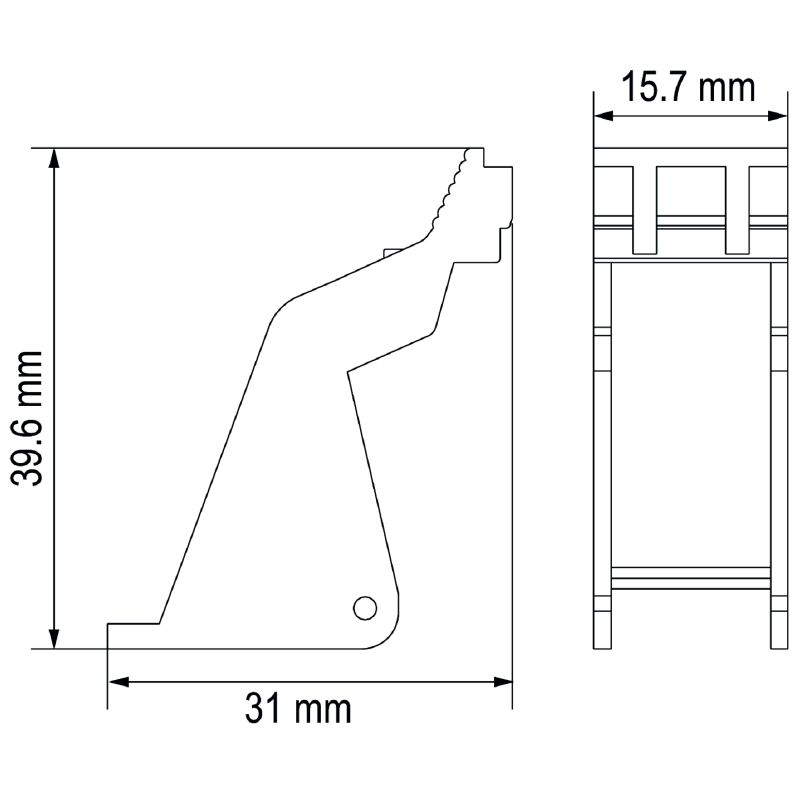

| Depth | 39,6 mm |
| Depth (inches) | 1,559 inch |
| Height | 31 mm |
| Height (inches) | 1,22 inch |
| Width | 15,7 mm |
| Width (inches) | 0,618 inch |
| Net weight | 1,962 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |

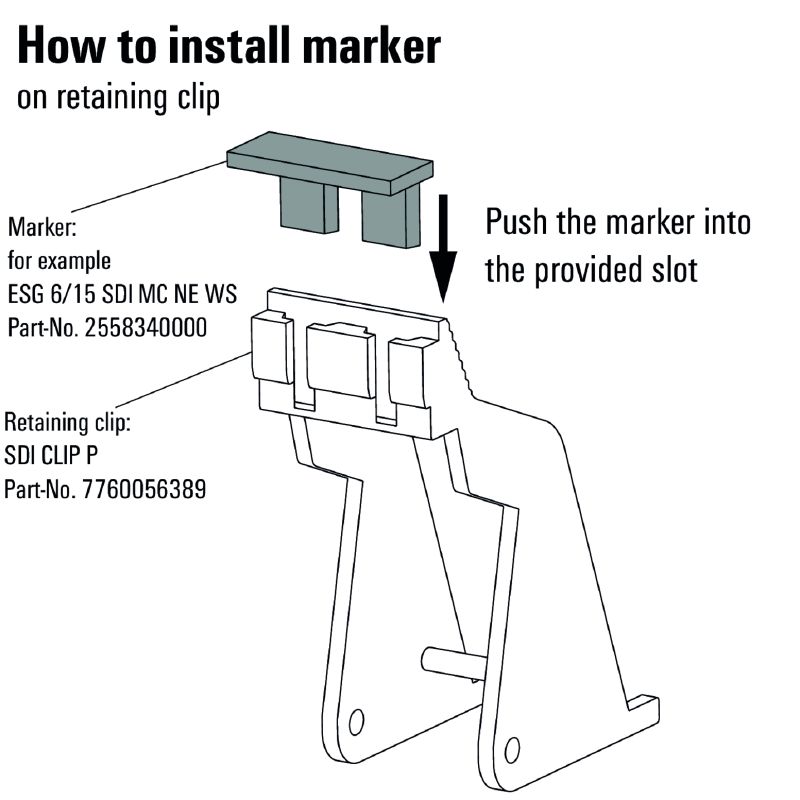

| Version | with marker holder |
| Material | Plastic |
| UL94 flammability rating component |
|
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54892) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.7760056389) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760056389) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-16-92 |
| ECLASS 10.0 | 27-37-16-92 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ECLASS 14.0 | 27-37-16-92 |
| ROHS | Conform |
