Özellikler

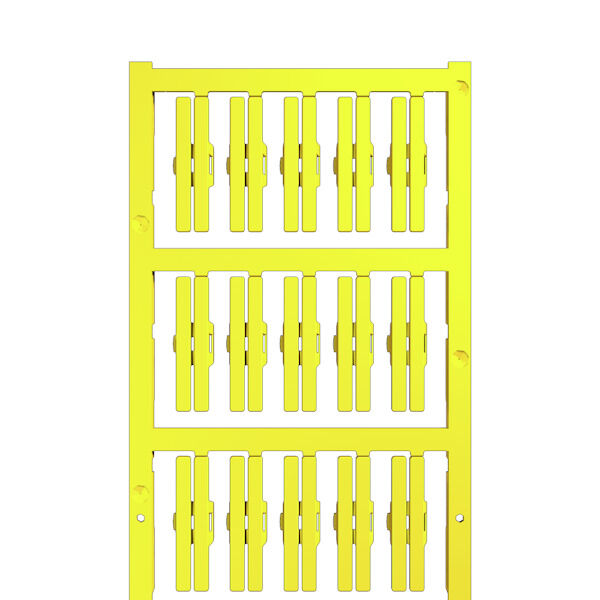

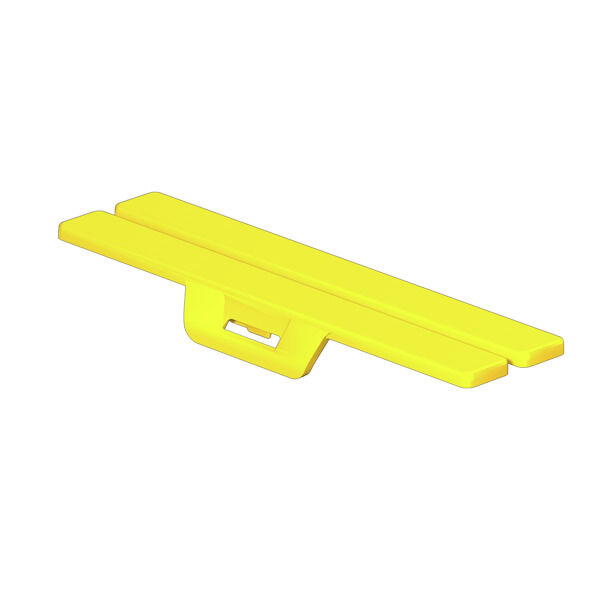

| Version | Conductor and cable markers, 30 x 4.2 mm, yellow |
| Order No. | 2905020000 |
| Type | SFC-DS 0/30 MC NE GE |
| GTIN (EAN) | 4099986918580 |
| Qty. | 150 adet |
| Depth | 3,2 mm |
| Depth (inches) | 0,126 inch |
| Height | 30 mm |
| Height (inches) | 1,181 inch |
| Width | 4,2 mm |
| Width (inches) | 0,165 inch |
| Net weight | 0,439 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| Halogen | No |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | without |
| Type of printing | neutral |
| UL 94 flammability rating |
V-2
UL 94 |
| Width | 4,2 mm |
| Conductor cross-section, max. | 1 mm² |
| Conductor O.D., max. | 2,5 mm |
| Conductor O.D., min. | 1,5 mm |
| Cross-section for connected wire | 1 mm² |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
