Özellikler
| Version | TERMSERIES, Solid-state relay, Rated control voltage: 18 V DC...24 V DC...30 V DC , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Plug-in connection |
| Order No. | 4061190000 |

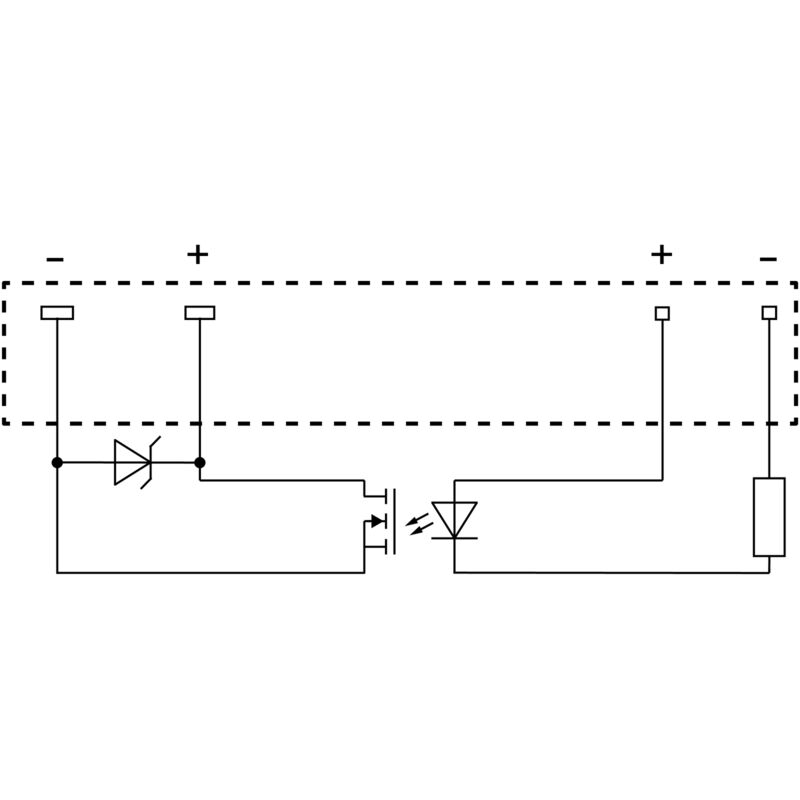

| Type | SSS RELAIS 24V/24V 2ADC |
| GTIN (EAN) | 4032248415083 |
| Qty. | 20 adet |
| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 28 mm |
| Height (inches) | 1,102 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 3,61 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -20 °C...60 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| MTTF | 1.116 a |
| REACH SVHC | / |
| Rated control voltage | 18 V DC...24 V DC...30 V DC |
| Nominal control current | 7 mA DC (±10 %) |
| Power rating | 170 mW |
| Status indicator | No |
| Rated switching voltage | 3...33 V DC |
| Continuous current | 2 A |
| Rated switching current | 2 A DC |
| Inrush current | 15 A / 10 ms |
| Switch-on delay | <55 µs |
| Switch-off delay | <600 µs |
| Voltage drop at max. load | ≤ 120 mV |
| Leakage current | <10 µA |
| Min. switching current | 5 mA |
| Short-circuit-proof | No |
| Protective circuit, load side | Free-wheeling diode |
| Contact type | 1 NO contact (MOS-FET) |
| Colour | black |
| Clearance and creepage distances for control side - load side | ≥ 5.5 mm |
| Dielectric strength for control side - load side | 2.5 kVeff |
| Wire connection method | Plug-in connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66402) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=4061190000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=4061190000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001504 |
| ETIM 7.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| ETIM 9.0 | EC001504 |
| ECLASS 9.0 | 27-37-16-04 |
| ECLASS 9.1 | 27-37-16-04 |
| ECLASS 10.0 | 27-37-16-04 |
| ECLASS 11.0 | 27-37-16-04 |
| ECLASS 12.0 | 27-37-16-04 |
| ECLASS 13.0 | 27-37-16-04 |
| ROHS | Conform |
