Özellikler

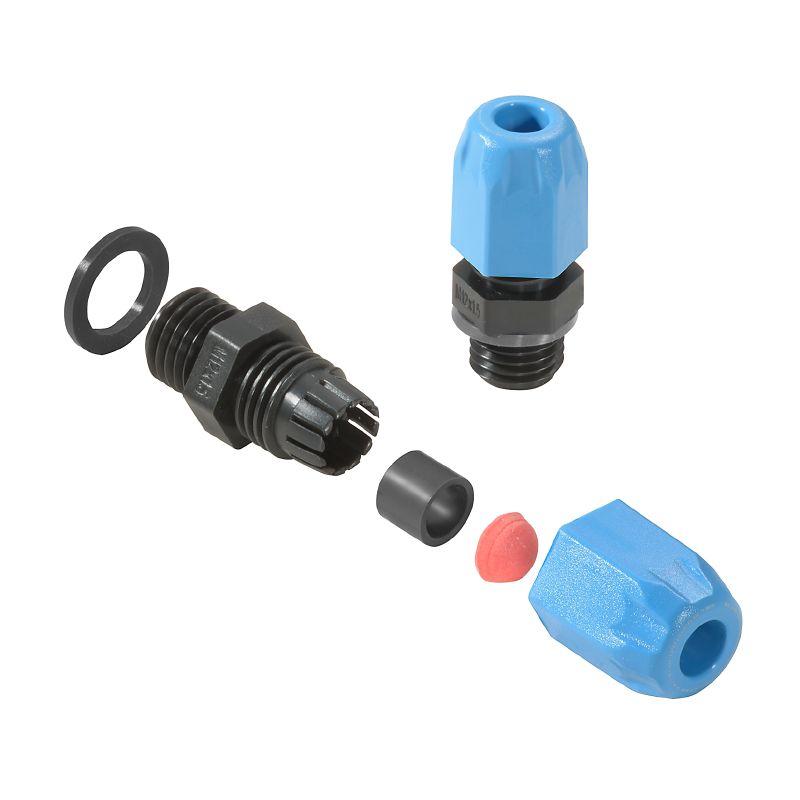

| Version | VG Exi 7J (Ex plastic cable gland 7J Exi), Cable glands, straight, M 12, 10 mm, OD min. 4 - OD max. 6.5 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6 |
| Order No. | 2722210000 |
| Type | VG M12 EXI 4-6.5 CR7J G4 |
| GTIN (EAN) | 4050118821444 |
| Qty. | 100 adet |
| Height | 28,3 mm |
| Height (inches) | 1,114 inch |
| Length | 22 mm |
| Length (inches) | 0,866 inch |
| Net weight | 4 g |
| Operating temperature | -40 °C...70 °C |
| REACH SVHC | / |
| Approval conditions |
ATEX
IECEX |
| Certificate no. cable gland (ATEX) | IMQ 13 ATEX 010 X |
| Certificate no. cable gland (IECEx) | IECEx IMQ 13.0003X |
| Certificate no. cable gland (INMETRO) | DNV 12.0051 X |
| Identification |
Ex eb llC Gb
Ex tb IIIC Db IP66/68 |
| AF size 1 | 15 mm |
| AF size 2 | 15 mm |
| Cable glands | metric |
| Explosion protection type | Intrinsically safe Ex i |
| External thread | M 12 |
| Halogen | Yes |
| Impact resistance | 7 joules in acc. with IEC 60079-0 |
| Installation guidelines | See assembly instructions |
| Length of thread | 10 mm |
| Material | Polyamide 6 |
| Operating temperature range, max. | 70 °C |
| Operating temperature range, min. | -40 °C |
| Outer cable diameter, max. | 6,5 mm |
| Outer cable diameter, min. | 4 mm |
| Pitch of thread | 1,5 mm |
| Protection degree |
IP54
IP66 IP67 IP68 - 5 bar (30 min.) |
| Protection degree with GWDR |
IP54
IP66 IP67 IP68 - 5 bar (30 min.) |
| Seal insert | CR |
| Sealing | CR |
| Standards |
IEC 60079-0
EN 60079-0 IEC 60079-7 EN 60079-7 EN 60079-31 IEC 60079-31 |
| Tightening torque | 2 Nm |
| Torque for cap nut, max. | 2,5 Nm |
| Torque for cap nut, min. | 1,5 Nm |
| Torque for connecting adapter, max. | 2,5 Nm |
| Torque for connecting adapter, min. | 1,5 Nm |
| UL 94 flammability rating | HB |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_206001) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2722210000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000441 |
| ETIM 7.0 | EC000441 |
| ETIM 8.0 | EC000441 |
| ETIM 9.0 | EC000441 |
| ECLASS 9.0 | 27-14-44-32 |
| ECLASS 9.1 | 27-14-44-34 |
| ECLASS 10.0 | 27-14-44-32 |
| ECLASS 11.0 | 27-14-44-32 |
| ECLASS 12.0 | 27-14-08-02 |
| ECLASS 13.0 | 27-14-08-02 |
| Approvals | CE; EAC; ATEX; IECEX; INMETRO |
| ROHS | Conform |
