VP 21-K54
VP 21-K54

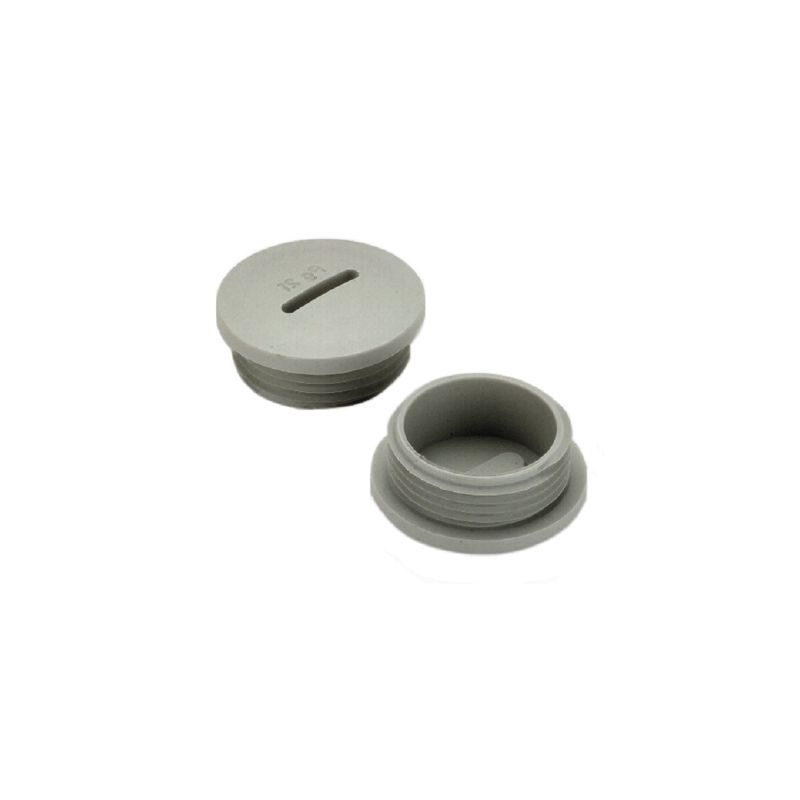

Similar to illustration
VP 21-K54

VP 21-K54

VPK (blanking plug in plastic), Blanking plug, in closed state, PG 21, 8 mm, IP65, Polyamid 6 (PA6 - GF30)

Ürün No. 0295160000
Veri sayfasını indir Mühendislik desteği
İlgili ürünler 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

ROHS
Conform

General ordering data

Versione
VPK (blanking plug in plastic), Blanking plug, in closed state, PG 21, 8 mm, IP65, Polyamid 6 (PA6 - GF30)
Rendelési szám
0295160000
Type
VP 21-K54
GTIN (EAN)
4008190012007
Qty.
50 adet

Dimensions and weights

Height
4 mm
Height (inches)
0,157 inch
Length
12 mm
Length (inches)
0,472 inch
Diameter
28,3 mm
Wall thickness, min.
0,5 mm
Wall thickness, max.
7 mm
Net weight
3,8 g

Temperatures

Temperatura d'esercizio
-40 °C...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Basic material
Polyamid 6 (PA6 - GF30)
Brennbarkeitsklasse nach UL 94
V-2
Cable gland
PG
Diameter of sealing ring
28,3 mm
Halogen
No
Head diameter
33 mm
Longueur du filetage
8 mm
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Protection degree
IP54
Protection degree with GWDR
IP65
Tuerca (externa)
PG 21

Classifications

ETIM 8.0
EC000451
ETIM 9.0
EC000451
ETIM 10.0
EC000451
ECLASS 14.0
27-14-08-05
ECLASS 15.0
27-14-08-05
