Özellikler

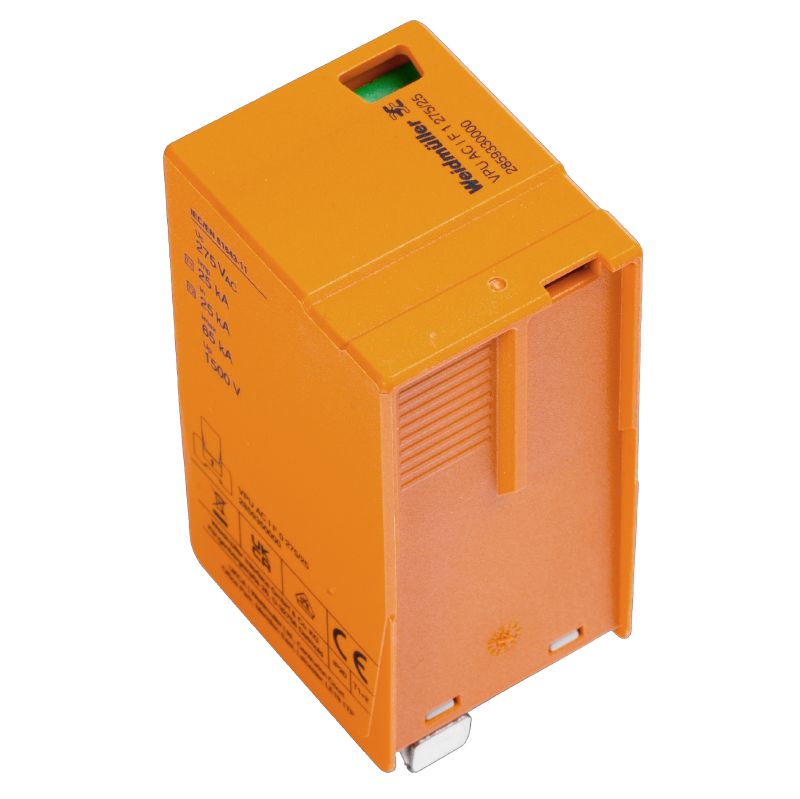

| Version | Surge voltage arrester, Low voltage, Surge protection |
| Order No. | 2859350000 |
| Type | VPU AC I F 0 275/25 |
| GTIN (EAN) | 4064675570578 |
| Qty. | 1 adet |
| Depth | 80 mm |
| Depth (inches) | 3,15 inch |
| Height | 45 mm |
| Height (inches) | 1,772 inch |
| Width | 36 mm |
| Width (inches) | 1,417 inch |
| Net weight | 198 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | orange |
| Design | Installation housing; 2TE |
| Operating altitude | ≤ 2000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 in installed state |
| Segment | Power distribution |
| Suitable for | Count-in installation (leakage current free) |
| UL 94 flammability rating | V-0 |
| Version | Surge protection |
| Discharge current Imax (8/20µs) wire-PE | 65 kA |
| Discharge current In (8/20µs) wire-PE | 25 kA |
| Energy coordination (≤10 m) |
Type I
Type II Type III |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse |
Not required
internally available |
| Lightning test current Iimp (10/350 µs) (L-PE) | 25 kA |
| Mains voltage | 230 V / 400 V |
| Max. continuous voltage, Uc (AC) | 275 V |
| Number of poles | 1 |
| Rated voltage (AC) | 240 V |
| Requirements category acc. to IEC 61643-11 |
Type I
Type II |
| Requirements class, acc. to EN 61643-11 |
T1
T2 |
| Response time | <100 ns |
| Short-circuit current rating ISCCR | 75 kA |
| Standards |
EN 61643-11
IEC 61643-11 |
| Suitable for | Count-in installation (leakage current free) |
| Temporary surge voltage (over-voltage) - TOV | 442 V |
| Voltage type | AC |
| Wire connection method | Plug-in connection |
| Voltage type | AC |
| Number of poles | 1 |
| Protection degree | IP20 in installed state |
| Colour | orange |
| Product information | If F1 > 315A gG, then the integrated backup fuse always operates before F1 |
| Notes | Additional tests for 100kA Isccr have been passed without certification. |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_256638) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_256378) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| Approvals |  |
| ROHS | Conform |
