Özellikler
| Version | Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase |
| Order No. | 2591680000 |

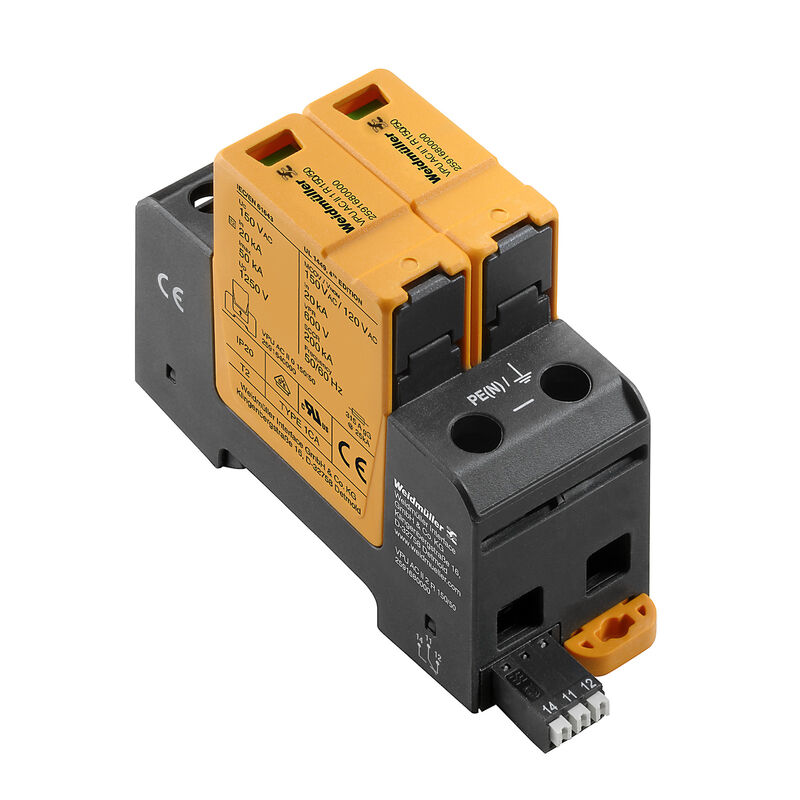

| Type | VPU AC II 2 R 150/50 |
| GTIN (EAN) | 4050118599268 |
| Qty. | 1 adet |
| Depth | 68 mm |
| Depth (inches) | 2,677 inch |
| Depth including DIN rail | 76 mm |
| Height | 104,5 mm |
| Height (inches) | 4,114 inch |
| Width | 36 mm |
| Width (inches) | 1,417 inch |
| Net weight | 268 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| REACH SVHC | / |
| Ambient temperature (operational), max. | 85 °C |
| Rated Voltage UN | 120 V |
| VPR (N-PE) | 600 V |
| MCOV (L/N-PE) | 150 V |
| SCCR | 200 kA |
| In | 20 kA |
| Category | SPD TYPE 1CA |
| Ambient temperature (operational), min. | -40 °C |
| Certificate No. (cURus) | E354261 |
| MODE | all modes |
| VPR (L-N) | 1.000 V |
| VPR (L-PE) | 600 V |
| Voltage type | AC |
| UL Energy Networks | Split-Phase |
| Connection type | PUSH IN |
| Cross-section for connected wire, solid core, max. | 1,5 mm² |
| Cross-section for connected wire, solid core, min. | 0,14 mm² |
| Stripping length | 8 mm |
| Colour |
orange
black |
| Design |
Installation housing; 2TE
Insta IP 20 |
| Operating altitude | ≤ 4000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 in installed state |
| Rail | TS 35 |
| Segment | Power distribution |
| UL 94 flammability rating | V-0 |
| Version |
Surge protection
with remote contact |
| Pollution severity | 2 |
| Surge voltage category | III |
| Combined pulse UOC | 6 kV |
| Discharge current (type III) | 3 kA |
| Discharge current Imax (8/20µs) wire-PE | 50 kA |
| Discharge current In (8/20µs) wire-PE | 20 kA |
| Energy coordination (≤10 m) |
Type II
Type III |
| Follow-on current extinguishing capability Ifi | Follow current need not be taken into account |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse |
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr 315 A gG @25 kA Isccr |
| Leakage current at Un | 0,4 mA |
| Low voltage network | Single-phase |
| Mains voltage | 120 V / 240 V |
| Max. continuous voltage, Uc (AC) | 150 V |
| Number of poles | 2 |
| Protection level Up at IN (L/N-PE) | ≤ 1.25 kV |
| Rated voltage (AC) | 120 V |
| Requirements category acc. to IEC 61643-11 |
Type II
Type III |
| Requirements class, acc. to EN 61643-11 |
T2
T3 |
| Response time | ≤ 25 ns |
| Short-circuit current rating ISCCR | 50 kA |
| Signalling contact | 250 V 1A 1CO |
| SPD type | T2 |
| Standards |
IEC61643-11, EN61643-11
UL 1449 |
| Temporary surge voltage (over-voltage) - TOV | 229 V |
| Voltage type | AC |
| Stripping length | 15 mm |
| Wire connection method | Screw connection |
| Type of connection | Screw connection |
| Stripping length, rated connection | 15 mm |
| Tightening torque, min. | 2 Nm |
| Tightening torque, max. | 4,5 Nm |
| Clamping range, rated connection | 16 mm² |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 35 mm² |
| Wire cross-section, solid, min. | 1,5 mm² |
| Wire cross-section, solid, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Time interval | 5 years |
| Product information | For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_80488) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_88000) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2591680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2591680000) |
| Tender specification |
[Ausschreibungstext DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_179607)
[Tenderspecification EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_179608) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_90755) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E354261 |
