Özellikler

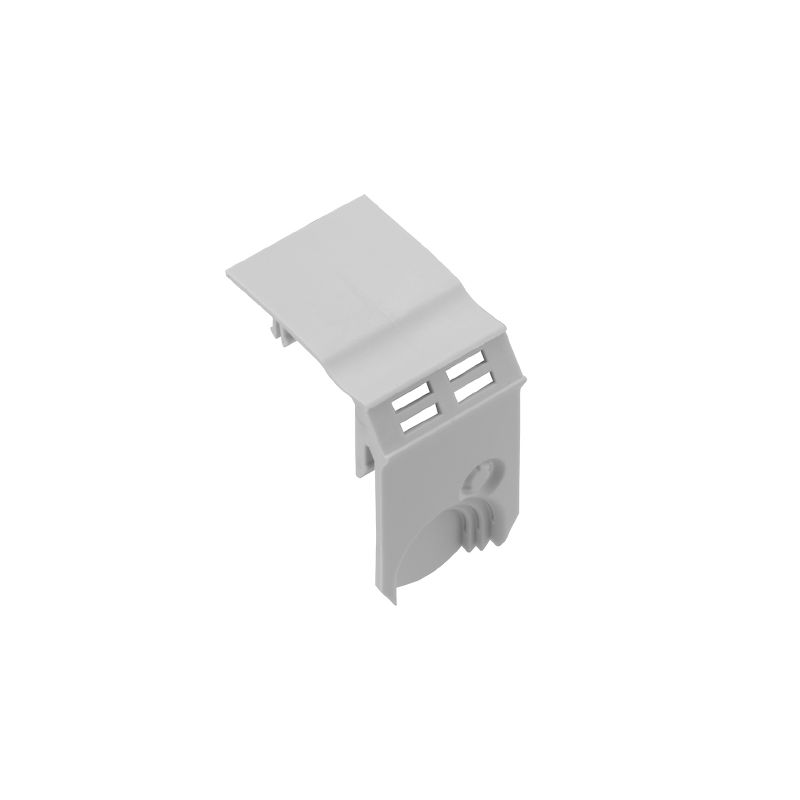

| Version | Cover hood (terminal), Wemid |
| Order No. | 2503370000 |
| Type | WPDPC X31 GY |
| GTIN (EAN) | 4050118533330 |
| Qty. | 20 adet |
| Depth | 57,7 mm |
| Depth (inches) | 2,272 inch |
| Height | 25,05 mm |
| Height (inches) | 0,986 inch |
| Width | 21,6 mm |
| Width (inches) | 0,85 inch |
| Net weight | 2,226 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | Light Grey |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Levels cross-connected internally | No |
| Explosion-tested version | No |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39847) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2503370000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2503370000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:2874580000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, Light Grey, blue, 95 mm², 232 A, 1000 V, Number of connections: 6, Number of levels: 1, TS 35, Mounting plate, V-0, Wemid
-
Ürün No.:2502710000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, blue, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2874600000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, Light Grey, green, 95 mm², 232 A, 1000 V, Number of connections: 6, Number of levels: 1, TS 35, Mounting plate, V-0, Wemid
-
Ürün No.:2502720000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, green, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2874570000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, Light Grey, black, 95 mm², 232 A, 1000 V, Number of connections: 6, Number of levels: 1, TS 35, Mounting plate, V-0, Wemid
-
Ürün No.:2502690000Ambalaj birimi:2 adet
Potential distributor terminal, Screw connection, black, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2502680000Ambalaj birimi:2 adet
Potential distributor terminal, Screw connection, brown, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2874590000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, Light Grey, brown, 95 mm², 232 A, 1000 V, Number of connections: 6, Number of levels: 1, TS 35, Mounting plate, V-0, Wemid
-
Ürün No.:2502660000Ambalaj birimi:2 adet
Potential distributor terminal, Screw connection, blue, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2502740000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, black, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2502730000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, brown, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2502670000Ambalaj birimi:2 adet
Potential distributor terminal, Screw connection, green, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2874560000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, Light Grey, 95 mm², 232 A, 1000 V, Number of connections: 6, Number of levels: 1, TS 35, Mounting plate, V-0, Wemid
-
Ürün No.:2503090000Ambalaj birimi:2 adet
Potential distributor terminal, Screw connection, Light Grey, 95 mm², 232 A, 1000 V, Number of connections: 1, Number of levels: 1, TS 35, V-0, Wemid
-
Ürün No.:2502700000Ambalaj birimi:1 adet
Potential distributor terminal, Screw connection, Light Grey, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1, TS 35, V-0, Wemid
