Özellikler

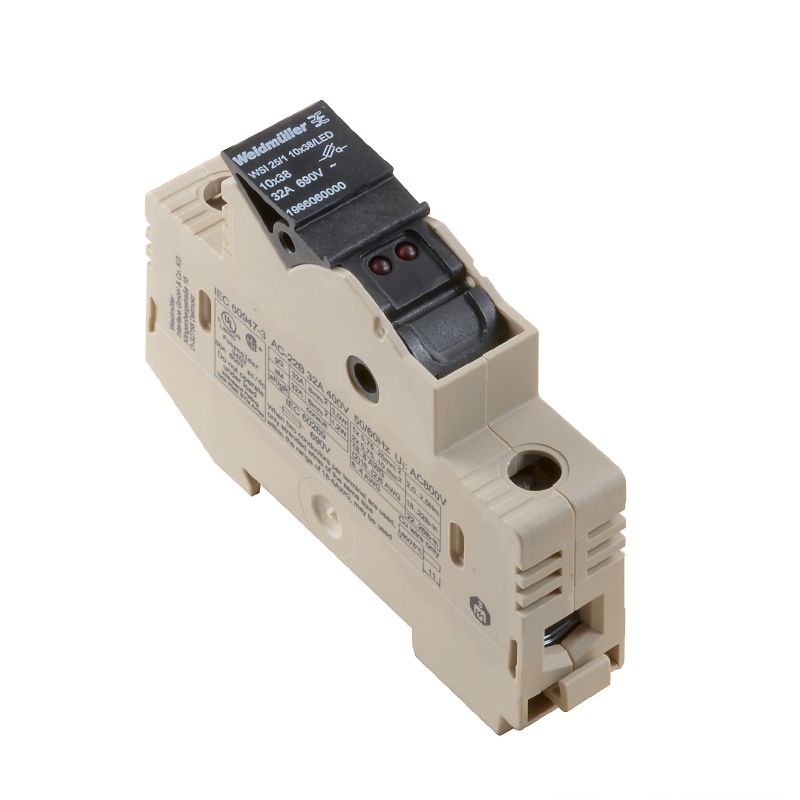

| Version | Fuse terminal, Screw connection, dark beige, 25 mm², 32 A, 690 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, PA 66/6, max. 3W for gG/gL max. 1.2W for aM |
| Order No. | 1966060000 |
| Type | WSI 25/1 10X38/LED 690V |
| GTIN (EAN) | 4032248658114 |
| Qty. | 12 adet |
| Depth | 58 mm |
| Depth (inches) | 2,283 inch |
| Height | 81 mm |
| Height (inches) | 3,189 inch |
| Width | 18 mm |
| Width (inches) | 0,709 inch |
| Net weight | 51,333 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66/6 |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
Fuse cartridge with LED in closed state |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0,75 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 10 mm² |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Clampable conductor |
|
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Stripping length | 11 mm |
| Tightening torque, max. | 2,5 Nm |
| Tightening torque, min. | 2 Nm |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1,5 mm² |
| Wire connection cross-section, solid core, max. | 25 mm² |
| Wire connection cross-section, solid core, min. | 1,5 mm² |
| Certificate No. (CSA) | 238018-1868186 |
| Wire cross section max. (CSA) | 3 AWG |
| Wire cross section min. (CSA) | 18 AWG |
| TS 35 offset | 40,5 mm |
| Cartridge fuse | max. 3W for gG/gL max. 1.2W for aM |
| Rail | TS 35 |
| Standards | IEC 60947-7-3 |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Rated cross-section | 25 mm² |
| Rated voltage | 690 V |
| Rated voltage to adjoining terminal | 690 V |
| Rated DC voltage | 690 V |
| Rated current | 32 A |
| Current at maximum wires | 32 A |
| Standards | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x | 0,32 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 3,23 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Product information | The voltage depends on the selected fuse element or the selected indicator light |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37335)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284530) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65408) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1966060000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1966060000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000899 |
| ETIM 7.0 | EC000899 |
| ETIM 8.0 | EC000899 |
| ETIM 9.0 | EC000899 |
| ECLASS 9.0 | 27-14-11-16 |
| ECLASS 9.1 | 27-14-11-16 |
| ECLASS 10.0 | 27-14-11-16 |
| ECLASS 11.0 | 27-14-11-16 |
| ECLASS 12.0 | 27-14-11-16 |
| ECLASS 13.0 | 27-25-01-13 |
| ECLASS 14.0 | 27-25-01-13 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E175322 |
