Özellikler

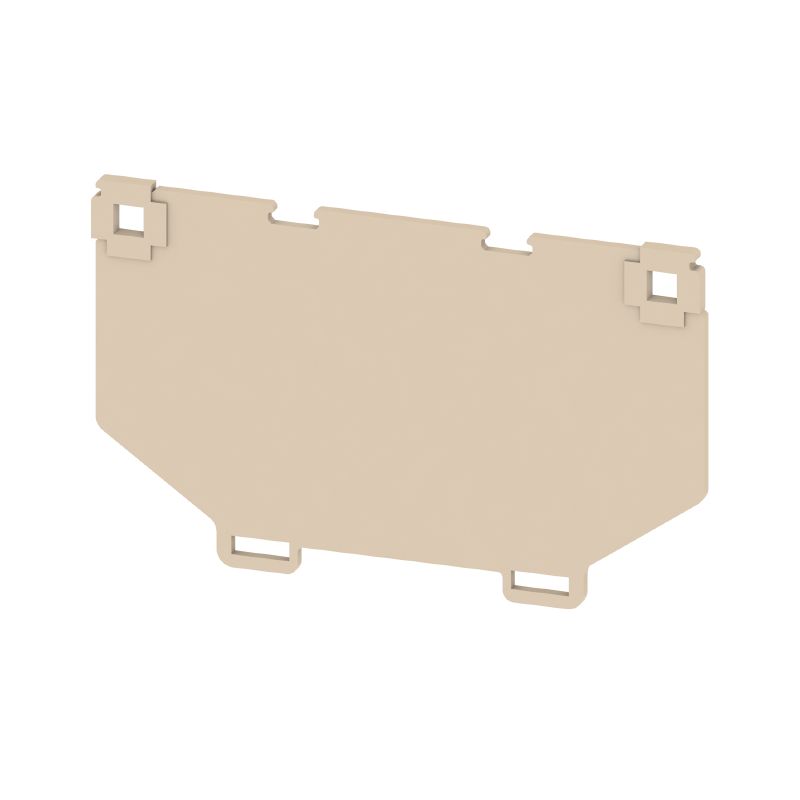

| Version | Bolt-type screw terminals, Partition plate, dark beige, 3 mm |
| Order No. | 1780900000 |
| Type | WTW WF8 |
| GTIN (EAN) | 4032248219384 |
| Qty. | 20 adet |
| Depth | 66,95 mm |
| Depth (inches) | 2,636 inch |
| Height | 109,8 mm |
| Height (inches) | 4,323 inch |
| Width | 3 mm |
| Width (inches) | 0,118 inch |
| Mounting dimension - width | 2 mm |
| Net weight | 9,504 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | End and intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Certificate No. (cURus) | E60693 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63659) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1780900000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1780900000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
aksesuarıdır
-
Ürün No.:1319060000Ambalaj birimi:25 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 50 mm², Threaded stud connection
-
Ürün No.:1968960000Ambalaj birimi:25 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 50 mm², Threaded stud connection
-
Ürün No.:1780860000Ambalaj birimi:25 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 50 mm², Threaded stud connection
-
Ürün No.:1789780000Ambalaj birimi:25 adet
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 50 mm², Threaded stud connection
Terminal BlocksUniversal rangeStud technologyWF/WFF-Series1 Stud50 mm²
Terminal BlocksUniversal rangeStud technologyWF/WFF-Series2 Studs50 mm²
