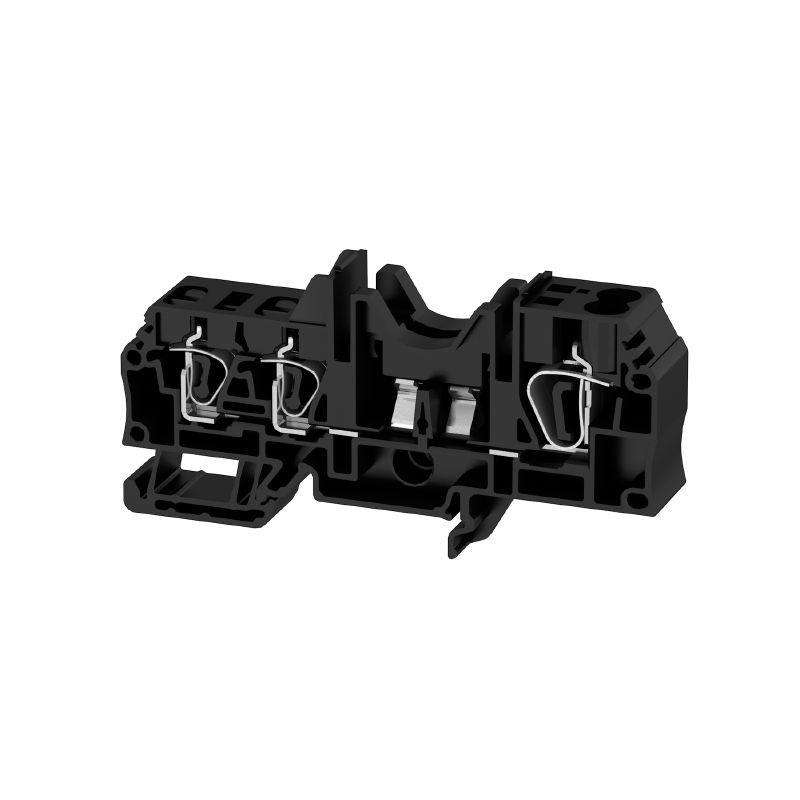

ZSI 2X6/4X2.5

Z-series, Fuse terminal, Rated cross-section: 6 mm², Tension-clamp connection

Ürün No. 1265990000

Özellikler

General ordering data

Version	Z-series, Fuse terminal, Rated cross-section: 6 mm², Tension-clamp connection
Order No.	1265990000
Type	ZSI 2X6/4X2.5
GTIN (EAN)	4050118127874
Qty.	10 adet

Dimensions and weights

Depth	47 mm
Depth (inches)	1,85 inch
Depth including DIN rail	47,5 mm
Height	93 mm
Height (inches)	3,661 inch
Width	16 mm
Width (inches)	0,63 inch
Net weight	35,1 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	black
UL 94 flammability rating	V-0

System specifications

Version	Tension-clamp connection Without LED for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	3
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Type of mounting

Snap-on

Conductors for clamping (additional connection)

Blade size, additional connection	0.6 x 3.5 mm
Clamping range, further connection, max.	4 mm²
Clamping range, further connection, min.	0,5 mm²
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	2,5 mm²
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min.	0,5 mm²
Conductor cross-section, flexible, further connection, min.	0,5 mm²
Connection direction	top
Connection type, additional connection	Tension-clamp connection
Cross-section for connected wire, AWG, additional connection, max.	AWG 12
Cross-section for connected wire, AWG, additional connection, min.	AWG 26
Cross-section for connected wire, flexible, further connection, max.	4 mm²
Cross-section for connected wire, solid-core, further connection, max.	4 mm²
Cross-section for connected wire, solid-core, further connection, min.	0,5 mm²
Number of connections, additional connection	4
Rated cross-section, further connection	2,5 mm²
Stripping length , additional connection	10 mm

Conductors for clamping (rated connection)

Blade size	0.8 x 4.0 mm
Clamping range, max.	10 mm²
Clamping range, min.	0,5 mm²
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	0,5 mm²
Connection direction	top
Gauge to IEC 60947-1	A5
Number of connections	2
Stripping length	10 mm
Type of connection	Tension-clamp connection
Type of connection 2	Tension-clamp connection
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	10 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

CSA rating data

Certificate No. (CSA)	200039-1152829
Current size B (CSA)	23 A
Current size C (CSA)	23 A
Voltage size B (CSA)	600 V
Voltage size C (CSA)	600 V
Wire cross section max. (CSA)	8 AWG
Wire cross section min. (CSA)	20 AWG

Display element

Type of voltage for indicator

AC/DC

Fuse terminals

Cartridge fuse	mini fuse
Operating voltage, max.	250 V
Type of voltage for indicator	AC/DC

General

Rail

TS 35

Rating data

Rated cross-section	6 mm²
Rated voltage	500 V
Rated voltage to adjoining terminal	500 V
Rated DC voltage	500 V
Rated current	57 A
Volume resistance according to IEC 60947-7-x	0,78 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	1,31 W
Pollution severity	3

UL rating data

Certificate No. (cURus)	E60693
Current size B (cURus)	20 A
Current size C (cURus)	20 A
Current size D (cURus)	5 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V
Voltage size D (cURus)	600 V
Wire cross section max. (cURus)	8 AWG
Wire cross section min. (cURus)	20 AWG

Important note

Product information

The voltage depends on the selected fuse element or the selected indicator light

Downloads

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36915) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284534) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224756)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1265990000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1265990000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1265990000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000899
ETIM 7.0	EC000899
ETIM 8.0	EC000899
ETIM 9.0	EC000899
ECLASS 9.0	27-14-11-16
ECLASS 9.1	27-14-11-16
ECLASS 10.0	27-14-11-16
ECLASS 11.0	27-14-11-16
ECLASS 12.0	27-14-11-16
ECLASS 13.0	27-25-01-13
ECLASS 14.0	27-25-01-13

Approvals

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
