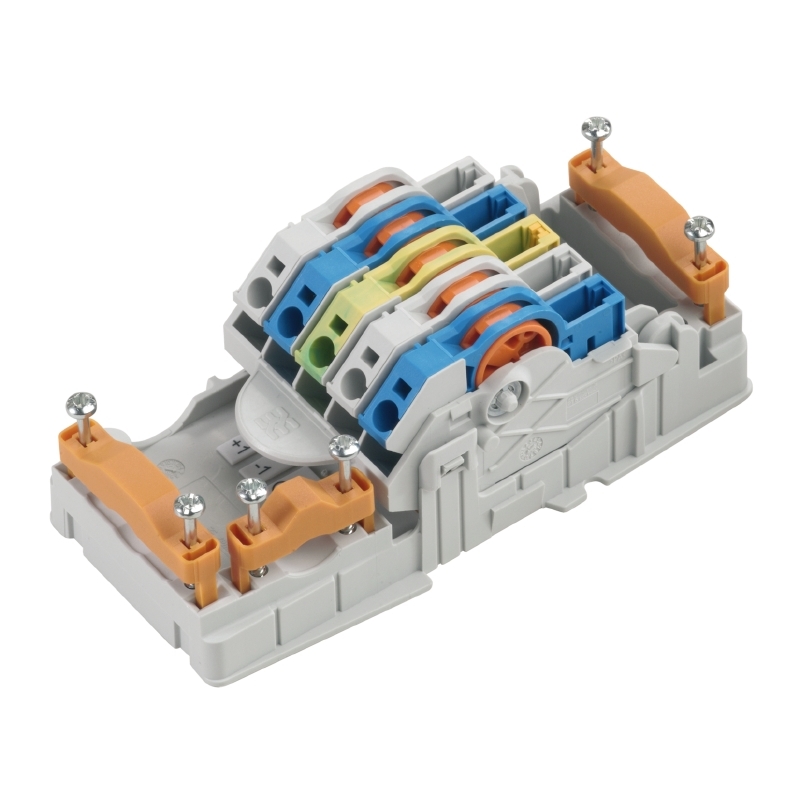

Élément de contact FieldPower®, DC, IP20, Raccordement à déplacement d'isolant (IDC), PUSH IN, Nombre de pôles (texte): 5

Produkt ID 1126840000
Download datablad Engineering Support Product Downloads
Tilbehør 8 Er tilbehør til 19 Enkeltdele 1 Enkeltdel til 5 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Clamping capacity Общие данные Rated data acc. to IEC Rated data acc. to UL Klasyfikacje

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Élément de contact FieldPower®, DC, IP20, Raccordement à déplacement d'isolant (IDC), PUSH IN, Nombre de pôles (texte): 5
Order No.
1126840000
Type
PT6 DC
GTIN (EAN)
4032248908462
Qty.
1 Styk

Dimensions and weights

Depth
54 mm
Profondeur (pouces)
2,126 inch
Height
139,5 mm
Wysokość (cale)
5,492 inch
Width
61,5 mm
Width (inches)
2,421 inch
Net weight
191,15 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...55 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Clamping capacity

Connection data - contact element power bus
  • Wire connection method:
    Insulation displacement connection (IDC)
  • Blade size of operating tool:
    0.6 x 3.5 mm
  • Number of poles:
    5
  • Conductor connection cross-section, solid, max.:
    6 mm²
  • Conductor connection cross-section, solid, min.:
    1,5 mm²
  • Conductor connection cross-section, stranded, max.:
    6 mm²
  • Conductor connection cross-section, stranded, min.:
    2,5 mm²
  • Conductor connection cross-section, finely stranded, max.:
    6 mm²
  • Conductor connection cross-section, finely stranded, min.:
    2,5 mm²
  • Number of poles:
    5
Connection data - contact element Branch / Feed-in
  • Wire connection method:
    PUSH IN
  • Blade size of operating tool:
    0.6 x 3.5 mm
  • Number of poles:
    5
  • Conductor connection cross-section, solid, max.:
    6 mm²
  • Conductor connection cross-section, solid, min.:
    0,5 mm²
  • Conductor connection cross-section, stranded, max.:
    6 mm²
  • Conductor connection cross-section, stranded, min.:
    0,5 mm²
  • Conductor connection cross-section, finely stranded, max.:
    10 mm²
  • Conductor connection cross-section, finely stranded, min.:
    0,5 mm²
  • Conductor connection cross-section, finest stranded, max.:
    6 mm²
  • Number of poles:
    5
  • Conductor connection cross-section, finest stranded, min.:
    0,5 mm²
  • Conductor connection cross-section with wire end ferrule:
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0,5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      12 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0,5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0,5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      8 mm with plastic collar
    • Standard:
      DIN 46228/4
    • Cross-section, min.:
      0,5 mm²
    • Cross-section, max.:
      6 mm²
    • Type of wire end ferrule:
      Twin wire-end ferrules
    • Cross-section, min.:
      0,5 mm²
    • Cross-section, max.:
      6 mm²

Общие данные

Insulating material
Polyamid
Silicone
No
Colour
grey
Protection degree
IP20
UL 94 flammability rating
V-0
Can be coded
Yes
Coded on PE
Voltage type
DC
Number of poles
5
Number of connections / pole
1
Wire connection method
Insulation displacement connection (IDC)
PUSH IN
Type of connection 2
FieldPower® plug PTS 4, PTDS4

Rated data acc. to IEC

Rated data acc. to IEC for contact element
  • Voltage type:
    DC
  • Number of phases:
    3
  • Standard:
    IEC 60947-7-1, IEC 60947-7-2
  • Rated voltage:
    800 V
  • Rated impulse withstand voltage:
    8 kV
  • Rated current (3 loaded poles):
    41 A
  • Rated current (4 loaded poles):
    25 A

Rated data acc. to UL

Rated data acc. to UL for contact element
  • Standard:
    UL 1059
  • Note:
    K použití s kabely TC-ER uvedenými v UL
  • Průřez připojení vodičů, AWG, max.:
    AWG 10
  • Leiteranschlussquerschnitt, AWG, min.:
    AWG 14
  • Rated voltage:
    600 V
  • Rated current:
    30 A

Klasyfikacje

ETIM 8.0
EC002498
ETIM 9.0
EC002498
ETIM 10.0
EC002498
ECLASS 14.0
27-14-25-90
ECLASS 15.0
27-14-25-90
