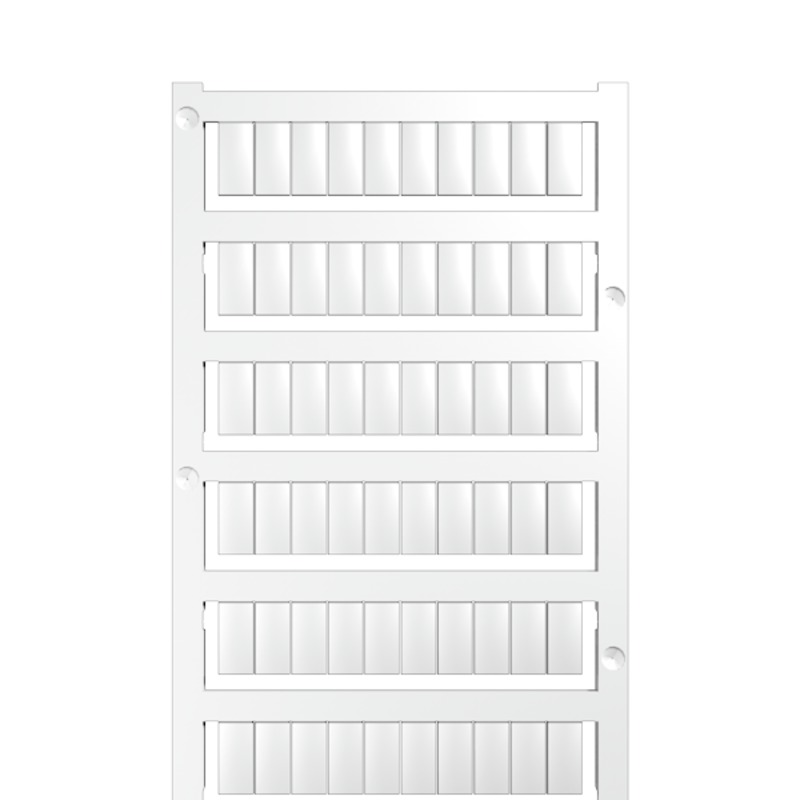

Product image
WS 12/6 MC NE WS 5CRDX120
WS 12/6 MC NE WS 5CRDX120
Drawing

WS 12/6 MC NE WS 5CRDX120

WS, Terminal marker, 12 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, white

Tuotteen tunnus 1609900000
Lataa tietosivu Engineering Support Product Downloads
On lisävaruste 265 Samankaltaiset tuotteet 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connector markers Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
WS, Terminal marker, 12 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, white
Best.-Nr.
1609900000
Art
WS 12/6 MC NE WS
GTIN (EAN)
4008190203467
Qty.
600 items

Dimensions and weights

Höhe
12 mm
Height (inches)
0,472 inch
Breite
6 mm
Width (inches)
0,236 inch
Net weight
0,163 g

Temperatures

Einsatztemperaturbereich
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.001 kg CO2eq.

General data

Applicazione / Produttore
Weidmueller
Allen-Bradley
Basic material
poliamid 66
Colour
biały
Halogen
Nie
Impresora compatible
[PRINTJET CONNECT](~/p/2715590000)
Jelölők száma kombinációnként
1 MultiCard = Маркировка клеммы
Material colour according to resistance code
9
Number of markers per packaging unit
  • Leveransform:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Printed characters
neutral
UL 94 flammability rating
V-2
Width
6 mm

Connector markers

Pitch in mm (P)
6 mm

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
