特性

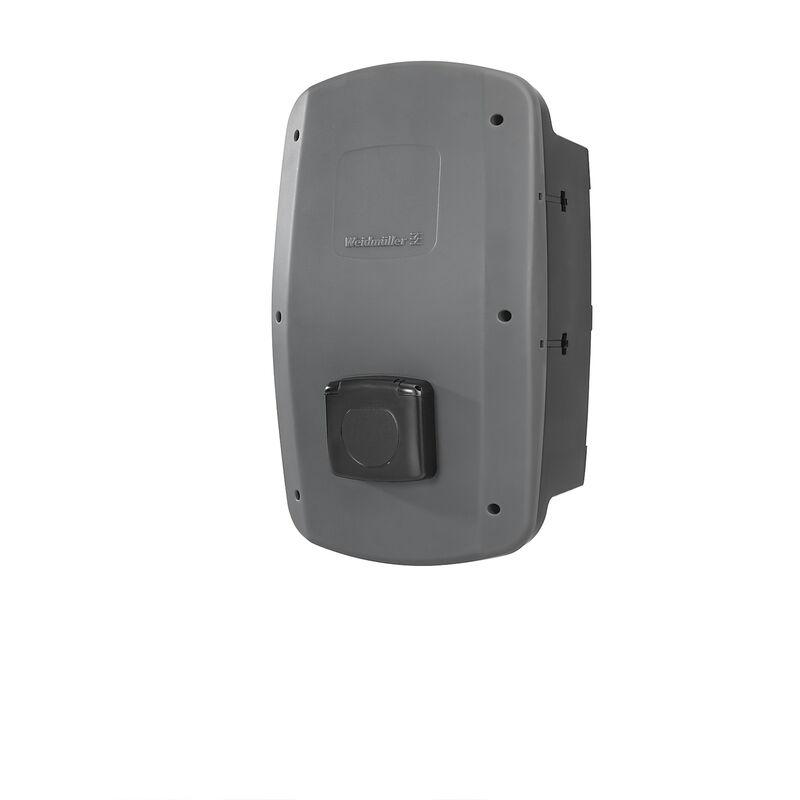

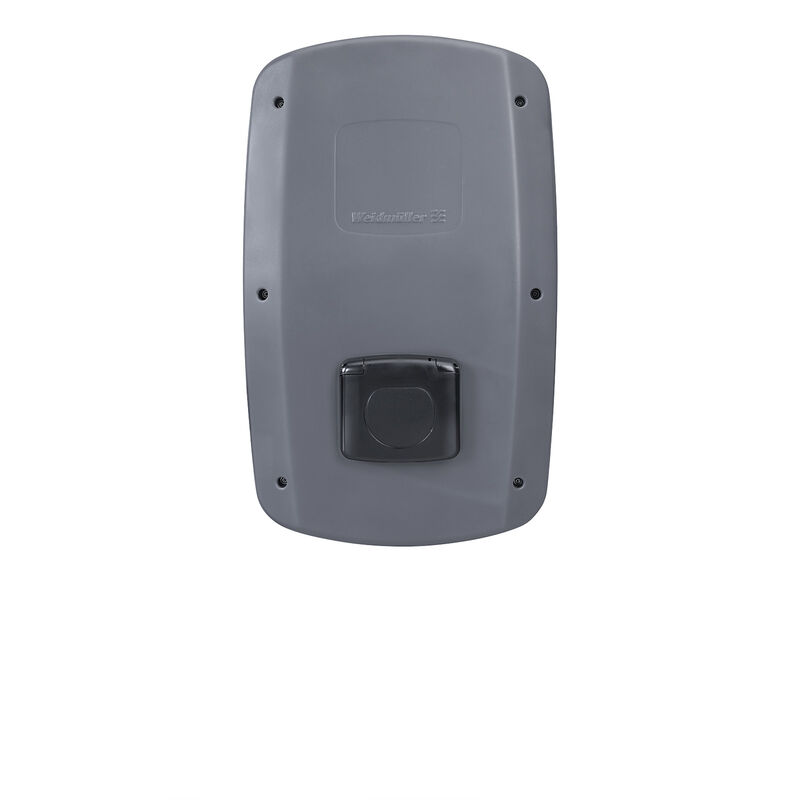

| 版本 | Wallbox, 1 相 (230 V) 电网连接时的最大充电能力为 7.4 kW，最大电流 32 A, 2 型插座, 移动应用程序 |
| 订货号 | 2875200000 |
| 类型 | CH-W-S-A7.4-S-E |
| GTIN (EAN) | 4064675650768 |
| 数量 | 1 PC |
| 深 | 167 mm |
| 深度 (英寸) | 6.575 inch |
| 高度 | 433 mm |
| 高度 (英寸) | 17.047 inch |
| 宽度 | 268 mm |
| 宽度 (英寸) | 10.551 inch |
| 净重 | 3,600 g |
| 存储温度 | -40 °C...70 °C |
| 工作温度 | -30 °C...50 °C |
| 湿度 | 5 - 95% 相对湿度 |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | d677010f-3c13-4196-b022-f62e8f2ef6a2 |
| RoHS 合规状态 | 合规，有例外 |
| RoHS 豁免（如适用/已知） | 7a, 7cI |
| 最低存放温度. | -40 °C |
| 最低操作温度 | -30 °C |
| 最大储存相对湿度 | 95 % |
| 最高存放温度 | 70 °C |
| 最高操作温度 | 50 °C |
| ROHS | 一致 |
| 核准 |
IEC 61851-1
IEC 61851-21-2 EN 62368-1 EN 55011 IEC 62196-1 IEC 62196-2 EN 50620 EN 301 489-1 EN 301 908-1 EN 301 511 EN 300 328 EN 300 330 v.2.1.1 |
| 认证/证书/一致性声明 |
[CE declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_293665)
[Warranty Weidmüller e-mobility products](https://mdcop.weidmueller.com/mediadelivery/asset/900_311435) [Gewährleistung Weidmüller e-mobility Produkte](https://mdcop.weidmueller.com/mediadelivery/asset/900_311436) [Self declaration test certificates AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_311494) [Selbsterklärung Testzertifikate AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_311495) |
| 工程数据 |
[Installationsvideo AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_269640)
[Installation Video AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_274236) [AC SMART Modbus registers](https://mdcop.weidmueller.com/mediadelivery/asset/900_293656) [Application notes -- Use of an external Modbus TCP/RTU tag list (DE, EN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_301824) [3D Model AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_313535) |
| 软件 |
[Firmware -- Current Bluetooth Firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293013)
[Firmware -- Current Firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293014) [Firmware -- Current WiFi Firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293015) [Firmware -- Archive Firmware files AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293016) [Firmware -- Release notes Current firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293638) [Firmware -- Combined Firmware Package AC SMART (Firmware Version 01.05.00 or newer)](https://mdcop.weidmueller.com/mediadelivery/asset/900_314433) [Firmware -- Current Firmware AC SMART (EN, FI, SV)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317467) [Firmware -- Current Firmware AC SMART (EN, ES)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317474) |
| 技术文档 | [Abnahmeprotokoll AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_278407) |
| 招标规格 |
[Ausschreibungstext](https://mdcop.weidmueller.com/mediadelivery/asset/900_290337)
[Tender text](https://mdcop.weidmueller.com/mediadelivery/asset/900_290351) |
| 用户文档 |
[Broschüre Wallbox AC SMART, AC Ladekabel, Basiskomponenten](https://mdcop.weidmueller.com/mediadelivery/asset/900_269720)
[Brochure EV charging box AC SMART, AC charging cables, Basic components](https://mdcop.weidmueller.com/mediadelivery/asset/900_269721) [MANUAL_AC SMART (SV)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304027) [MANUAL_AC SMART (CS)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304028) [MANUAL_AC SMART (HU)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304165) [MANUAL_AC SMART (PL)](https://mdcop.weidmueller.com/mediadelivery/asset/900_319944) [MANUAL_AC SMART (TR)](https://mdcop.weidmueller.com/mediadelivery/asset/900_319945) [Instructionsheet_AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_281463) [MANUAL_AC SMART (DE)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304020) [MANUAL_AC SMART (EN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304021) [MANUAL_AC SMART (FR)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304022) [MANUAL_AC SMART (IT)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304023) [MANUAL_AC SMART (ES)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304024) [MANUAL_AC SMART (NL)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304025) [MANUAL_AC SMART (NO)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304026) |
| 产品目录 | [Productcatalogue e-mobility](LINK/Catalog.html) |
| ETIM 6.0 | EC002883 |
| ETIM 7.0 | EC002883 |
| ETIM 8.0 | EC002883 |
| ETIM 9.0 | EC002883 |
| ECLASS 9.0 | 27-14-47-01 |
| ECLASS 9.1 | 27-14-47-01 |
| ECLASS 10.0 | 27-14-47-01 |
| ECLASS 11.0 | 27-14-47-01 |
| ECLASS 12.0 | 27-14-47-01 |
| ECLASS 13.0 | 27-14-47-01 |
| ECLASS 14.0 | 27-14-47-01 |
| 认证 |  |
| ROHS | 一致 |
