特性
| 版本 | 初级电流: 125 A, 最大次级电流: 5 A, 负载: 2.5 VA, 精度等级: 0.5, 已关闭电流互感器 |
| 订货号 | 2680200000 |

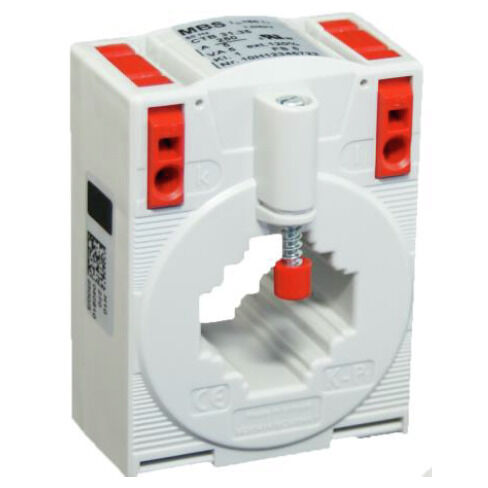

| 类型 | CMA-31-125-5A-2,5VA-0,5 |
| GTIN (EAN) | 4050118696578 |
| 数量 | 1 PC |
| 净重 | 290 g |
| REACH SVHC | / |
| RoHS 合规状态 | 符合要求 |
| 导线类型 | 仅绝缘导体 |

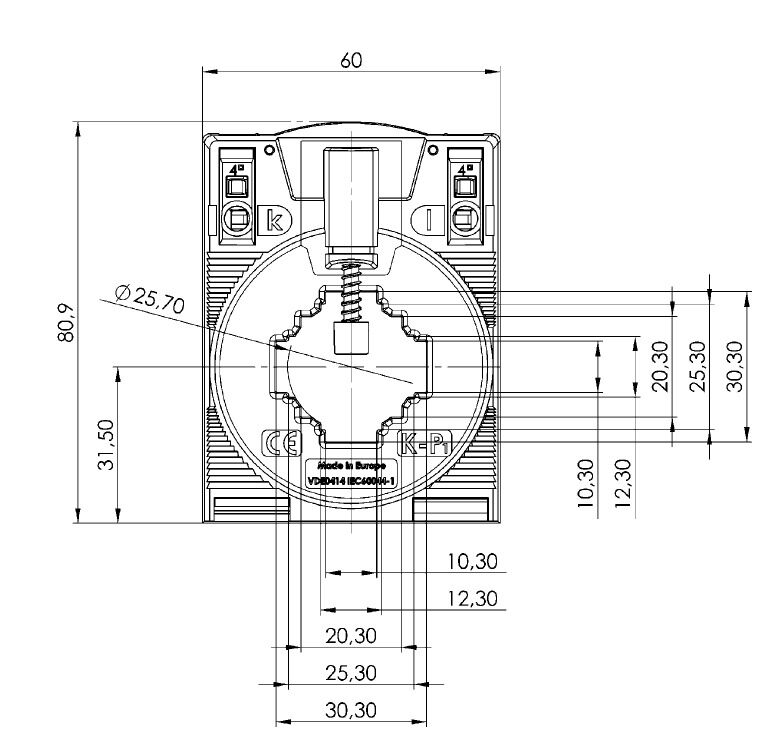

| 圆导线 | 25.7 mm |
| 导轨 |
30 x 10 mm
25 x 12 mm 20 x 20 mm |
| 安装位置 | 室内使用 |
| 初级电流 | 125 A |
| 次级电流 | 0...5 A |
| 精度等级 | 0.5 |
| 负载 | 2.5 VA |
| 厂商 | MBS AG |
| 标称频率 | 50 Hz |
| 绝缘等级 | E |
| 额定持续热电流 Ithermal | 1.2 x Inom |
| 标准 |
IEC 61869-1: 2007
IEC 61869-2: 2012 |
| 精度等级 | 0.5 |
| 认证/证书/一致性声明 |
[UL- certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_101213)
[UKCA Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_297866) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_297966) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ECLASS 14.0 | 27-21-09-02 |
| ROHS | 一致 |
