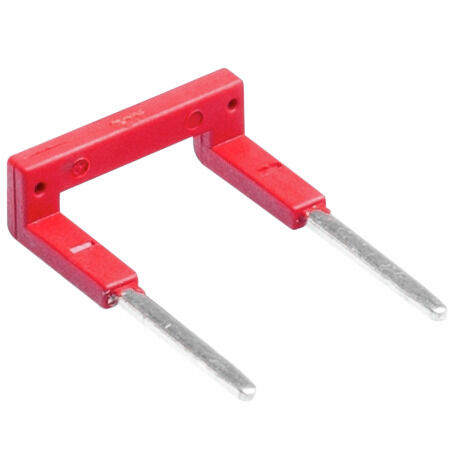

CXI CCP 2P RD
CXI CCP 2P RD

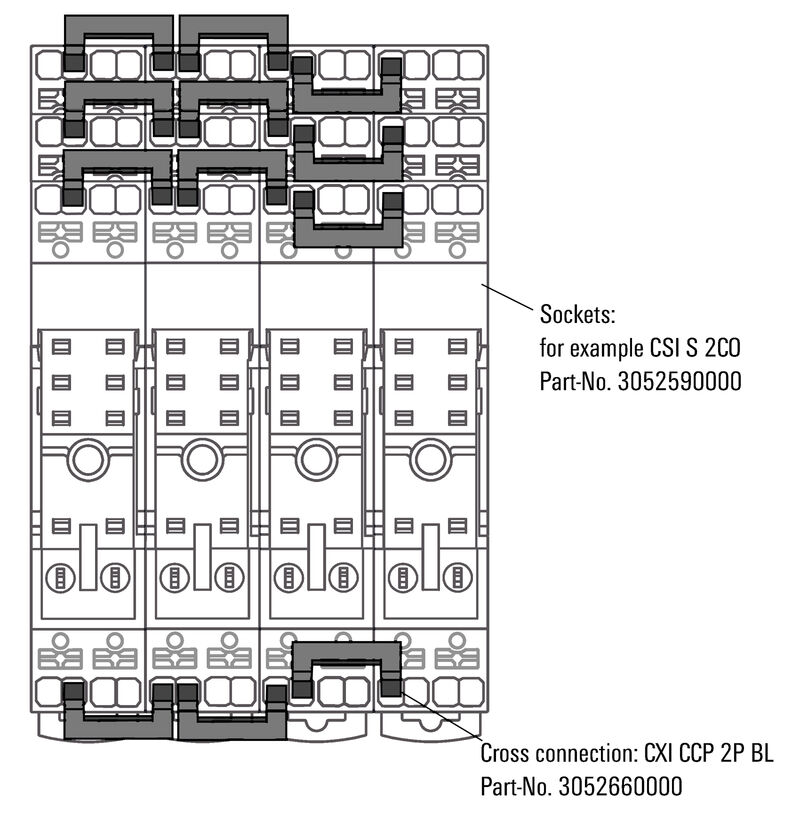

Example of use
CXI CCP 2P RD

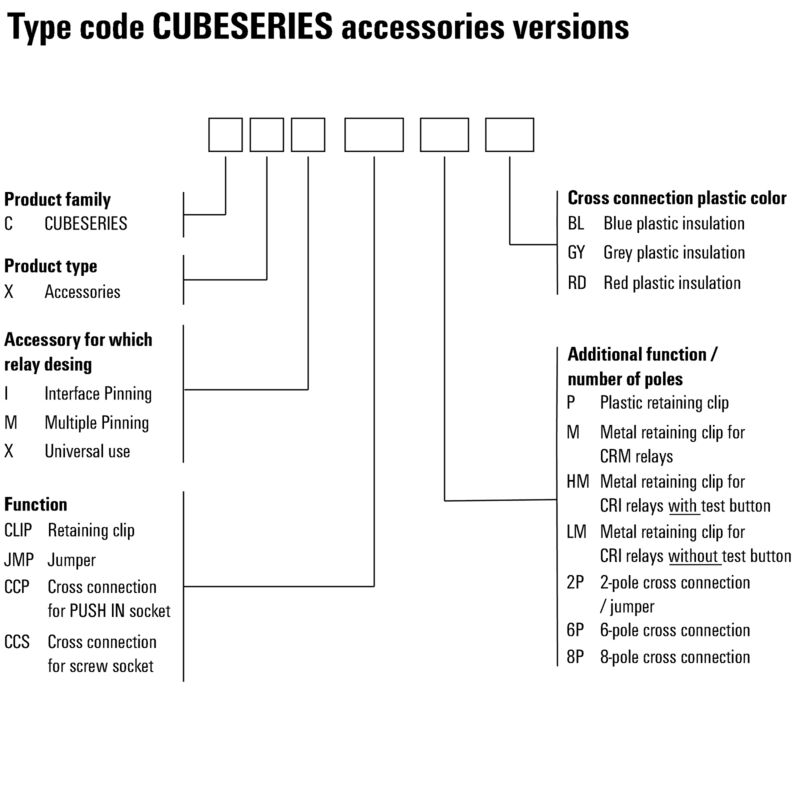

Miscellaneous

CXI CCP 2P RD

CUBESERIES, Cross-connector

Ürün No. 3052650000
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 35 İlgili ürünler 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Cross-connection data Rated data UL General data Classifications

Approvals

ROHS
Conform

General ordering data

Version
CUBESERIES, Cross-connector
Order No.
3052650000
Type
CXI CCP 2P RD
GTIN (EAN)
4099987022477
Qty.
20  adet

Dimensions and weights

Net weight
0,75  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cross-connection data

Rated current
10  A
Insulation
Yes
Touch-safe protection
Yes
Colour
red
Number of cross-connected terminals
2
Number of poles
2
Type of mounting
Plugged
Version
cannot be cut to length

Rated data UL

Rated current (UL)
10  A

General data

Version
cannot be cut to length
Colour
red

Classifications

ETIM 6.0
EC002586
ETIM 7.0
EC002586
ETIM 8.0
EC002586
ETIM 9.0
EC002586
ETIM 10.0
EC002586
ECLASS 9.1
27-37-16-92
ECLASS 10.0
27-37-16-92
ECLASS 11.0
27-37-16-92
ECLASS 12.0
27-37-16-92
ECLASS 13.0
27-37-16-92
ECLASS 14.0
27-37-16-92
ECLASS 15.0
27-37-16-92
