HDC insert, Female, 500 V, 16 A, Number of poles: 24, PUSH IN, Installation size: 8

Ürün No. 1875850000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 2 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC insert, Female, 500 V, 16 A, Number of poles: 24, PUSH IN, Installation size: 8
Order No.
1875850000
Type
HDC HE 24 FP 25-48
GTIN (EAN)
4032248466115
Qty.
1  adet

Dimensions and weights

Depth
111  mm
Depth (inches)
4,37  inch
Height
33,8  mm
Height (inches)
1,331  inch
Width
34  mm
Width (inches)
1,339  inch
Net weight
99,44  g

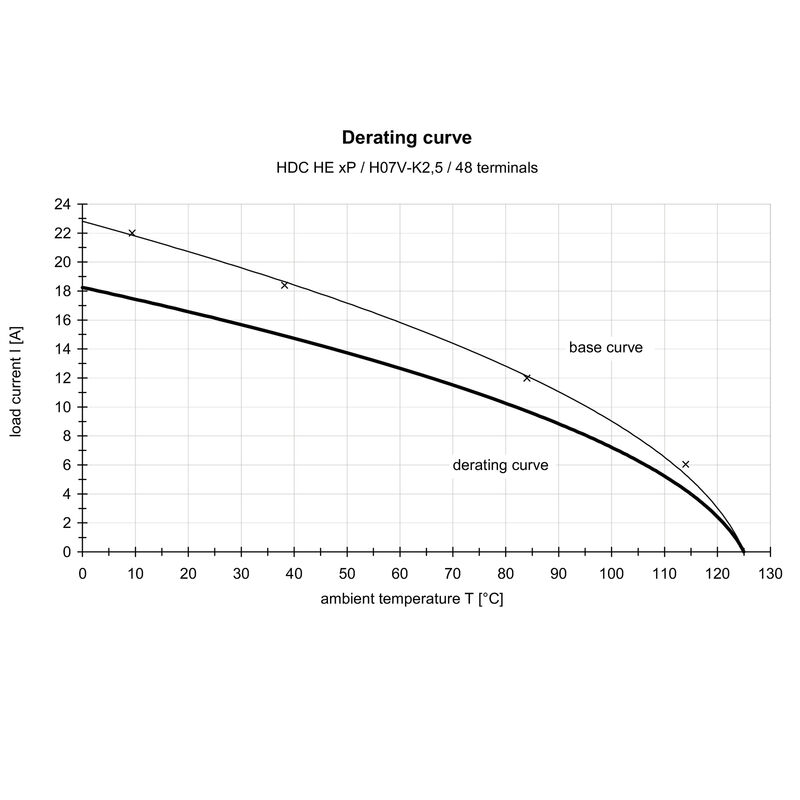

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
b67daa31-7dca-434d-8290-da7fb52f83a2
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of socket
33,8  mm
Total length base
111  mm
Width
34  mm

General data

Basic material
Copper alloy
BG
8
Colour
beige
Installation size
8
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Number of poles
24
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    19 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    16 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    12,5 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    9,8 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Rated current (DIN EN 61984)
16  A
Rated current (UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    20 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A
Rated impulse voltage (DIN EN 61984)
6  kV
Rated voltage (DIN EN 61984)
500  V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HE
Surface finish
Silver passivated
Type
Female
Type of connection
PUSH IN
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
4  mm²
Stripping length PE connection
10  mm
Tightening torque, max. PE connection
1,5  Nm
Tightening torque, min. PE connection
1,2  Nm
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20

Version

Basic material
Copper alloy
BG
8
Blade size, slotted (screw connection)
SD 0.5 x 3.0
Conductor cross-section, max.
2,5  mm²
Conductor cross-section, min.
0,5  mm²
Installation size
8
Stripping length, rated connection
10  mm
Surface finish
Silver passivated
Type of connection
PUSH IN
Volume resistance
≤2 mΩ
Wire connection cross section, finely stranded, max.
2,5  mm²
Wire connection cross section, finely stranded, min.
0,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5  mm²
Wire cross-section, solid, max.
2,5  mm²
Wire cross-section, solid, min.
0,5  mm²

Classifications

ETIM 6.0
EC000438
ETIM 7.0
EC000438
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 9.0
27-44-02-05
ECLASS 9.1
27-44-02-05
ECLASS 10.0
27-44-02-05
ECLASS 11.0
27-44-02-05
ECLASS 12.0
27-44-02-05
ECLASS 13.0
27-44-02-05
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
