HSS 3.2-9.5 EL Y13M
HSS 3.2-9.5 EL Y13M

HSS 3.2-9.5 EL Y13M

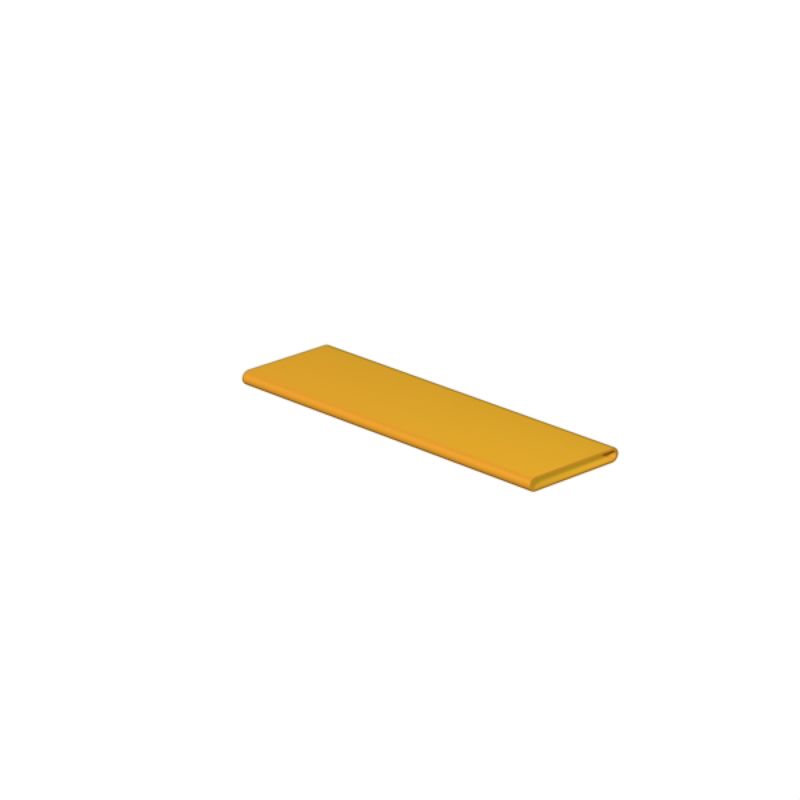

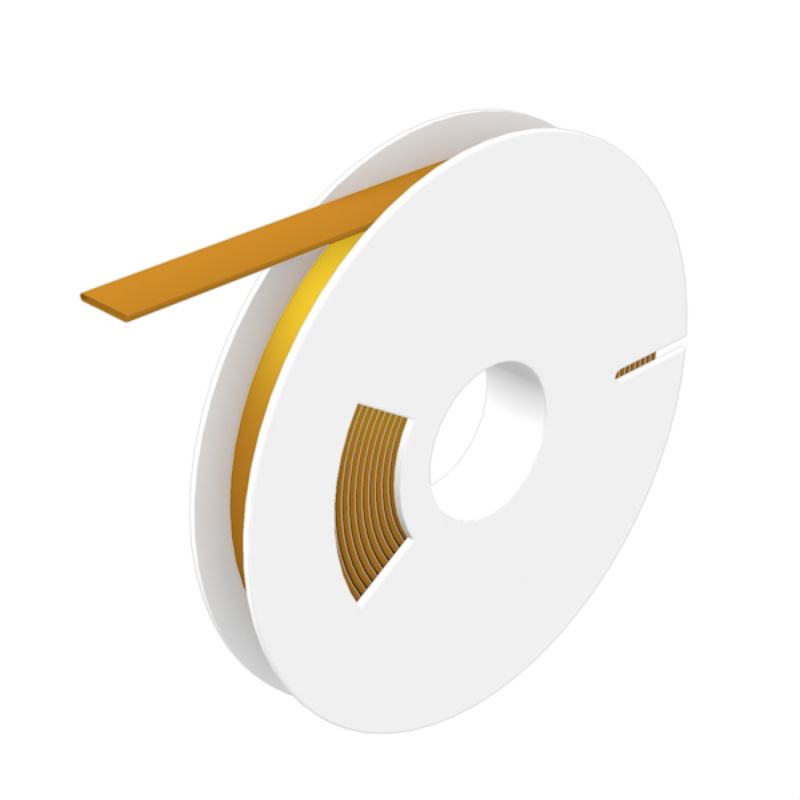

Conductor and cable markers, 3.2 - 9.5 mm, yellow

Ürün No. 1489570000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 3 İlgili ürünler 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E366310

General ordering data

Utförande
Conductor and cable markers, 3.2 - 9.5 mm, yellow
Art.nr.
1489570000
Typ
HSS 3.2-9.5 EL Y13M
GTIN (EAN)
4050118299199
Qty.
1 adet

Dimensions and weights

Djup
0,77 mm
Depth (inches)
0,03 inch
Bredd
15,1 mm
Width (inches)
0,594 inch
Längd
13 000 mm
Length (inches)
511,81 inch
Net weight
182 g

Temperatures

Temperaturområde för användning
-55...135 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefine
Colour
yellow
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
Yes
Length
13 000 mm
Operating temperature range
-55...135 °C
Operating temperature range, max.
135 °C
Operating temperature range, min.
−55 °C
Printed characters
without
Recommended industries
Plant manufacture
Energy
Device manufacturer
Machinery
Type of printing
neutral
Width
15,1 mm

Conductor and cable markers

Conductor cross-section, max.
16 mm²
Conductor O.D.
3.2 - 9.5 mm
Conductor O.D., min.
3,2 mm
Cross-section for connected wire
4 - 16 mm²
Rate of shrinkage
3:1
Recommended shrinking temperature
90 °C
Text field height
14,9 mm
Text field width
0 mm
卤素
Yes
最大电缆外径
9,5 mm
最小压接面积
4 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
